Assessing deepSSF trajectories

Author

Affiliation

Scott Forrest

Queensland University of Technology, CSIRO

Abstract

Now that we have generated trajectories using the deepSSF_simulations.ipynb script, we can check how well they capture different aspects of the observed data. This includes looking at the distribution of step lengths and turning angles, as well as comparing the observed and simulated trajectories in terms of the environmental covariates. We could also further summarise the trajectories using path-level summaries following a similar approach.

Loading packages

options(scipen = 999)

library(tidyverse)
packages <- c("amt", "sf", "terra", "beepr", "tictoc", "viridis",
              "scales", "ggpubr", "zoo")
walk(packages, require, character.only = T)

Reading in the environmental covariates

ndvi <- rast("mapping/cropped rasters/ndvi_GEE_projected_watermask20230207.tif")
canopy_cover <- rast("mapping/cropped rasters/canopy_cover.tif")
veg_herby <- rast("mapping/cropped rasters/veg_herby.tif")
slope <- rast("mapping/cropped rasters/slope_raster.tif")

# change the names (these will become the column names when extracting
# covariate values at the used and random steps)
names(ndvi) <- rep("ndvi", terra::nlyr(ndvi))
names(canopy_cover) <- "canopy_cover"
names(veg_herby) <- "veg_herby"
names(slope) <- "slope"

# for ggplot (and arbitrary index)
ndvi_df <- as.data.frame(ndvi[[1]], xy = TRUE)
# create discrete breaks for the NDVI for plotting
ndvi_quantiles <- quantile(ndvi_df$ndvi, probs = c(0.01, 0.99))
ndvi_breaks <- seq(ndvi_quantiles[1], ndvi_quantiles[2], length.out = 9)
ndvi_df$ndvi_discrete <- cut(ndvi_df$ndvi, breaks=ndvi_breaks, dig.lab = 2)

Import observed buffalo data

buffalo <- read_csv("data/buffalo_clean.csv")

Rows: 115776 Columns: 4
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
dbl  (3): x_, y_, id
dttm (1): t_

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.

attr(buffalo$t_, "tzone") <- "Australia/Queensland"

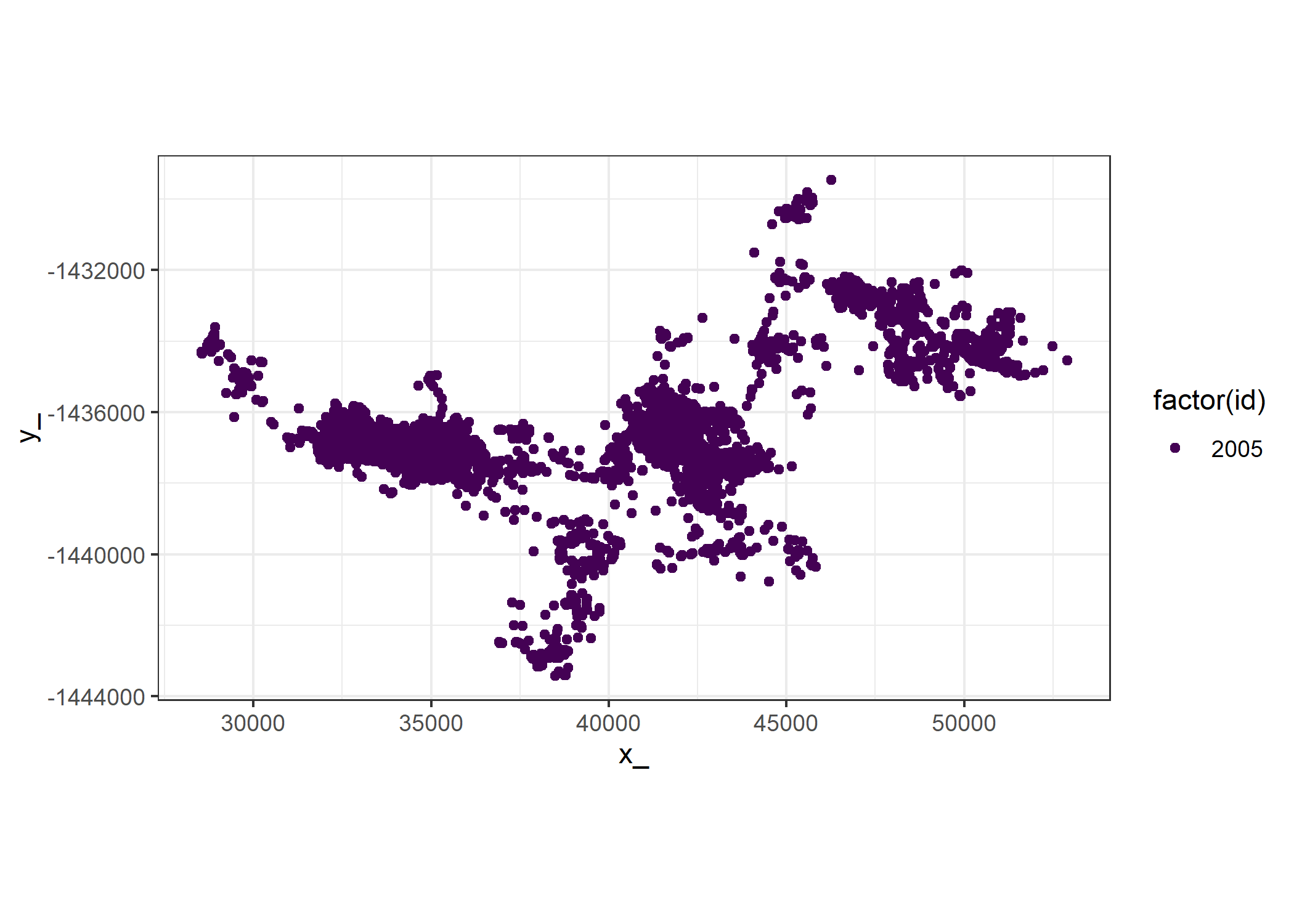

# plot the data of the buffalo that the deepSSF model was trained with
ggplot() +
  geom_point(data = buffalo |> filter(id == 2005),
            aes(x = x_, y = y_, colour = factor(id))) +
  scale_colour_viridis_d() +
  coord_equal() +
  theme_bw()

Calculate step info

hourly_lag <- 1

buffalo <- buffalo %>% mutate(
  id = id,
  x1 = x_,
  y1 = y_,
  x2 = lead(x1, n = hourly_lag, default = NA),
  y2 = lead(y1, n = hourly_lag, default = NA),
  t1 = t_,
  t2 = lead(t1, n = hourly_lag, default = NA),
  time_diff = c(NA, diff(t_)/60), # time difference in minutes
  hour_t1 = lubridate::hour(t_),
  hour_t2 = lead(hour_t1, n = hourly_lag, default = NA),
  yday_t1 = lubridate::yday(t_), # day of the year
  yday_t2 = lead(yday_t1, n = hourly_lag, default = NA),
  sl = c(sqrt(diff(y_)^2 + diff(x_)^2), NA), # step lengths
  log_sl = log(sl),
  bearing = c(atan2(diff(y_), diff(x_)), NA),
  ta = c(NA, ifelse(
    diff(bearing) > pi, diff(bearing)-(2*pi), ifelse(
      diff(bearing) < -pi, diff(bearing)+(2*pi), diff(bearing)))), # turning angles
  cos_ta = cos(ta),

  .keep = "none"
)

head(buffalo)

To compare the observed buffalo data to the simulated data, select a subset of the buffalo data

no_subset_locations <- 3000 # to compare to the simulated data

buffalo_id_subset <- buffalo #%>%
  # filter(id == 2005) %>%
  # arrange(t1) %>%
  # slice(1:no_subset_locations)

# hist(buffalo_id_subset$time_diff)

Import multiple deep learning trajectories

# deepSSF model folder
deepSSF_dir <- "id2005_med_CNN_movement_2_2025-05-10"

# read in multiple csv files with similar filenames and bind them together
sim_data_full_list <-
  list.files(paste0("Python/outputs/model_training/",deepSSF_dir,"/simulations/deepSSF_trajectories/"), pattern = "*.csv", full.names = T)[1:50]

length(sim_data_full_list)

[1] 50

# to filter filenames with any string matching conditions
sim_data_filenames <- grep("", sim_data_full_list, value = T) #%>%
  # grep("3000steps", x = ., value = T)

# read dataframes as a single dataframe with id identifier
sim_data_all <- sim_data_filenames %>%
  map_dfr(read_csv, .id = "id") %>%
  mutate(
    ...1 = NULL
    )

sim_data_all

Calculate step lengths and turning angles etc

hourly_lag <- 1

# Nest the data by 'id'
sim_data_nested <- sim_data_all %>%
  group_by(id) %>%
  nest()

# Map the mutate transformation over each nested tibble
sim_data_nested <- sim_data_nested %>%
  mutate(data = map(data, ~ .x %>%
    mutate(
      x1 = x,
      y1 = y,
      x2 = lead(x1, n = hourly_lag, default = NA),
      y2 = lead(y1, n = hourly_lag, default = NA),
      date = as.Date(yday - 1, origin = "2018-01-01"),
      t1 = as.POSIXct(paste(date, hour), format = "%Y-%m-%d %H"),
      t2 = lead(t1, n = hourly_lag, default = NA),
      yday_t1 = lubridate::yday(t1), # day of the year
      yday_t2 = lead(yday_t1, n = hourly_lag, default = NA),
      hour_t1 = lubridate::hour(t1),
      hour_t2 = lead(hour_t1, n = hourly_lag, default = NA),
      sl = c(sqrt(diff(y)^2 + diff(x)^2), NA),  # step lengths
      log_sl = log(sl),
      bearing = c(atan2(diff(y), diff(x)), NA),
      ta = c(NA, ifelse(
        diff(bearing) > pi, diff(bearing) - (2 * pi),
        ifelse(diff(bearing) < -pi, diff(bearing) + (2 * pi), diff(bearing))
      )),
      cos_ta = cos(ta),

      .keep = "none"
    )
  ))

# Unnest the transformed data back into a single data frame
sim_data_all <- sim_data_nested %>%
  unnest(data) %>%
  ungroup() %>%
  mutate(id = as.numeric(id))

head(sim_data_all)

Combine the observed and simulated datasets

all_data <- bind_rows(buffalo_id_subset, sim_data_all)
head(all_data)

Prepare trajectories for plotting

# set a buffer around the minimum and maximum x and y values
buffer <- 2500

# set the extent of the plot
plot_extent <- all_data %>% filter(id %in% 1:5) %>%
  summarise(min_x = min(x1) - 2500, min_y = min(y1) - 2500, max_x = max(x1) + 2500, max_y = max(y1) + 2500)

# Remove cells outside the extent of the simulated locations (with the buffer)
ndvi_df <- ndvi_df %>%
  filter(x >= plot_extent[[1]] & x <= plot_extent[[3]] &
           y >= plot_extent[[2]] & y <= plot_extent[[4]]) %>%
  mutate(
    x_scaled = (x - plot_extent[[1]])/1000,
    y_scaled = (y - plot_extent[[2]])/1000
  )

# Scale the x and y coordinates of the observed and simulated data
all_data <- all_data %>%
  mutate(
    x1_scaled = (x1 - plot_extent[[1]])/1000,
    y1_scaled = (y1 - plot_extent[[2]])/1000
  )

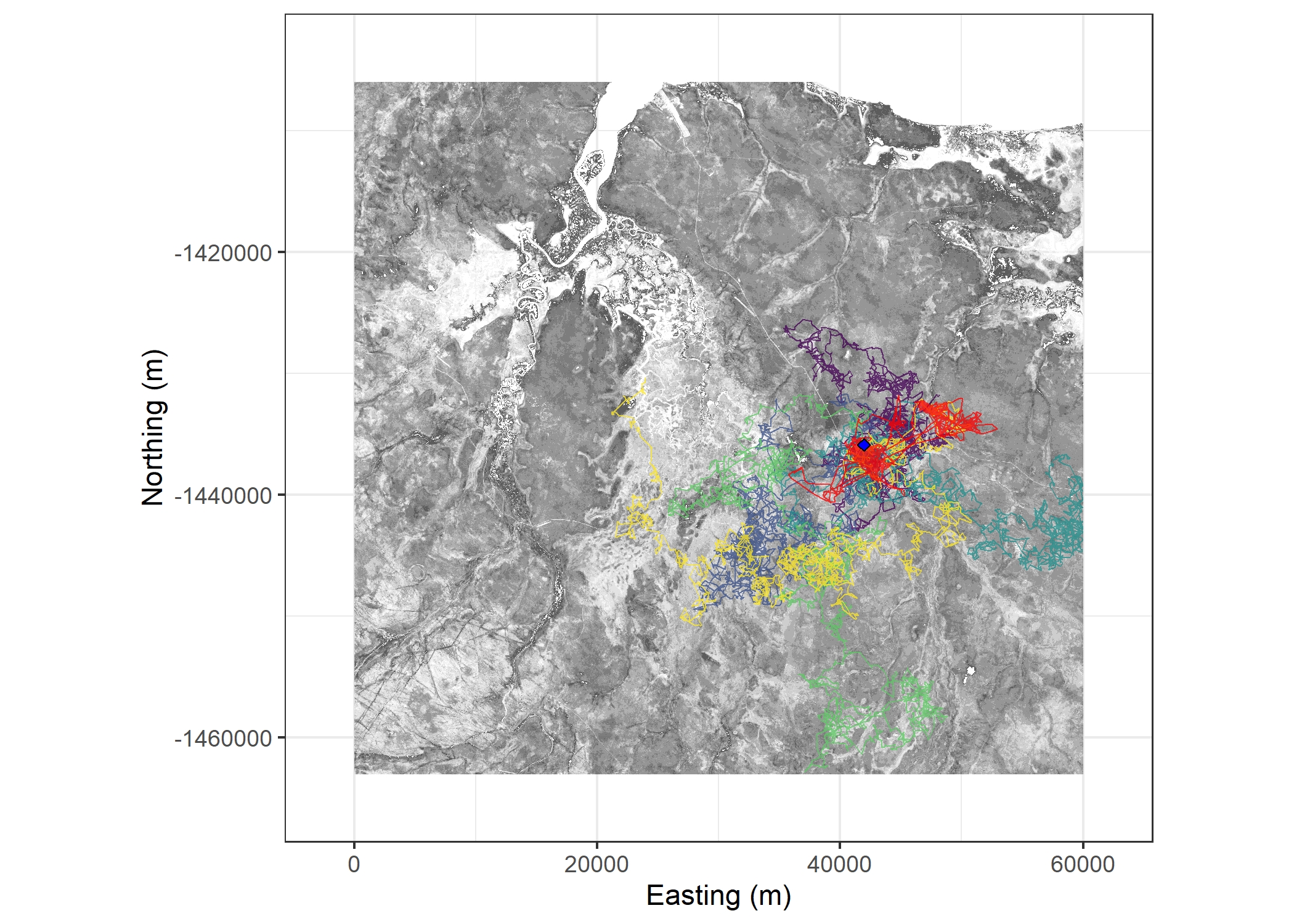

Plot the obsereved and simulated trajectories

ggplot() +

  geom_raster(data = ndvi_df,
                      aes(x = x_scaled, y = y_scaled, fill = ndvi_discrete),
                      alpha = 0.75) +
  scale_fill_brewer("ndvi", palette = "Greys",
                    guide = guide_legend(reverse = TRUE)) +

  geom_path(data = all_data %>% filter(id %in% 1:5),
            aes(x = x1_scaled, y = y1_scaled, colour = as.factor(id)),
            alpha = 0.75, linewidth = 0.25) +

  scale_colour_viridis_d() +

  geom_path(data = all_data %>% filter(id == 2005),
            aes(x = x1_scaled, y = y1_scaled),
            alpha = 0.75, linewidth = 0.25, colour = "red") +

  geom_point(data = all_data %>% slice(1),
            aes(x = x1_scaled, y = y1_scaled), fill = "blue", shape = 23) +

  scale_x_continuous("Easting (km)",
                     expand = c(0, 0)) +
  scale_y_continuous("Northing (km)",
                     expand = c(0, 0)) +
  coord_equal() +
  theme_bw() +
  theme(legend.position = "none")

Warning: Removed 70627 rows containing missing values or values outside the scale range
(`geom_raster()`).

ggsave(paste0("Python/outputs/model_training/",deepSSF_dir,"/simulated_trajectories.png"), width=150, height=150, units="mm", dpi = 600)

Warning: Removed 70627 rows containing missing values or values outside the scale range
(`geom_raster()`).

Plot movement distributions

The skyblue density plot represents the observed data and the orange density plot represents the simulated data.

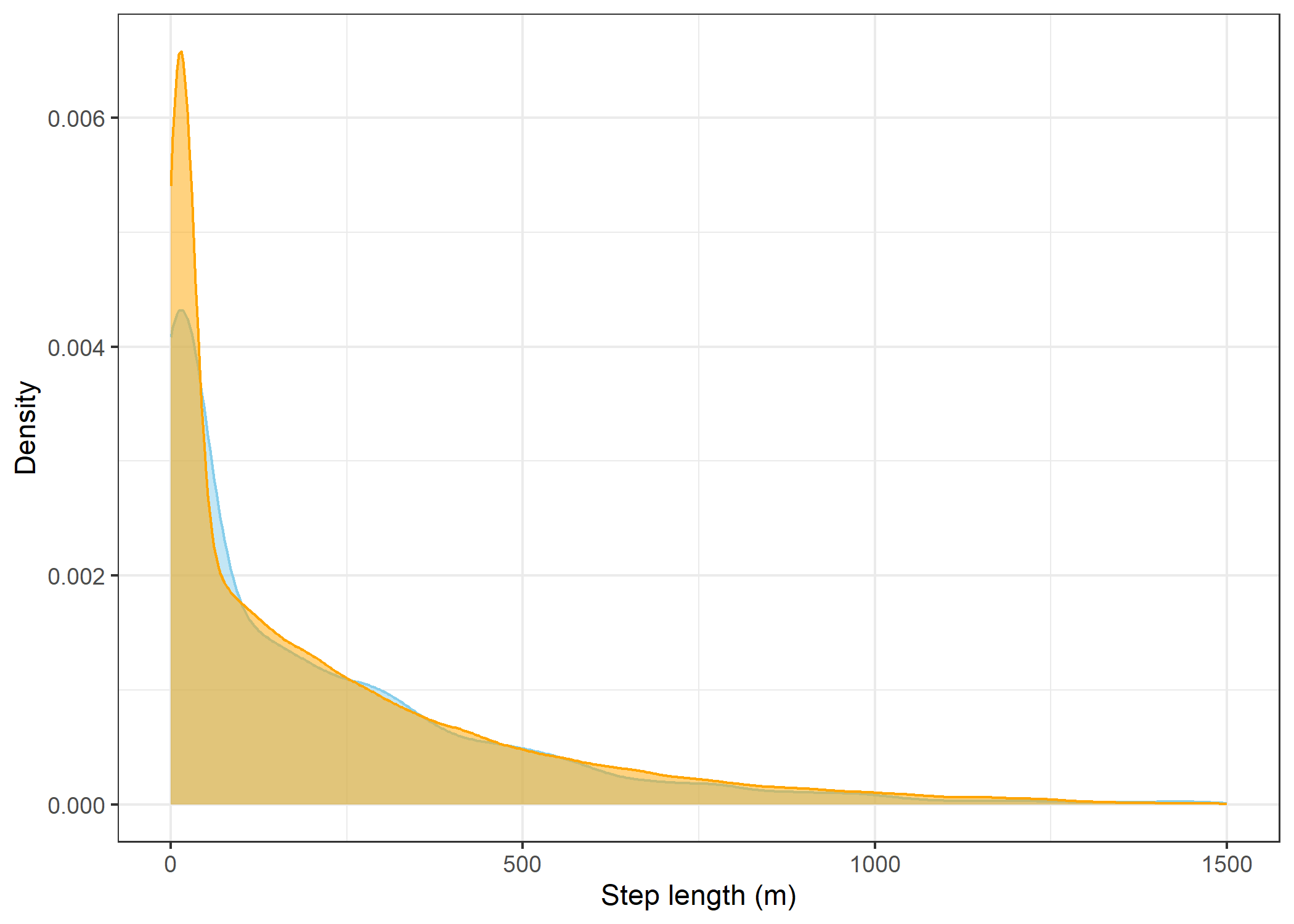

Step lengths

cell_widths <- data.frame(x = c(0, 12.5, seq(37.5, 1785, by = 25)), y = 0)

step_lengths_stationary <- ggplot() +
  # geom_vline(data = cell_widths,
  #            aes(xintercept = x),
  #            colour = "black", linetype = "dashed", alpha = 0.5) +
  geom_density(data = all_data %>% filter(id == 2005),
                 aes(x = sl),
                 fill = "skyblue", colour = "skyblue", alpha = 0.5) +
  geom_density(data = all_data %>% filter(!id == 2005),
                 aes(x = sl),
                 fill = "orange", colour = "orange", alpha = 0.5) +
  scale_x_continuous("Step length (m)", limits = c(0, 1500)) +
  scale_y_continuous("Density") +
  theme_bw()

step_lengths_stationary

Warning: Removed 147 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 3703 rows containing non-finite outside the scale range
(`stat_density()`).

ggsave(paste0("Python/outputs/model_training/",deepSSF_dir,"/step_lengths.png"), width=150, height=80, units="mm", dpi = 600)

Warning: Removed 147 rows containing non-finite outside the scale range
(`stat_density()`).
Removed 3703 rows containing non-finite outside the scale range
(`stat_density()`).

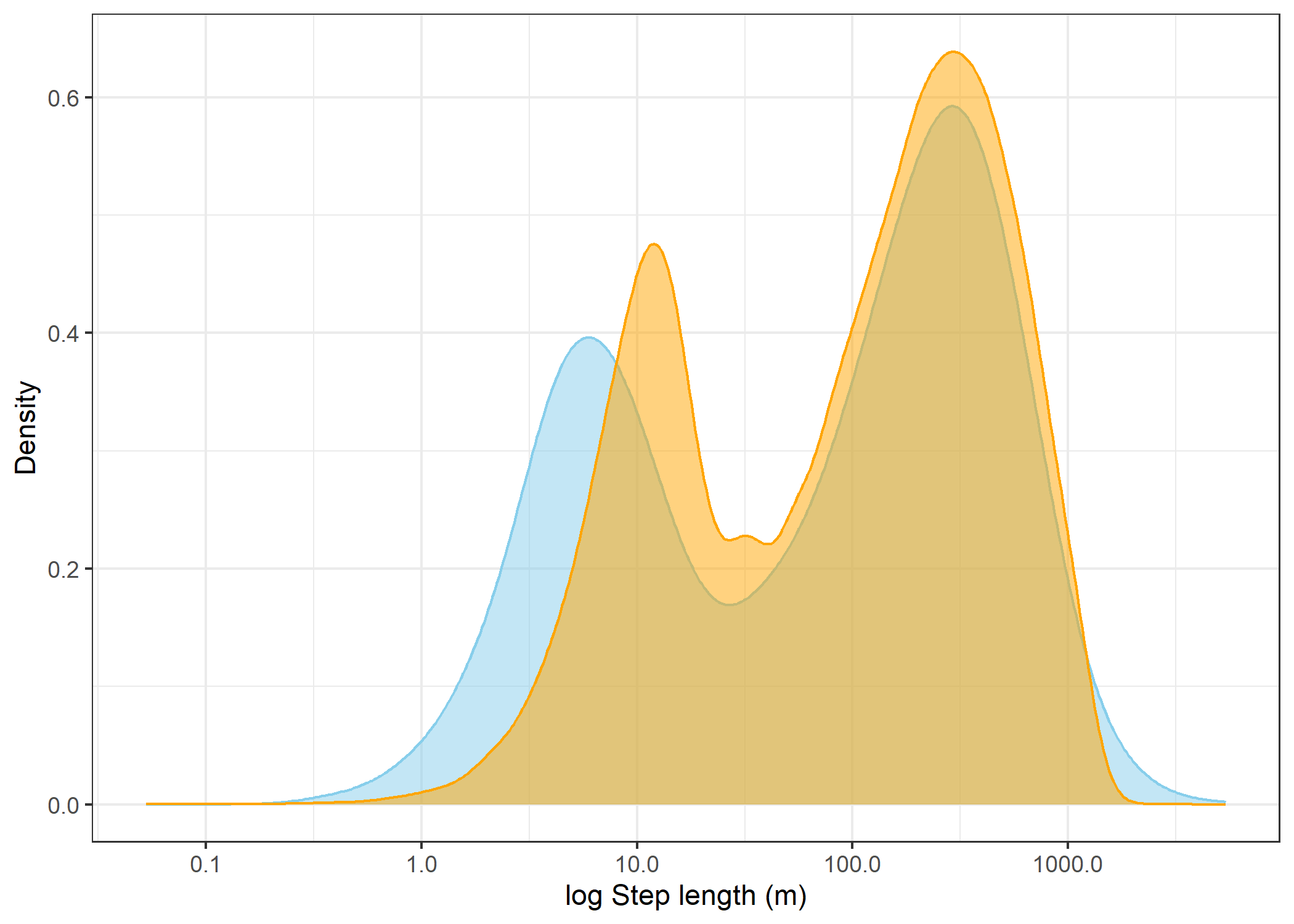

Log step lengths

step_lengths_log <- ggplot() +
  geom_vline(data = cell_widths,
             aes(xintercept = x),
             colour = "black", linetype = "dashed", alpha = 0.5) +
  geom_density(data = all_data %>% filter(id == 2005),
                 aes(x = sl),
                 fill = "skyblue", colour = "skyblue", alpha = 0.5) +
  geom_density(data = all_data %>% filter(!id == 2005),
                 aes(x = sl),
                 fill = "orange", colour = "orange", alpha = 0.5) +
  scale_x_log10("log Step length (m)") +
  scale_y_continuous("Density") +
  theme_bw()

step_lengths_log

Warning in scale_x_log10("log Step length (m)"): log-10 transformation
introduced infinite values.

Warning: Removed 51 rows containing non-finite outside the scale range
(`stat_density()`).

ggsave(paste0("Python/outputs/model_training/",deepSSF_dir,"/log_sl.png"), width=150, height=80, units="mm", dpi = 600)

Warning in scale_x_log10("log Step length (m)"): log-10 transformation introduced infinite values.
Removed 51 rows containing non-finite outside the scale range
(`stat_density()`).

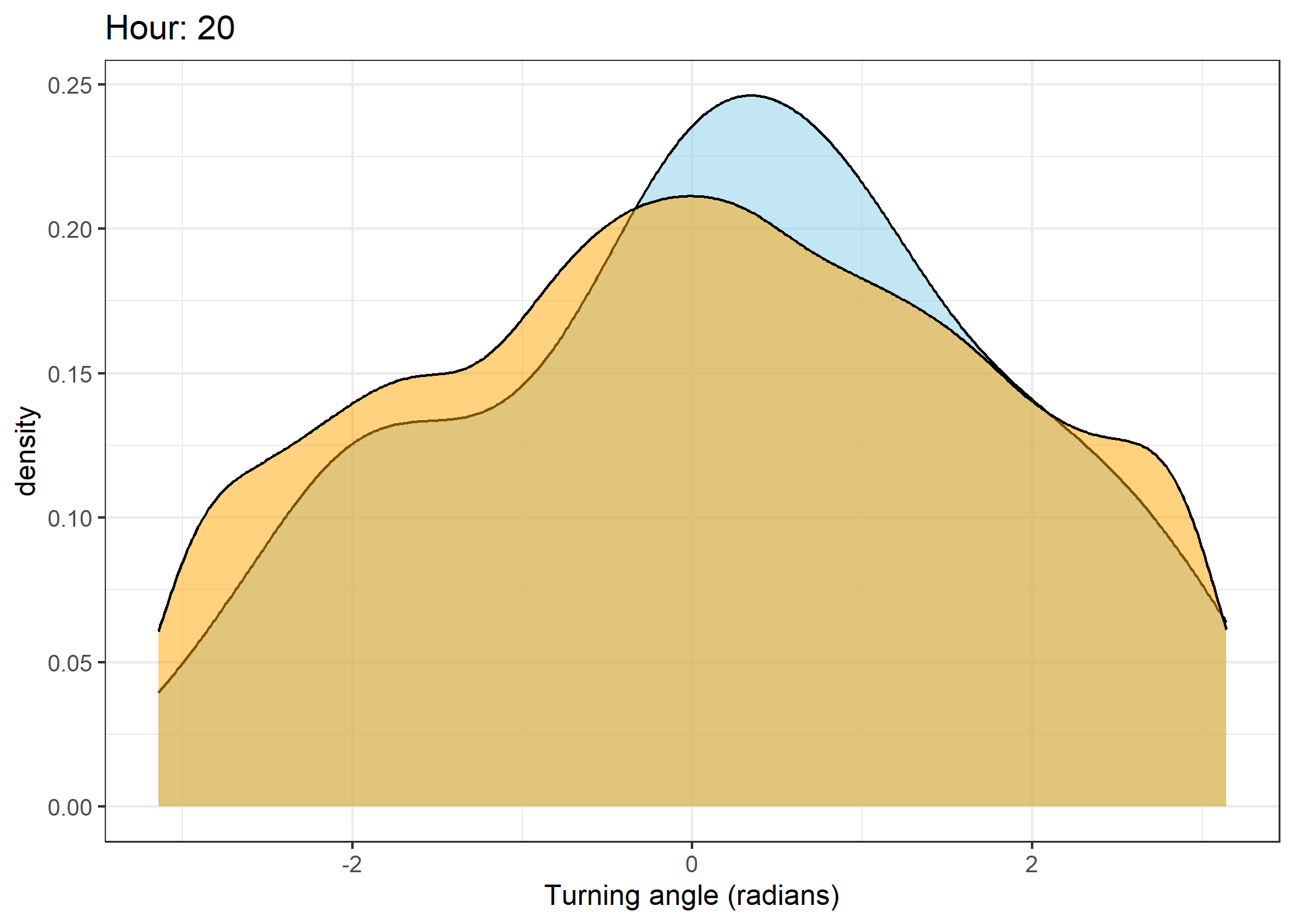

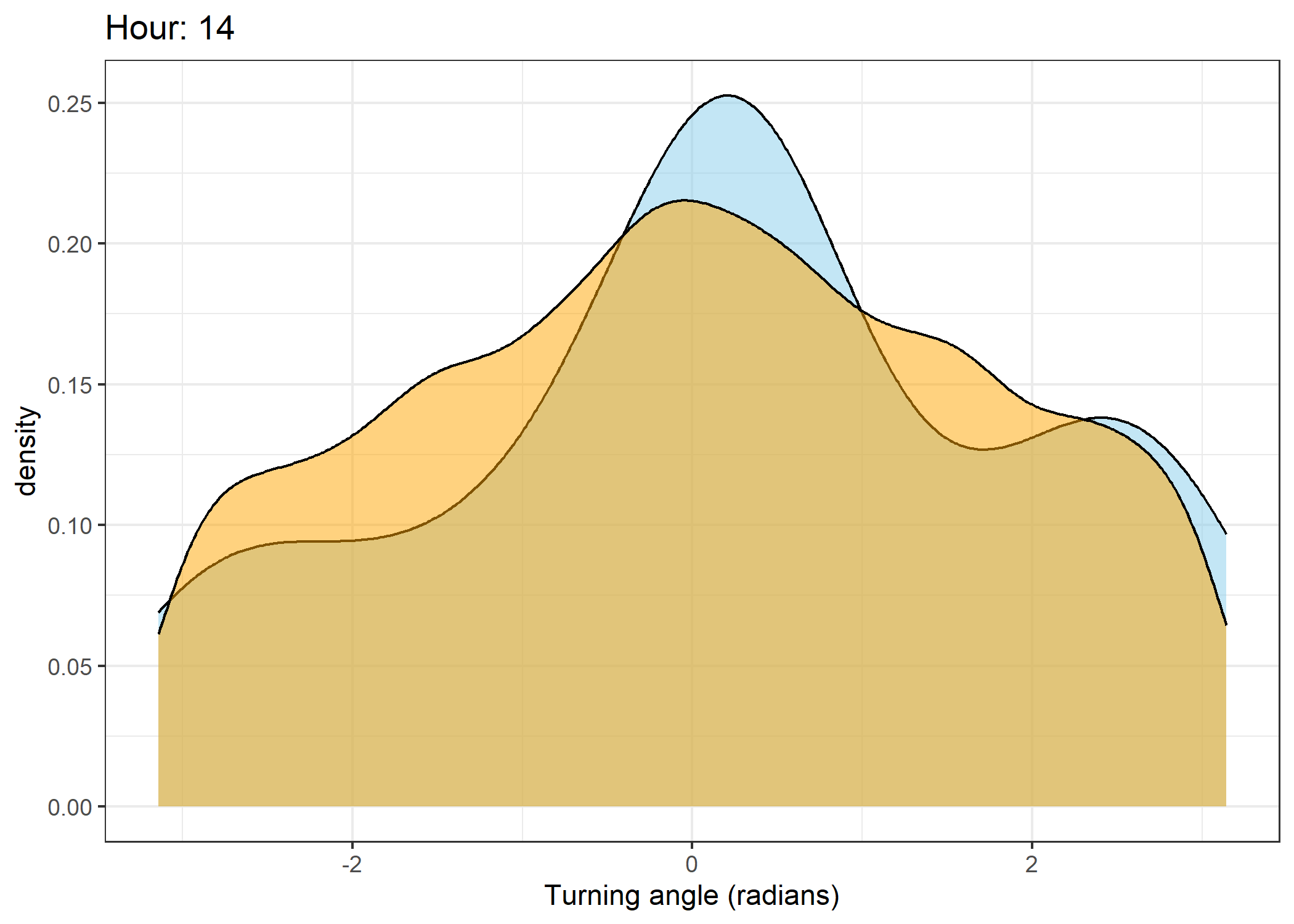

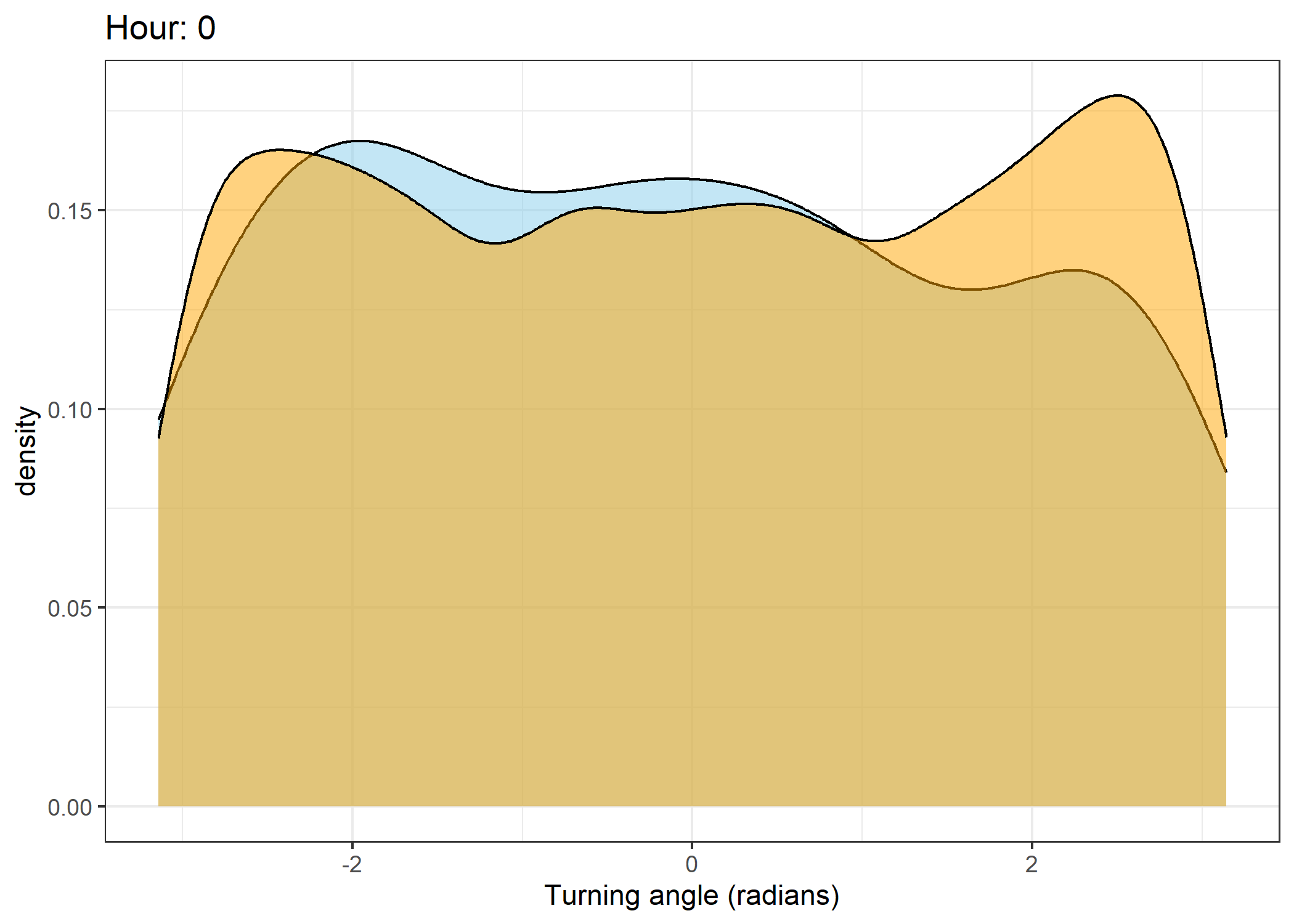

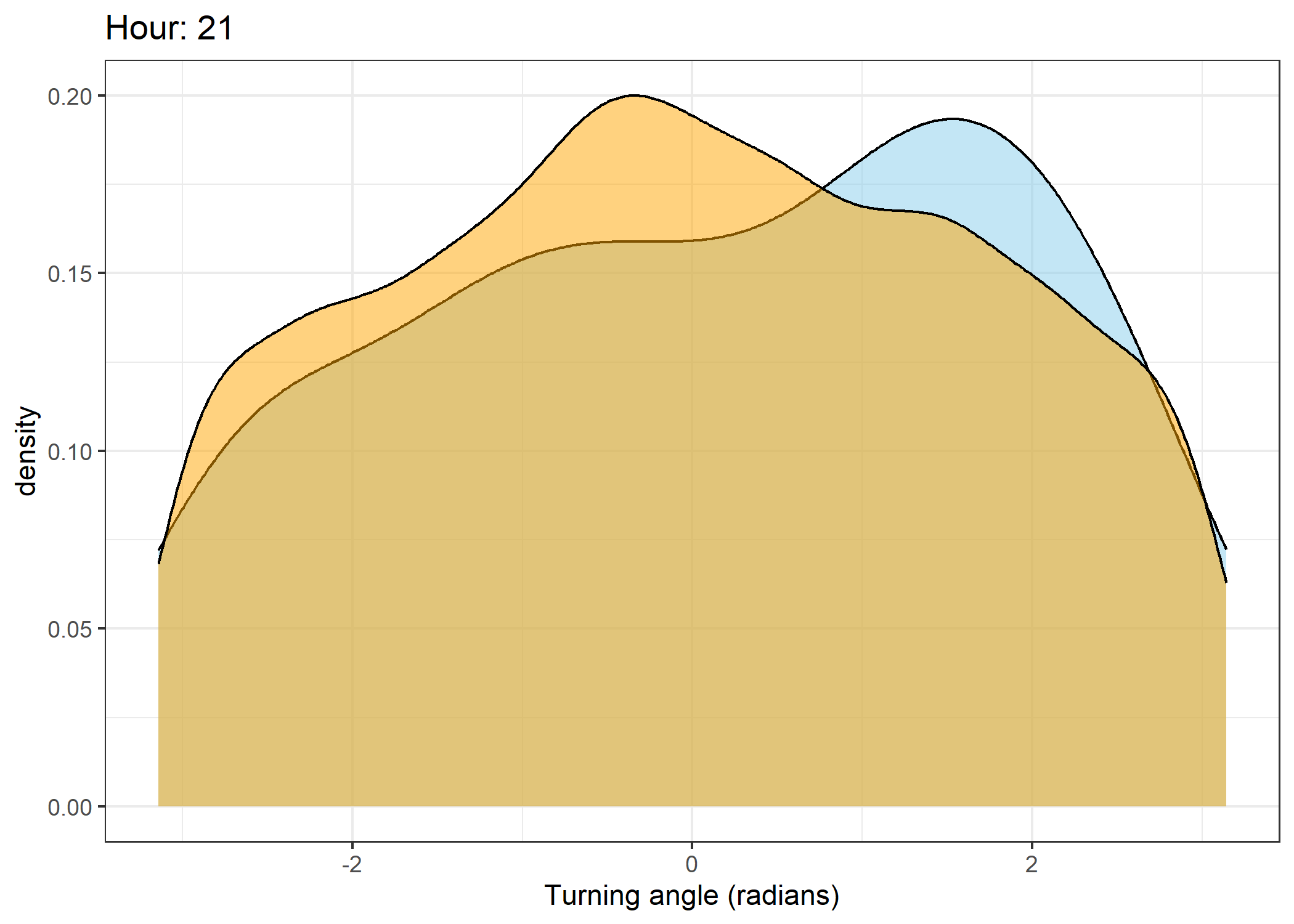

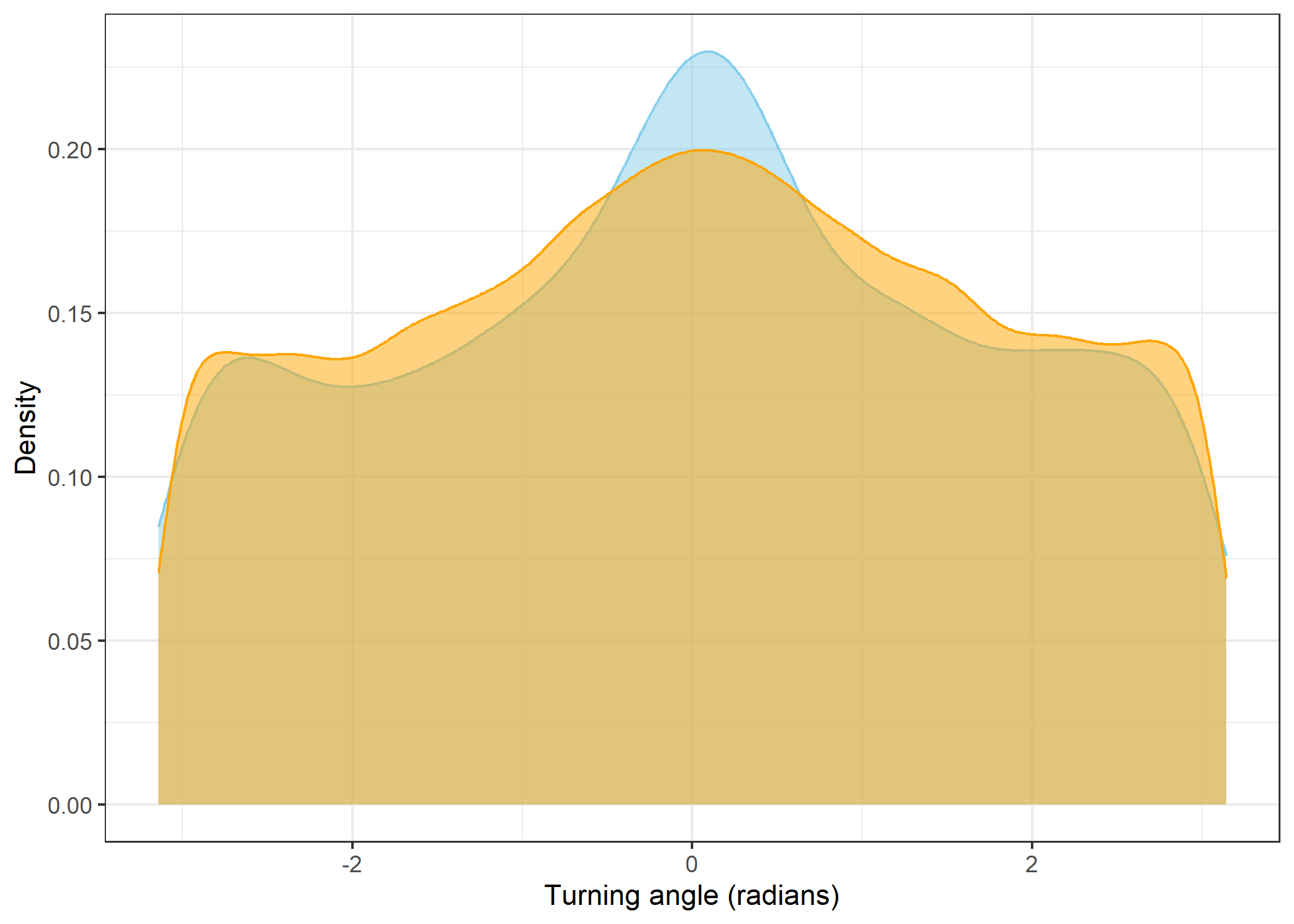

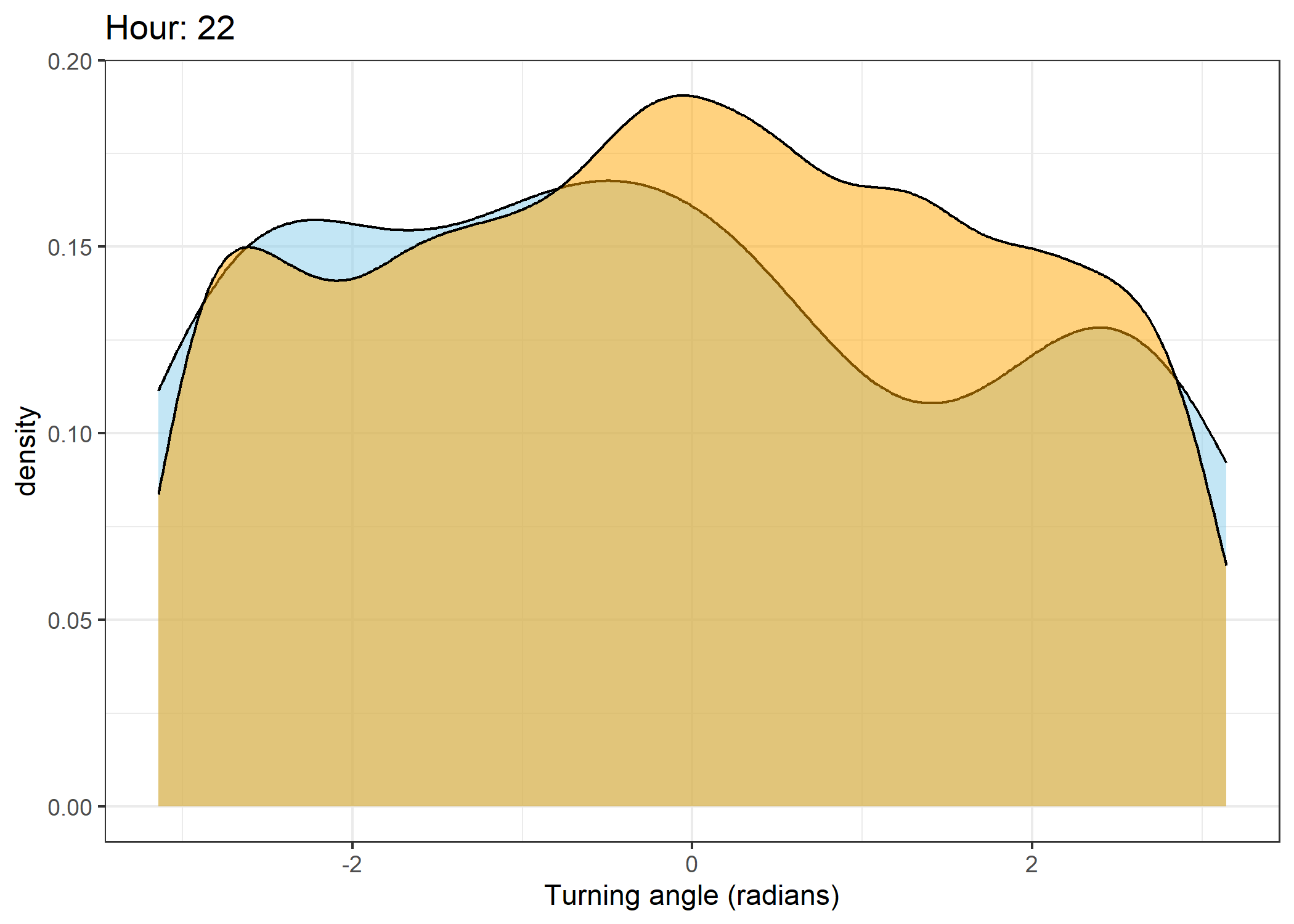

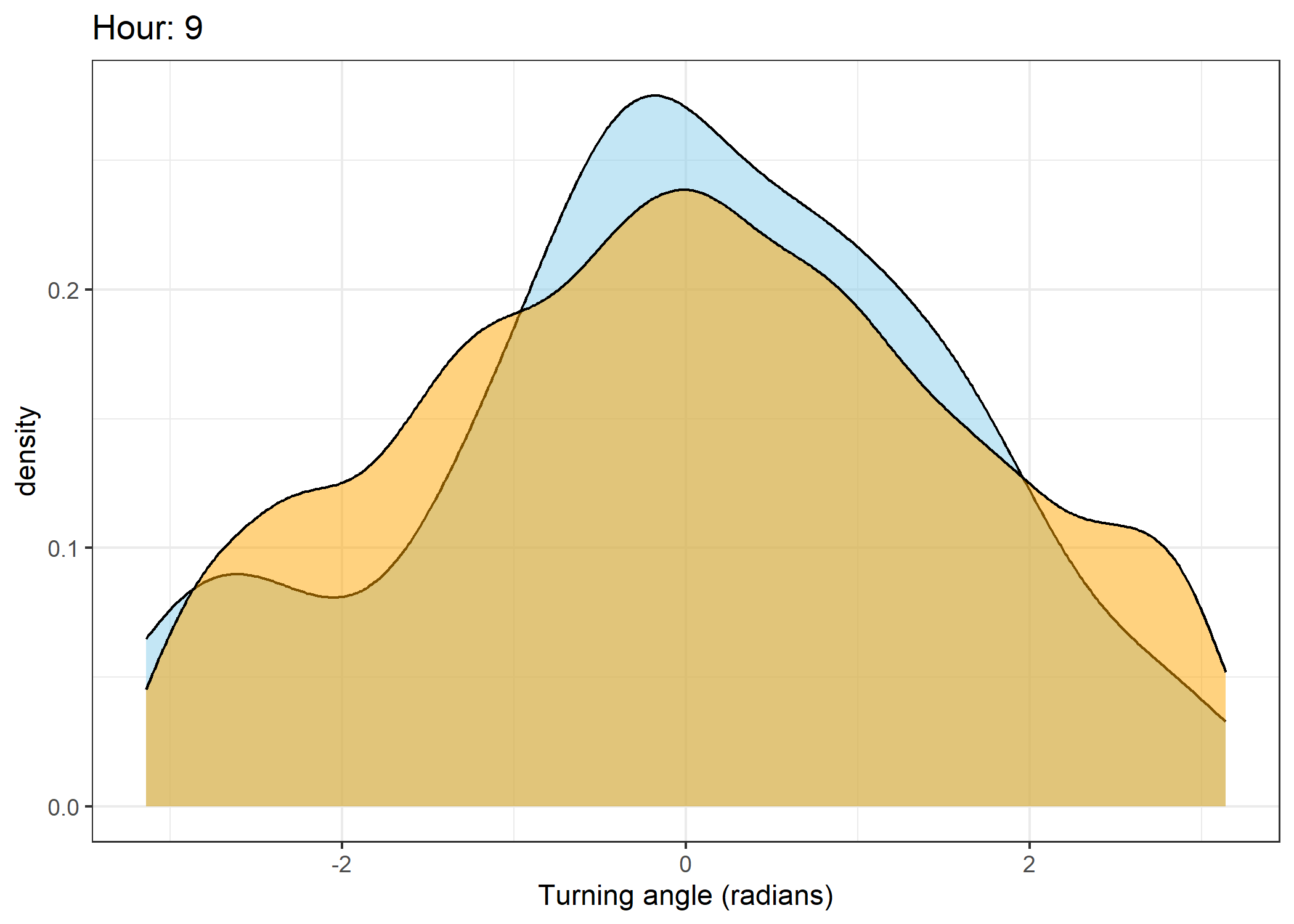

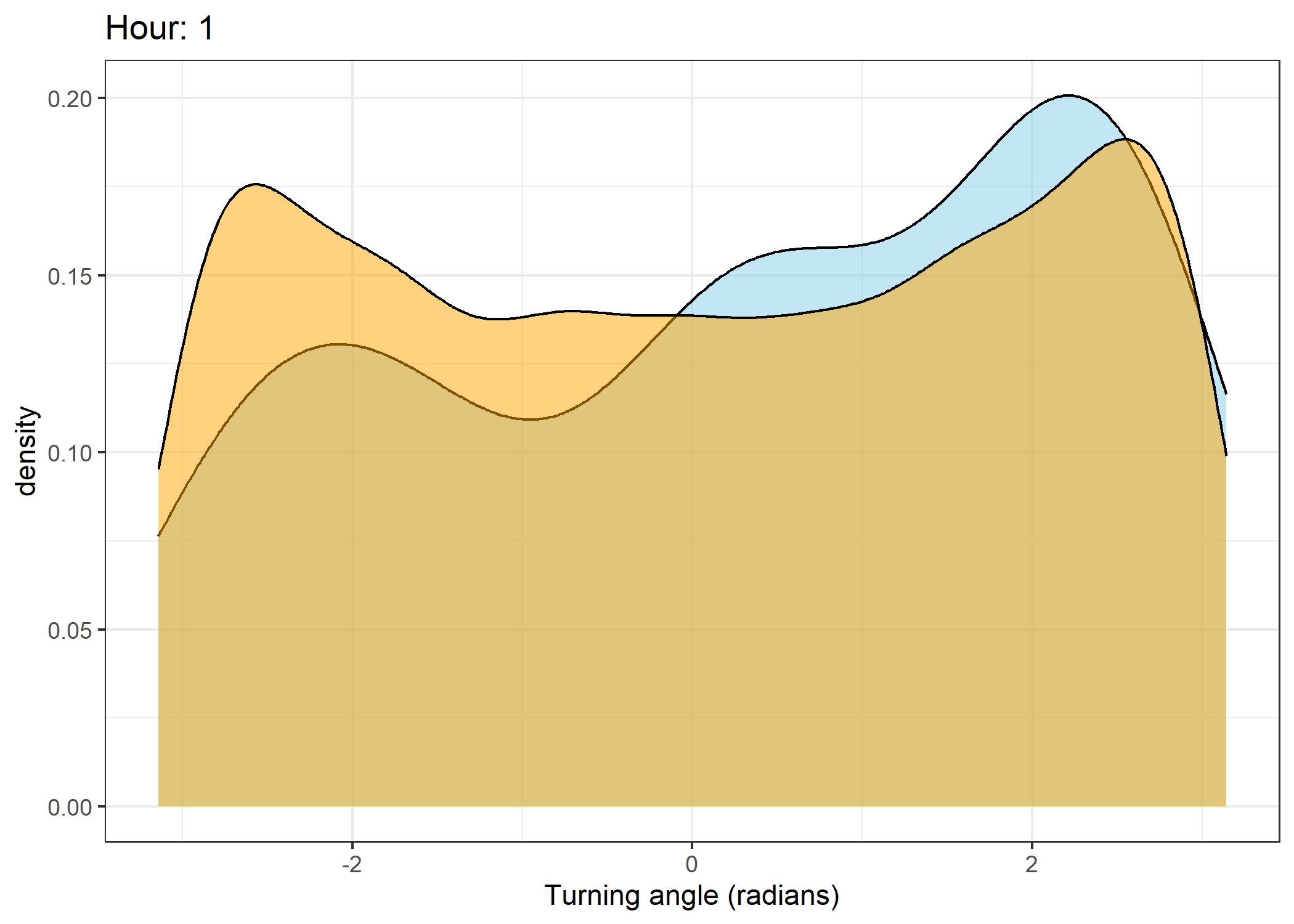

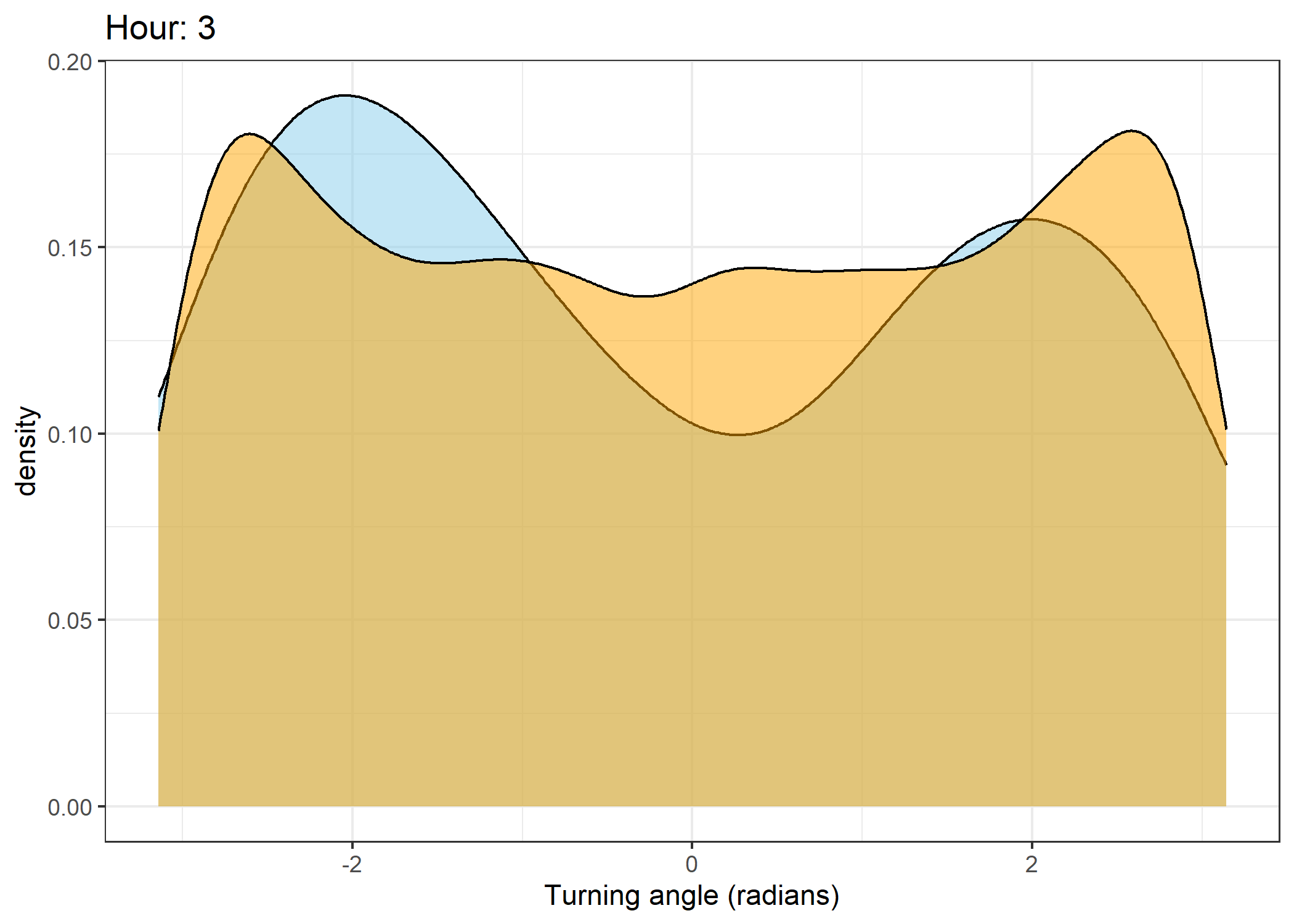

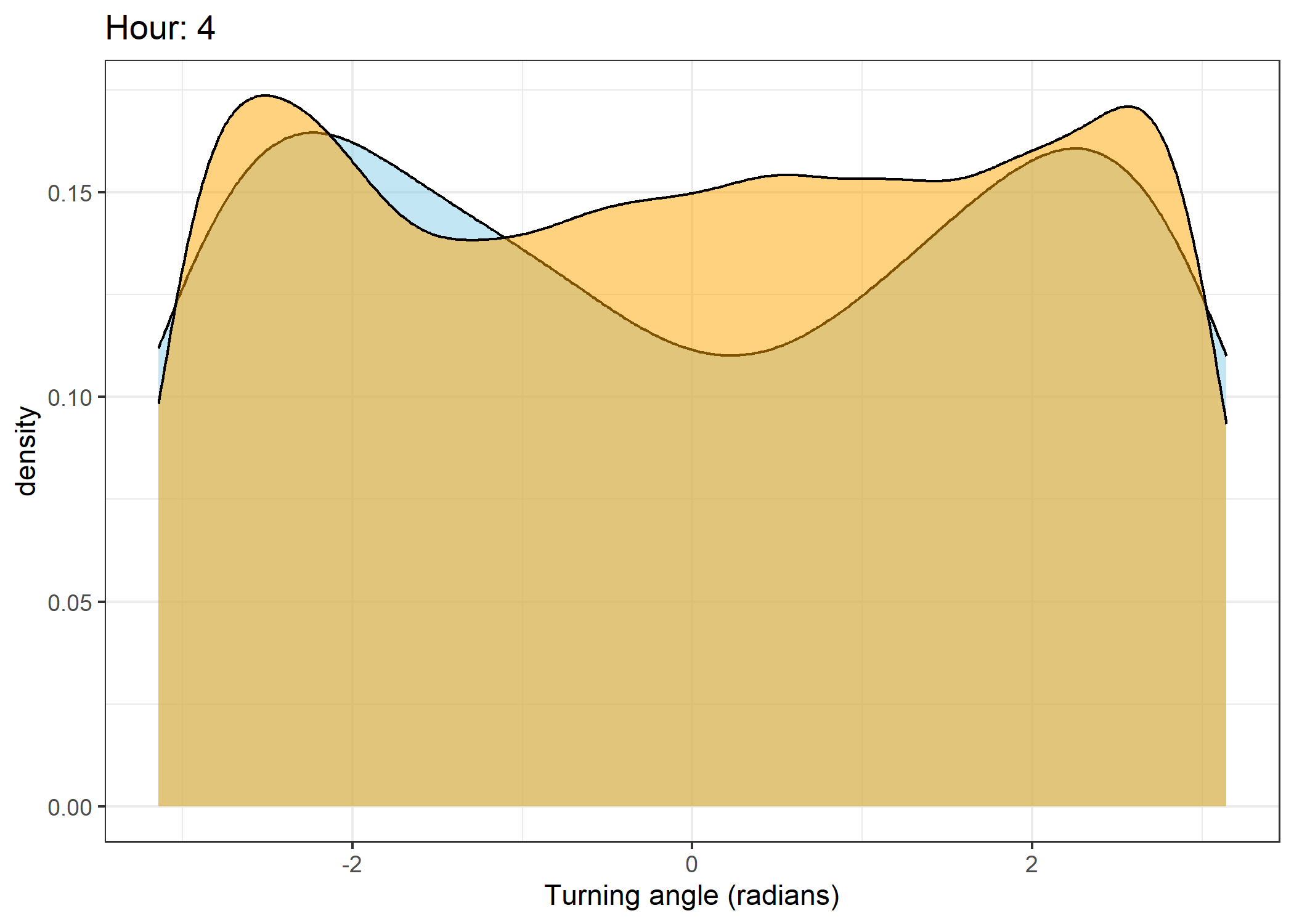

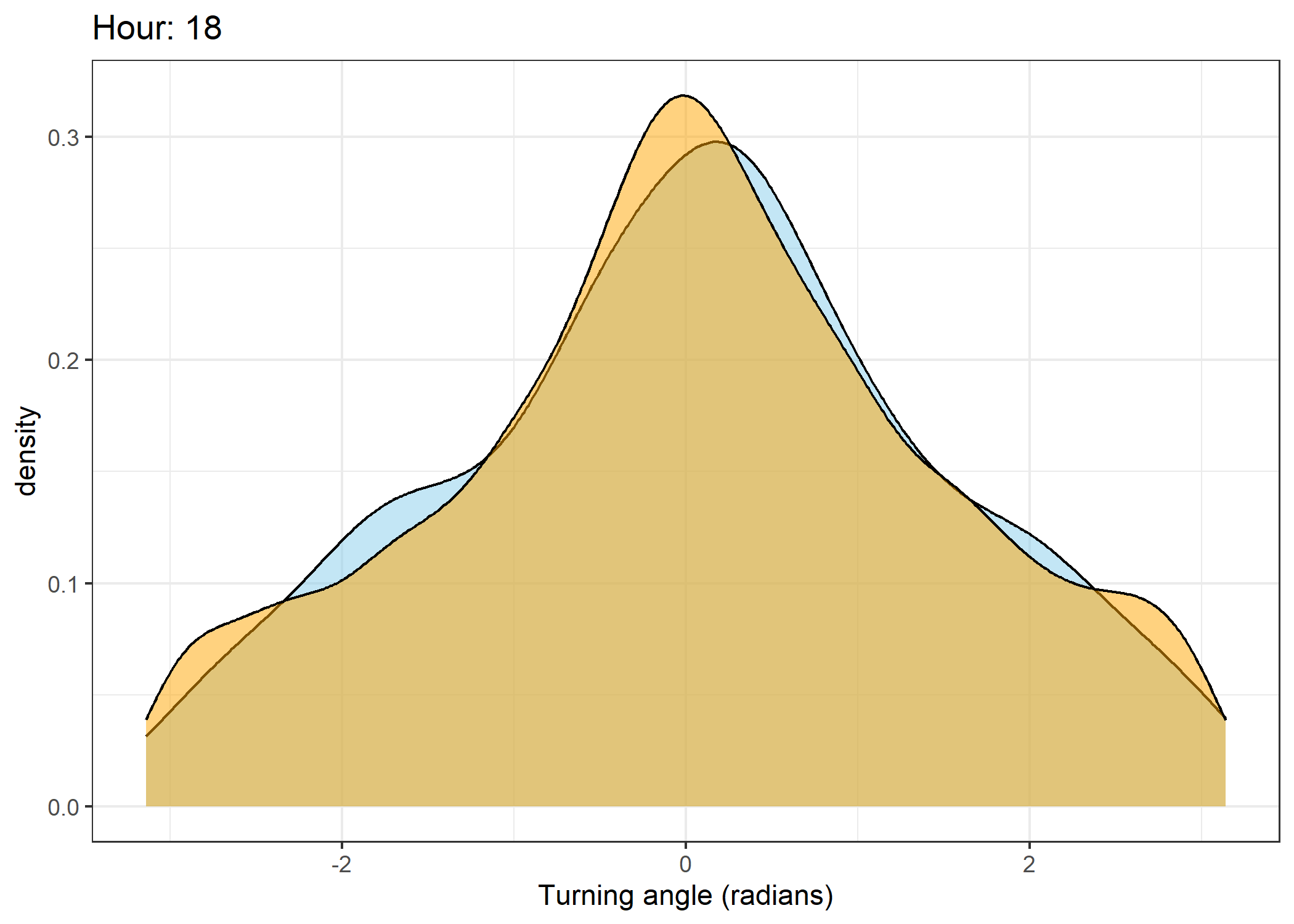

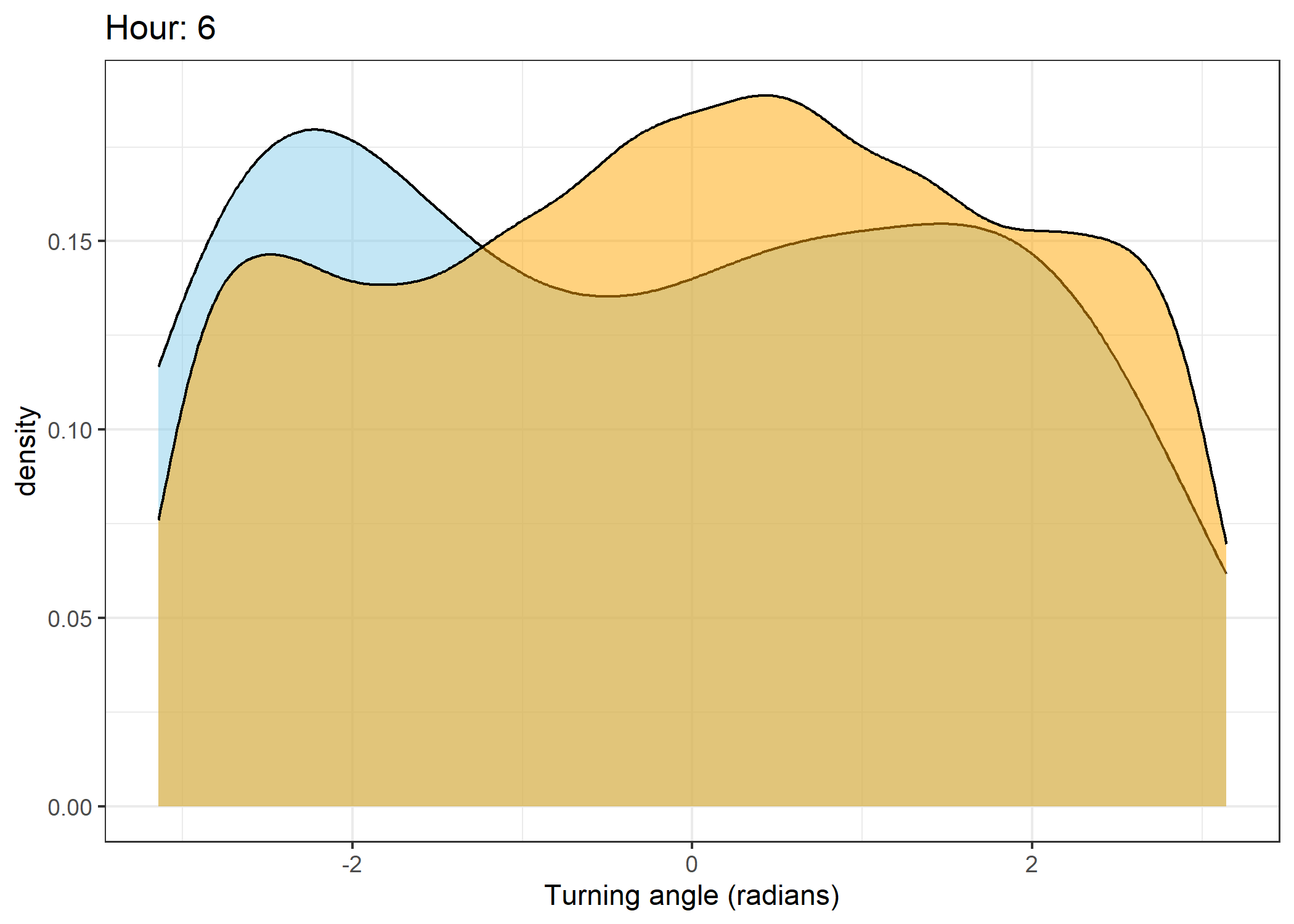

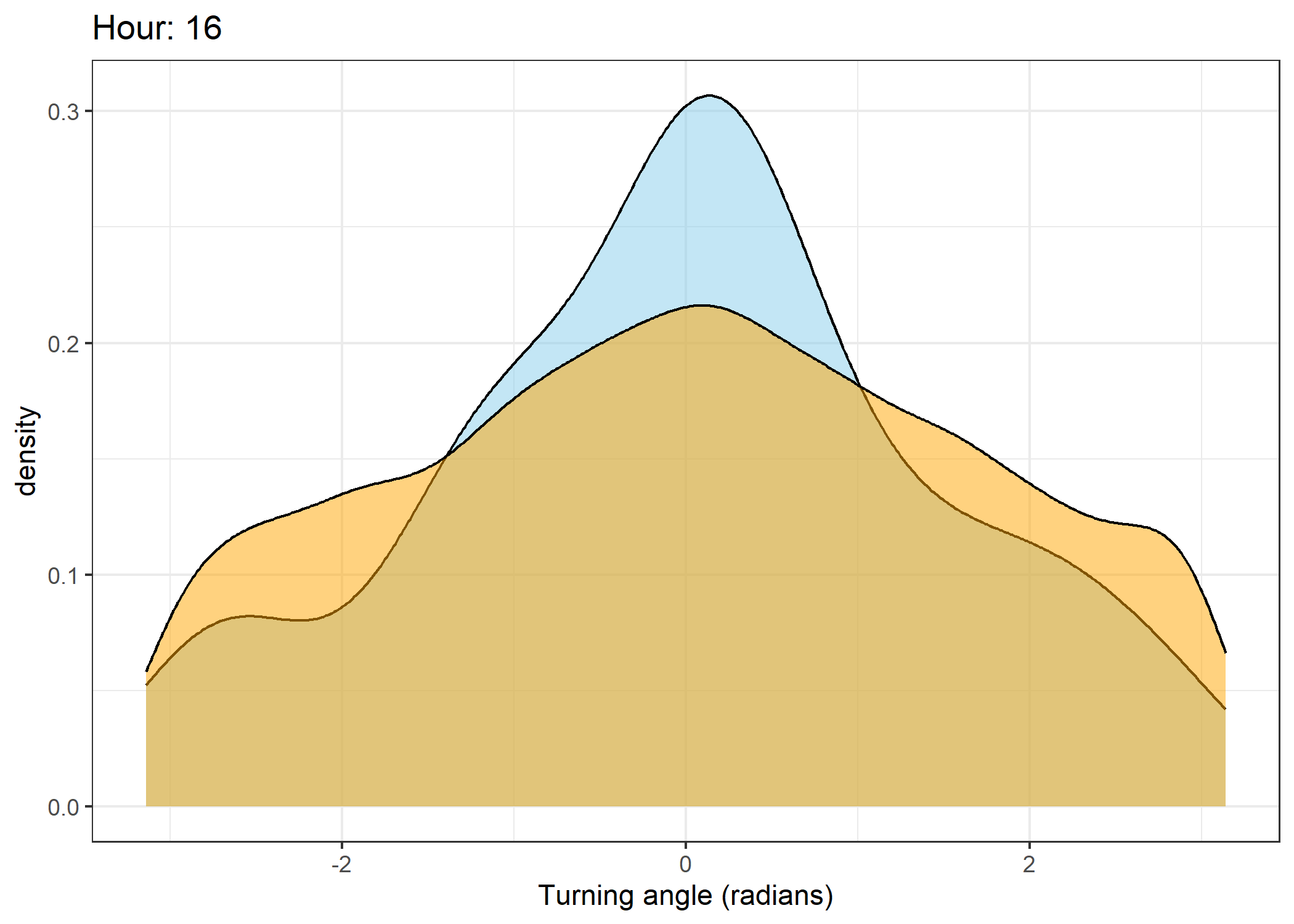

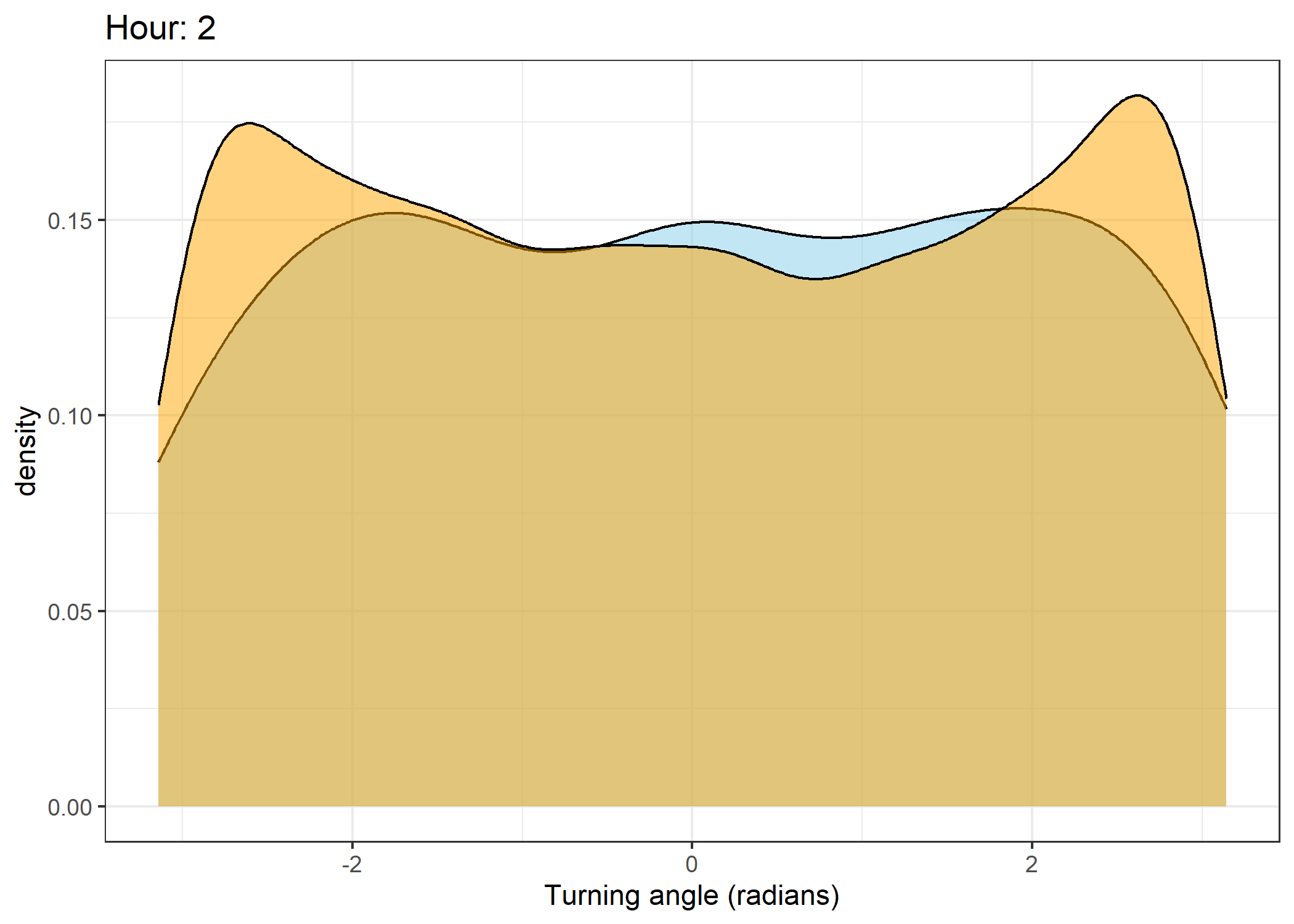

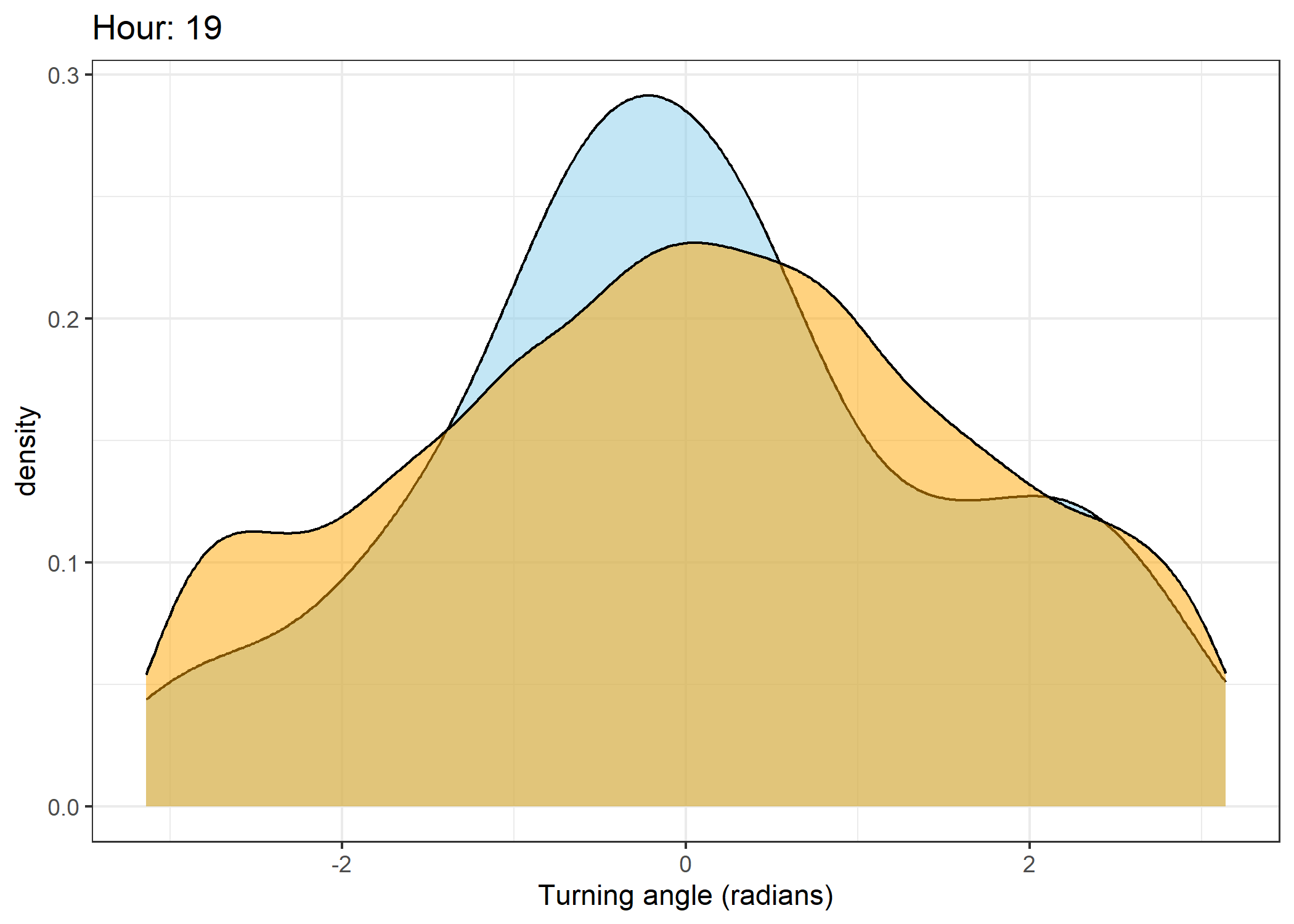

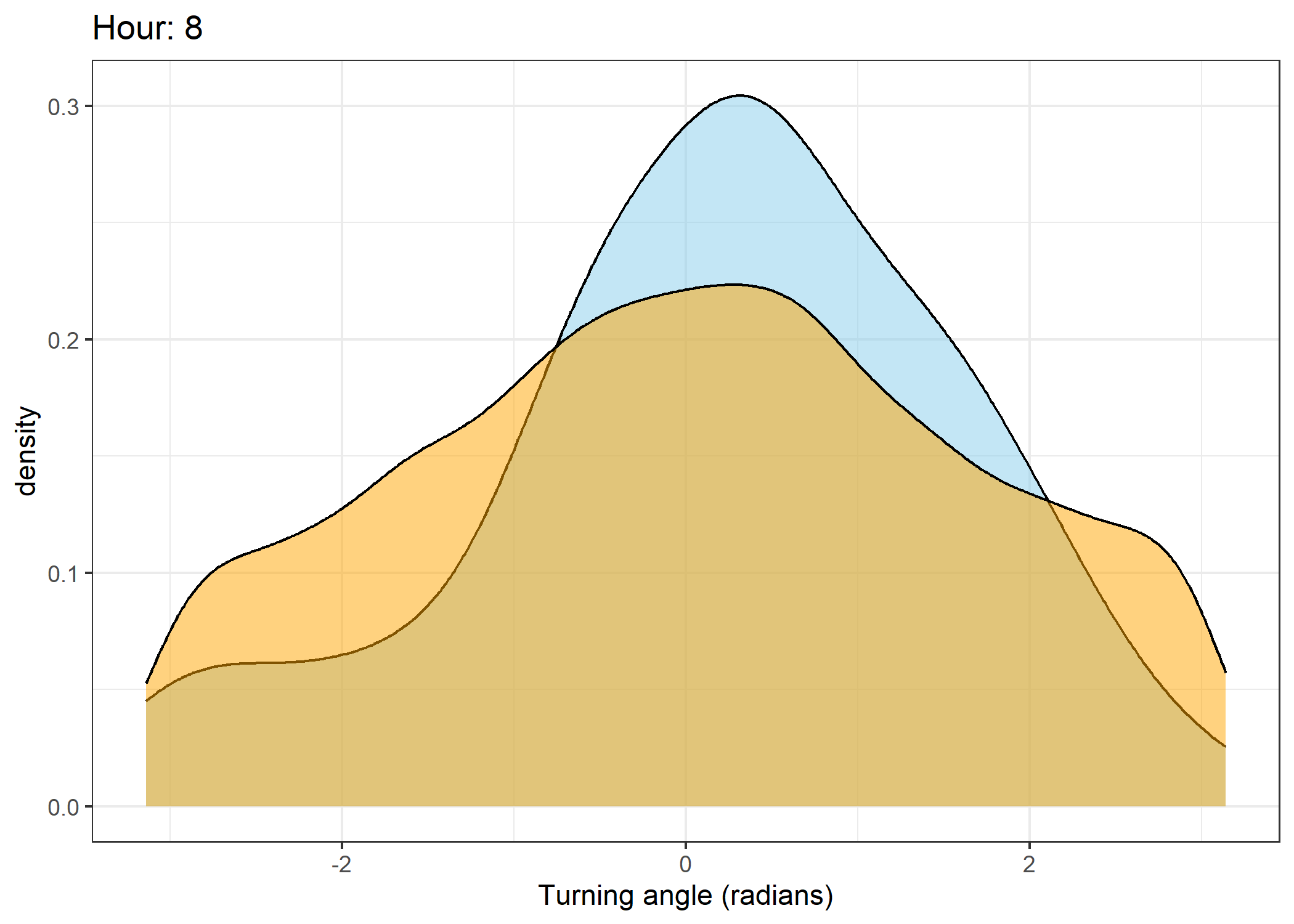

Turning angles

turning_angles_stationary <- ggplot() +
  geom_density(data = all_data %>% filter(id == 2005),
                 aes(x = ta),
                 fill = "skyblue", colour = "skyblue", alpha = 0.5) +
  geom_density(data = all_data %>% filter(!id == 2005),
                 aes(x = ta),
                 fill = "orange", colour = "orange", alpha = 0.5) +
  scale_x_continuous("Turning angle (radians)") +
  scale_y_continuous("Density") +
  theme_bw()

turning_angles_stationary

Warning: Removed 1 row containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 101 rows containing non-finite outside the scale range
(`stat_density()`).

ggsave(paste0("Python/outputs/model_training/",deepSSF_dir,"/turning_angles.png"), width=120, height=80, units="mm", dpi = 600)

Warning: Removed 1 row containing non-finite outside the scale range (`stat_density()`).
Removed 101 rows containing non-finite outside the scale range
(`stat_density()`).

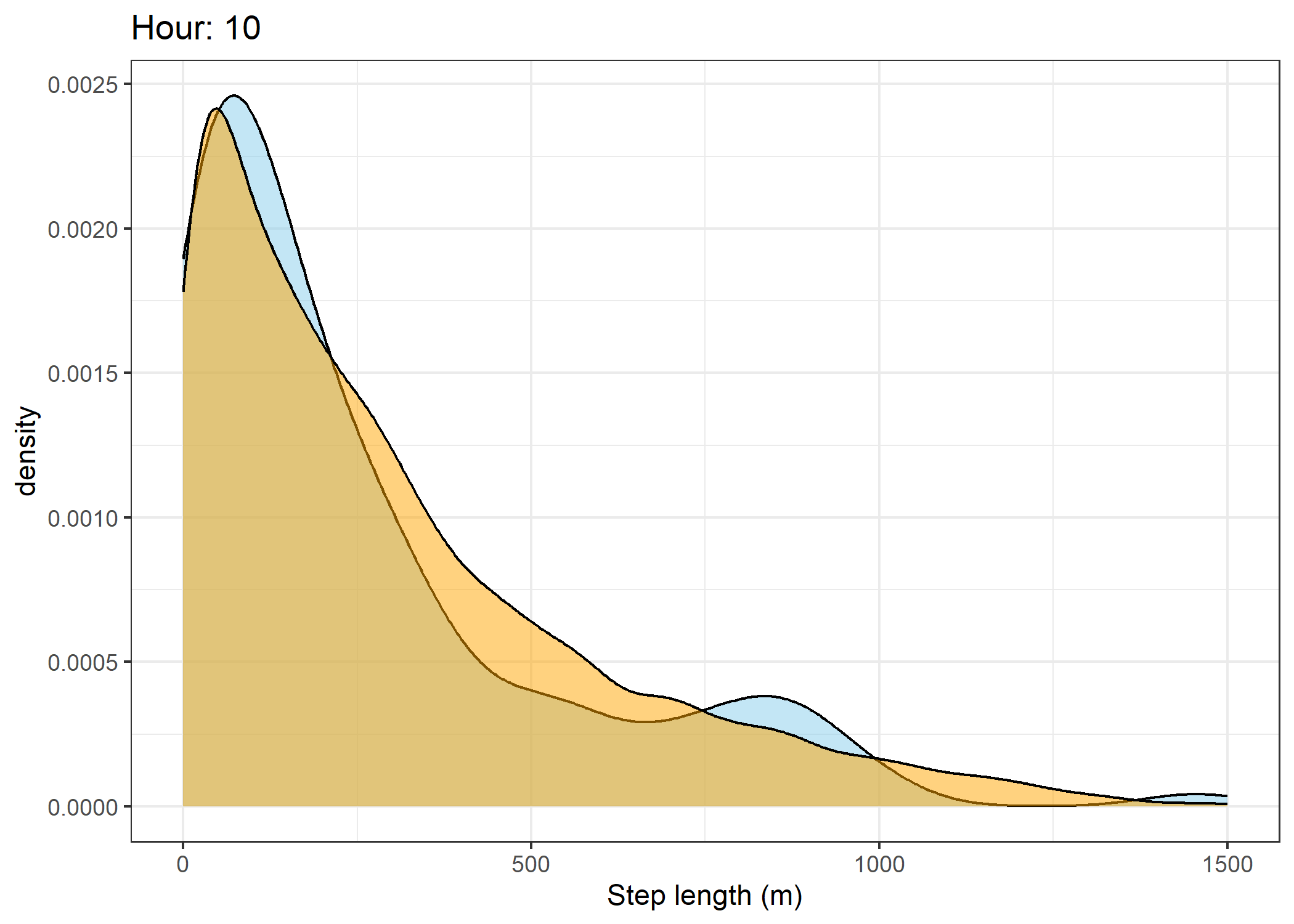

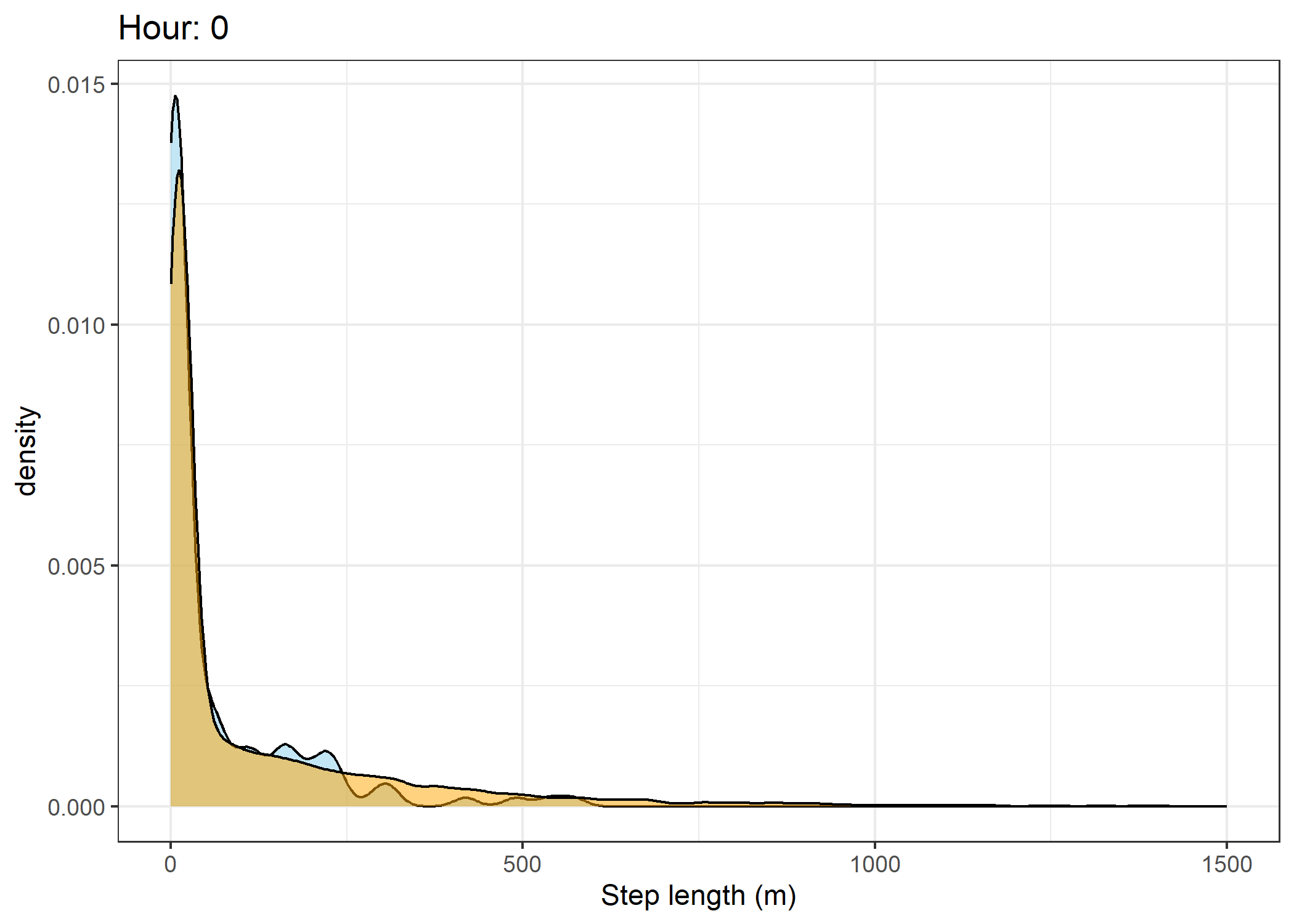

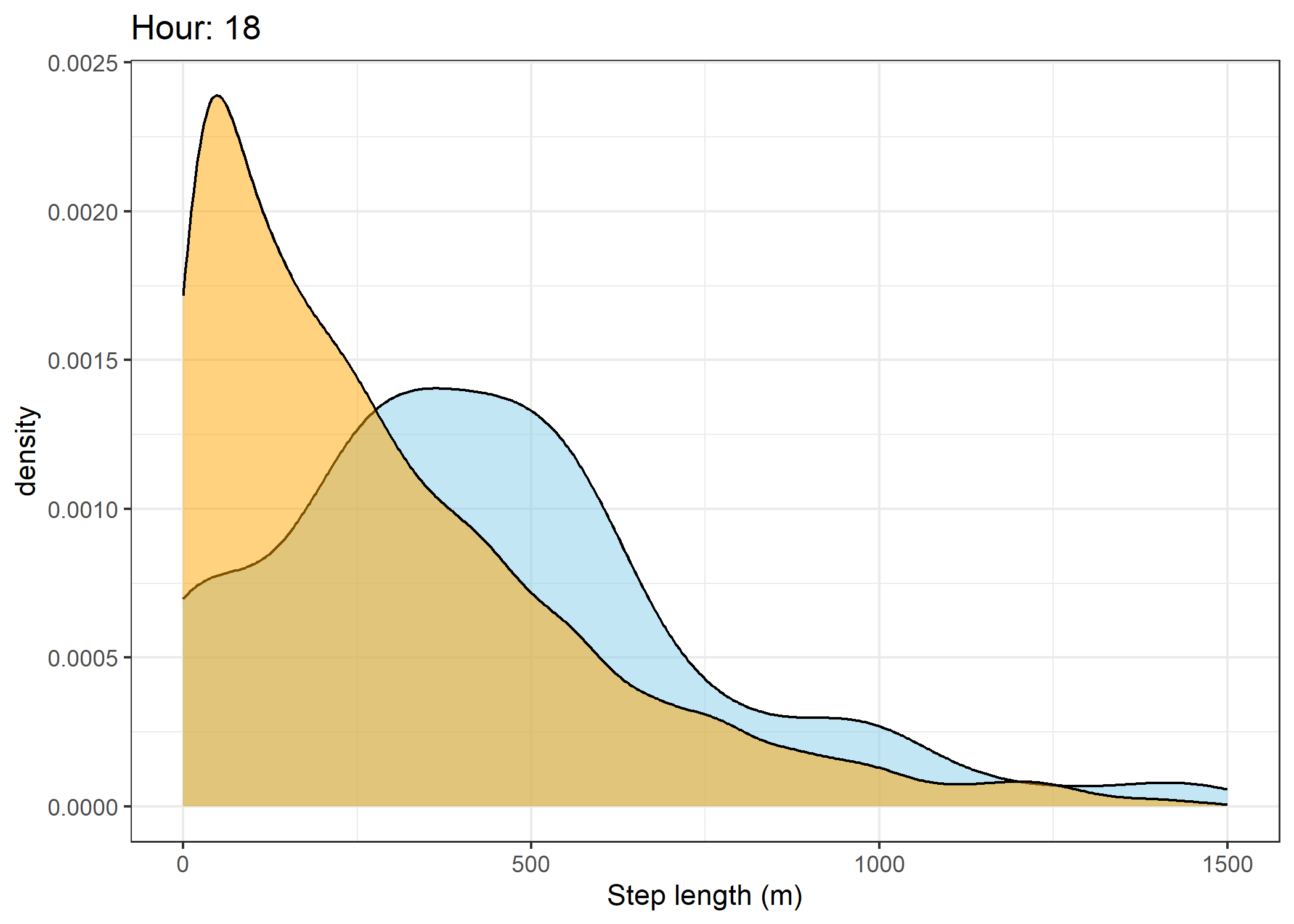

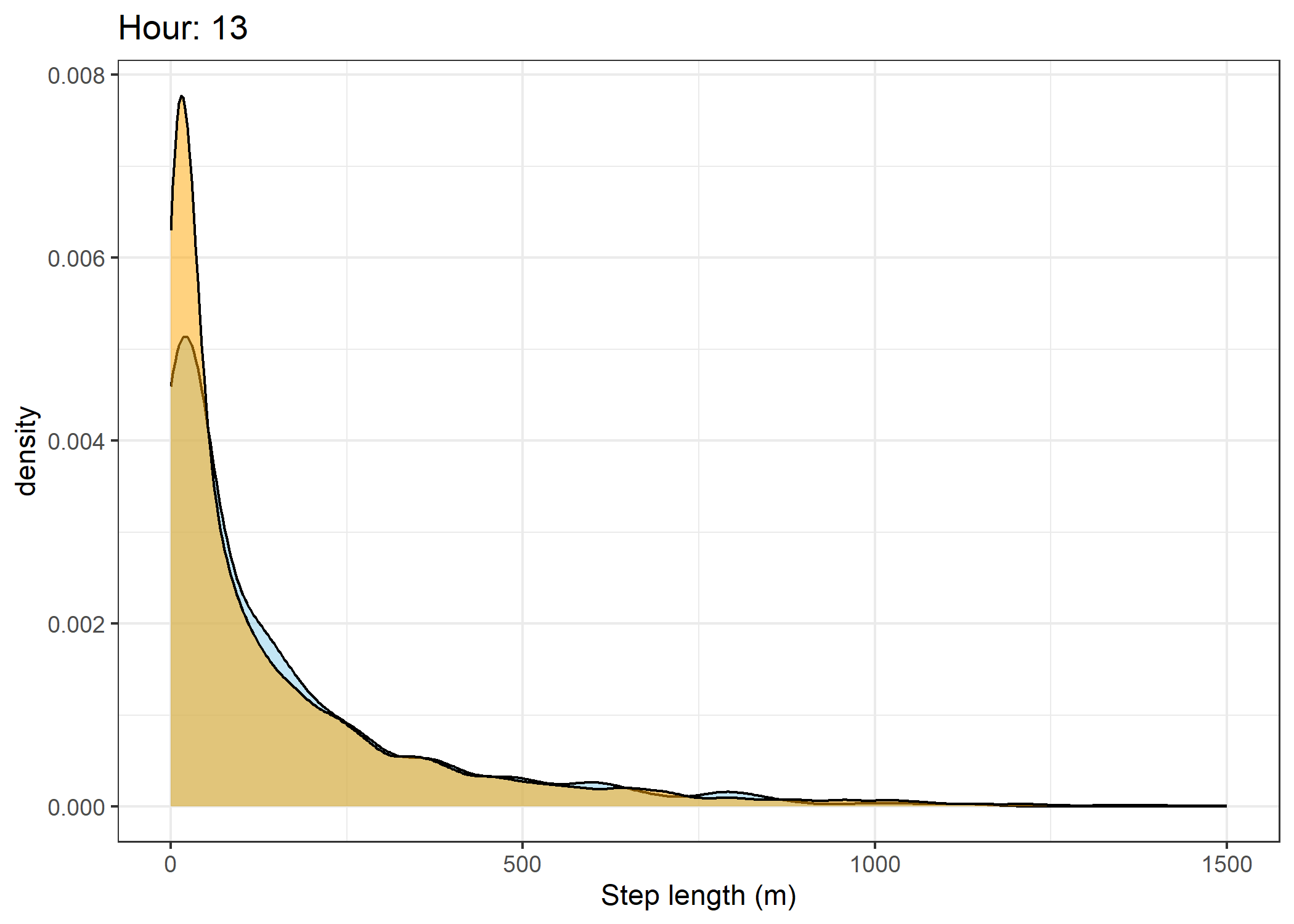

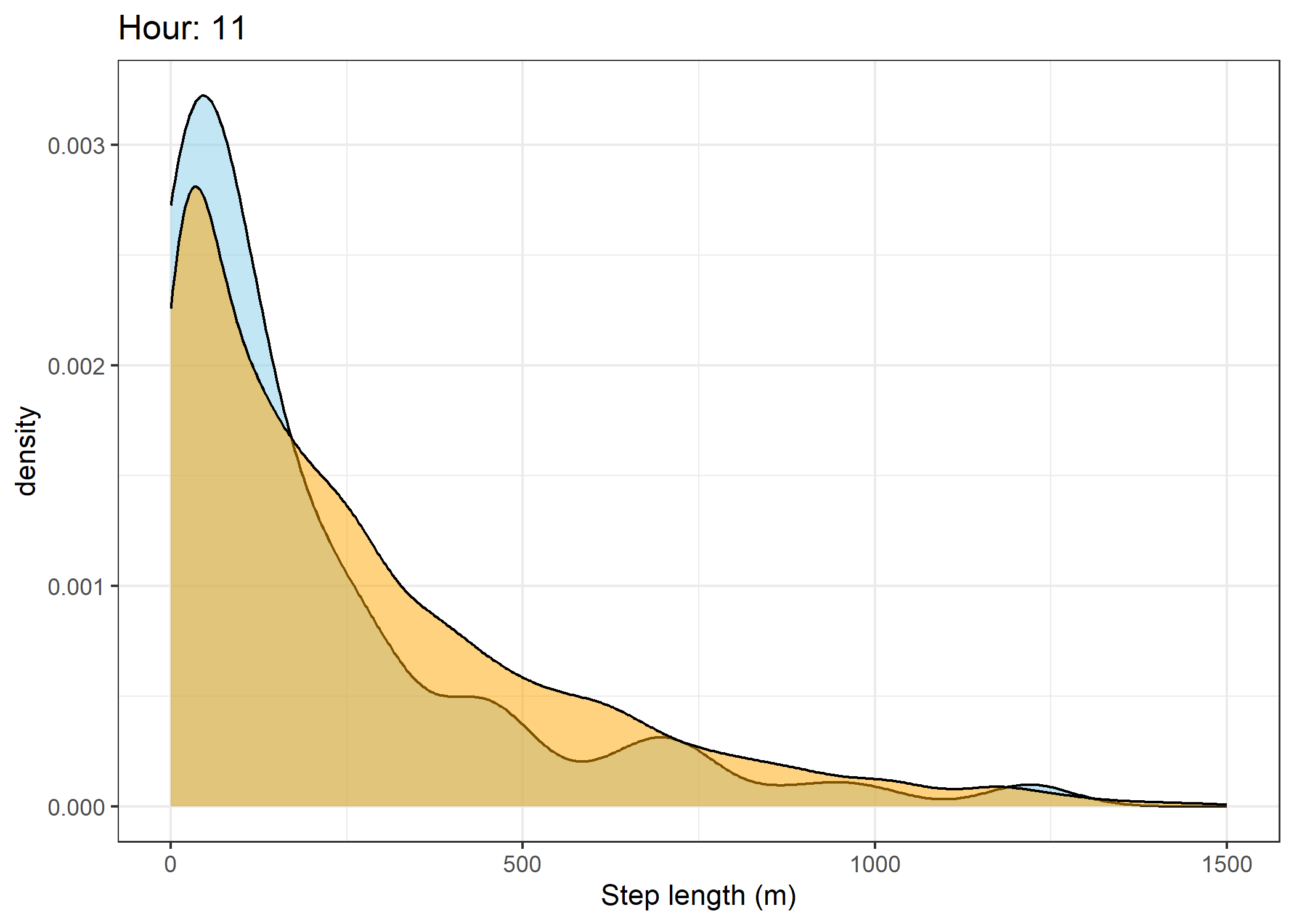

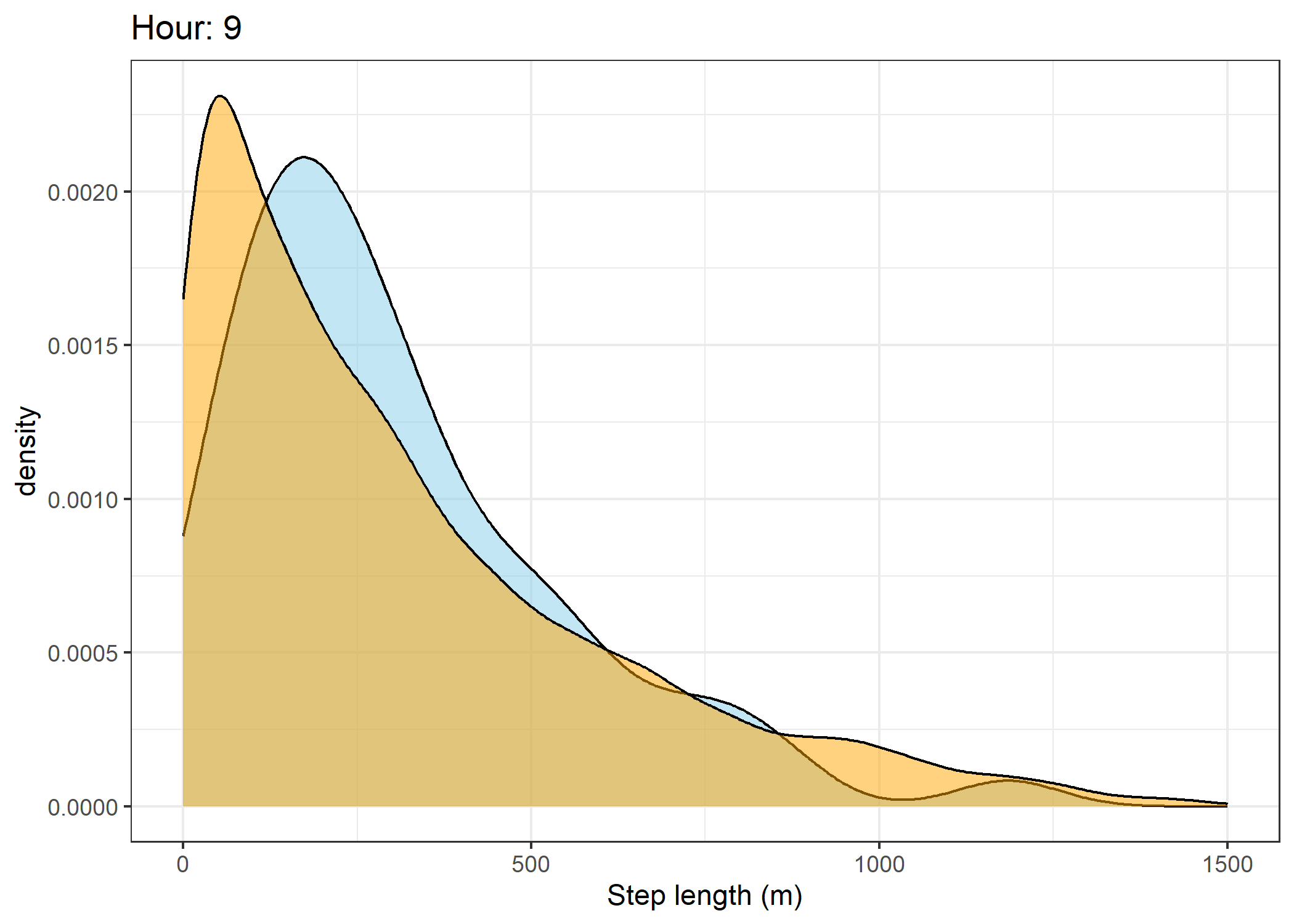

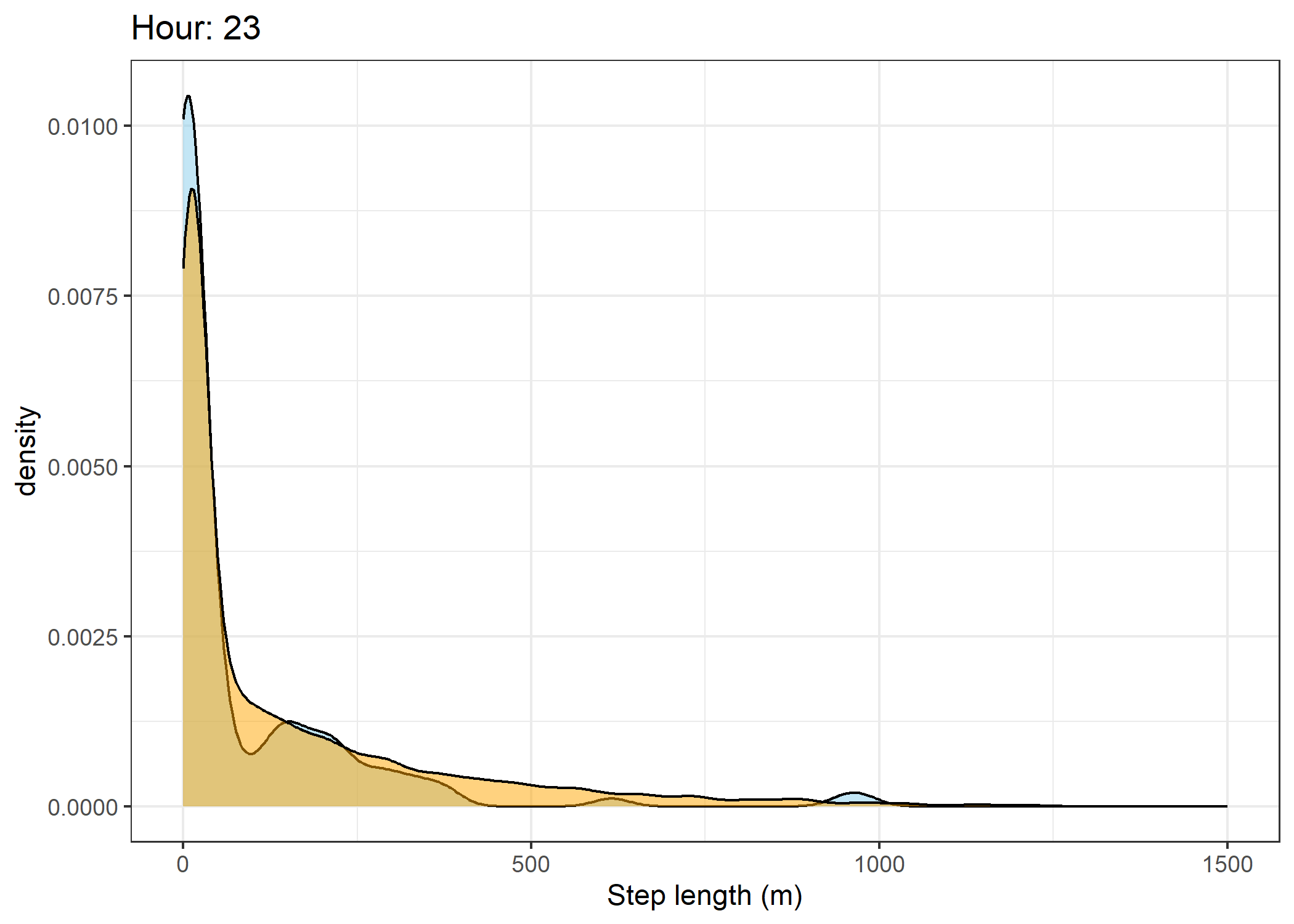

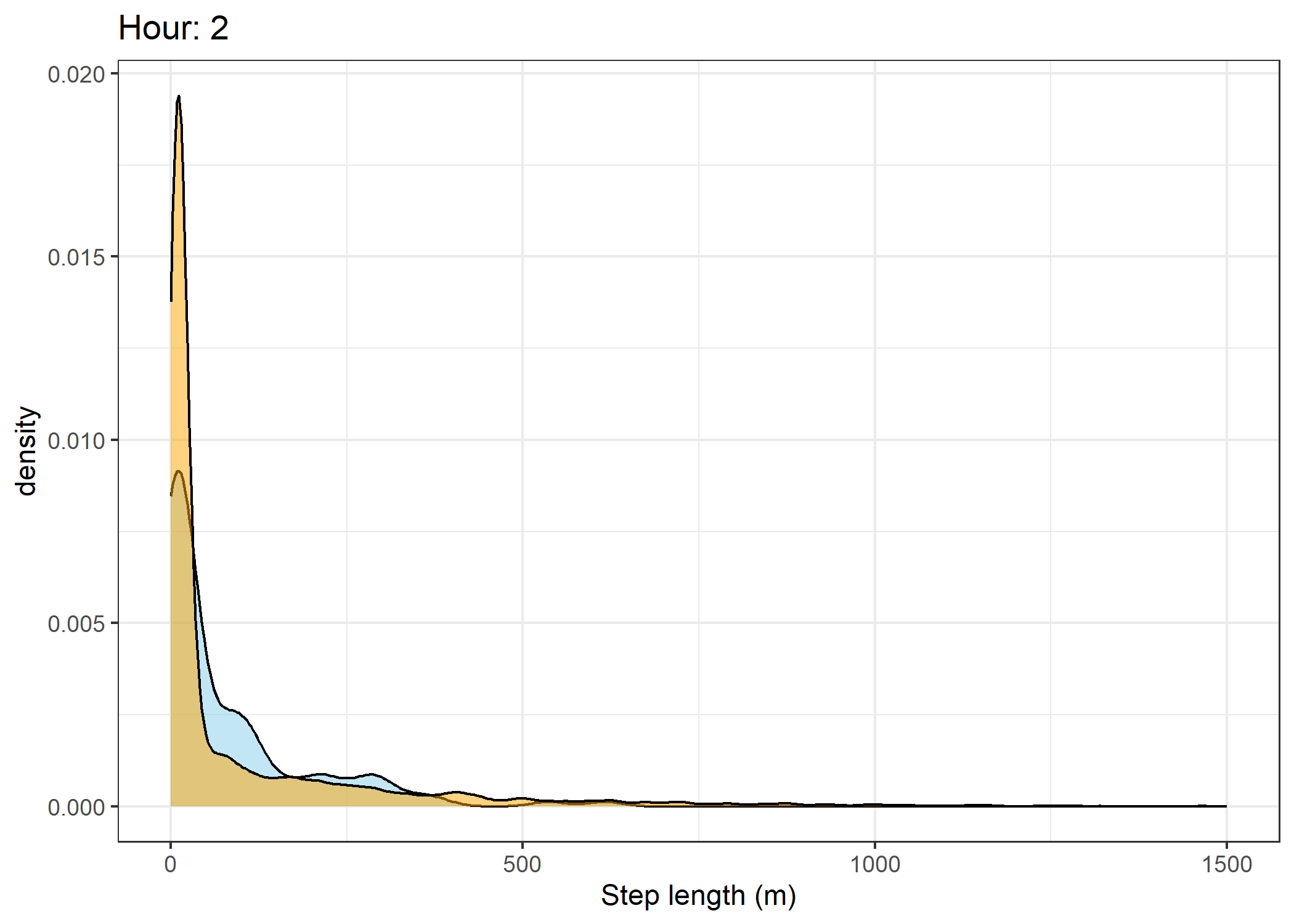

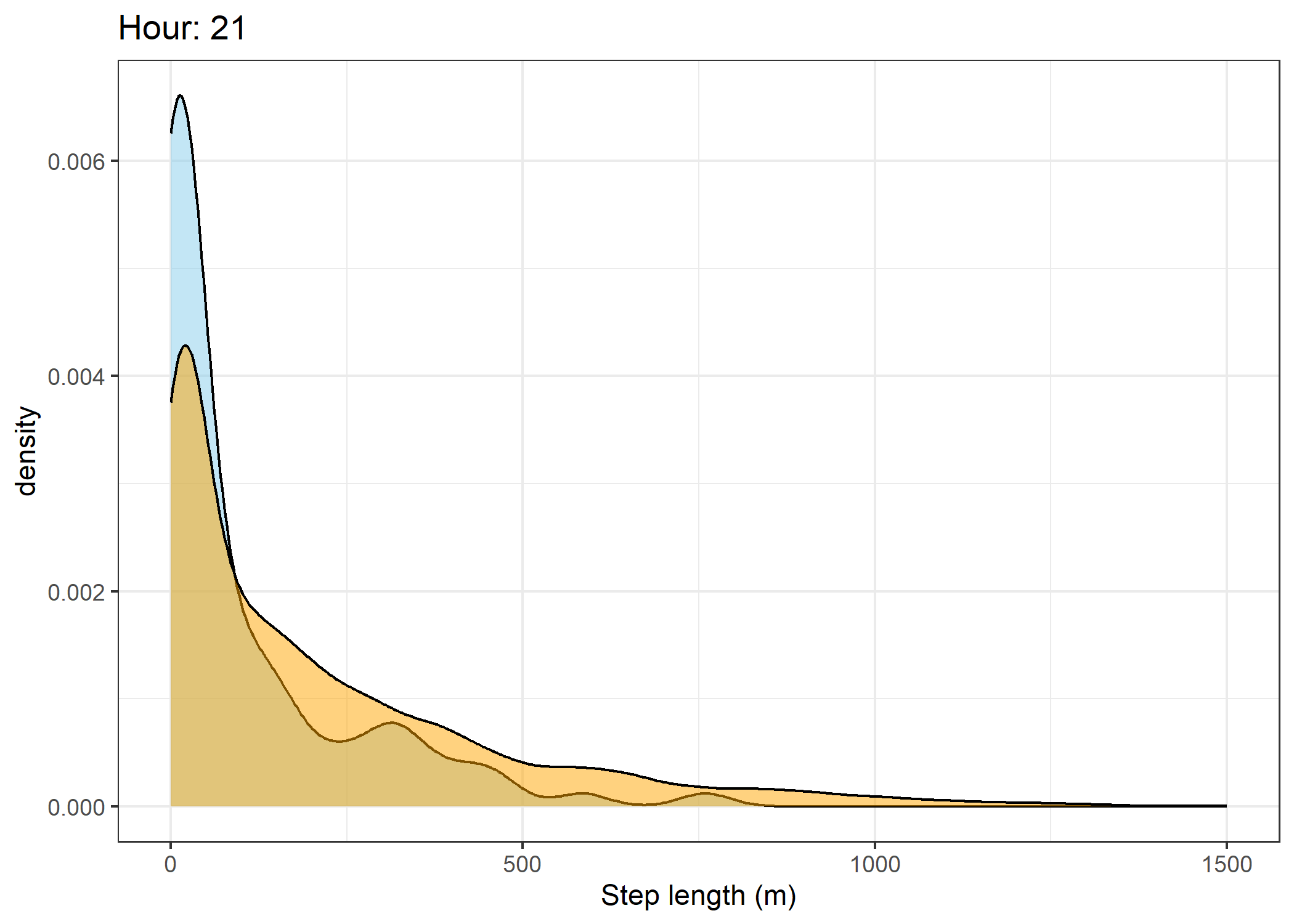

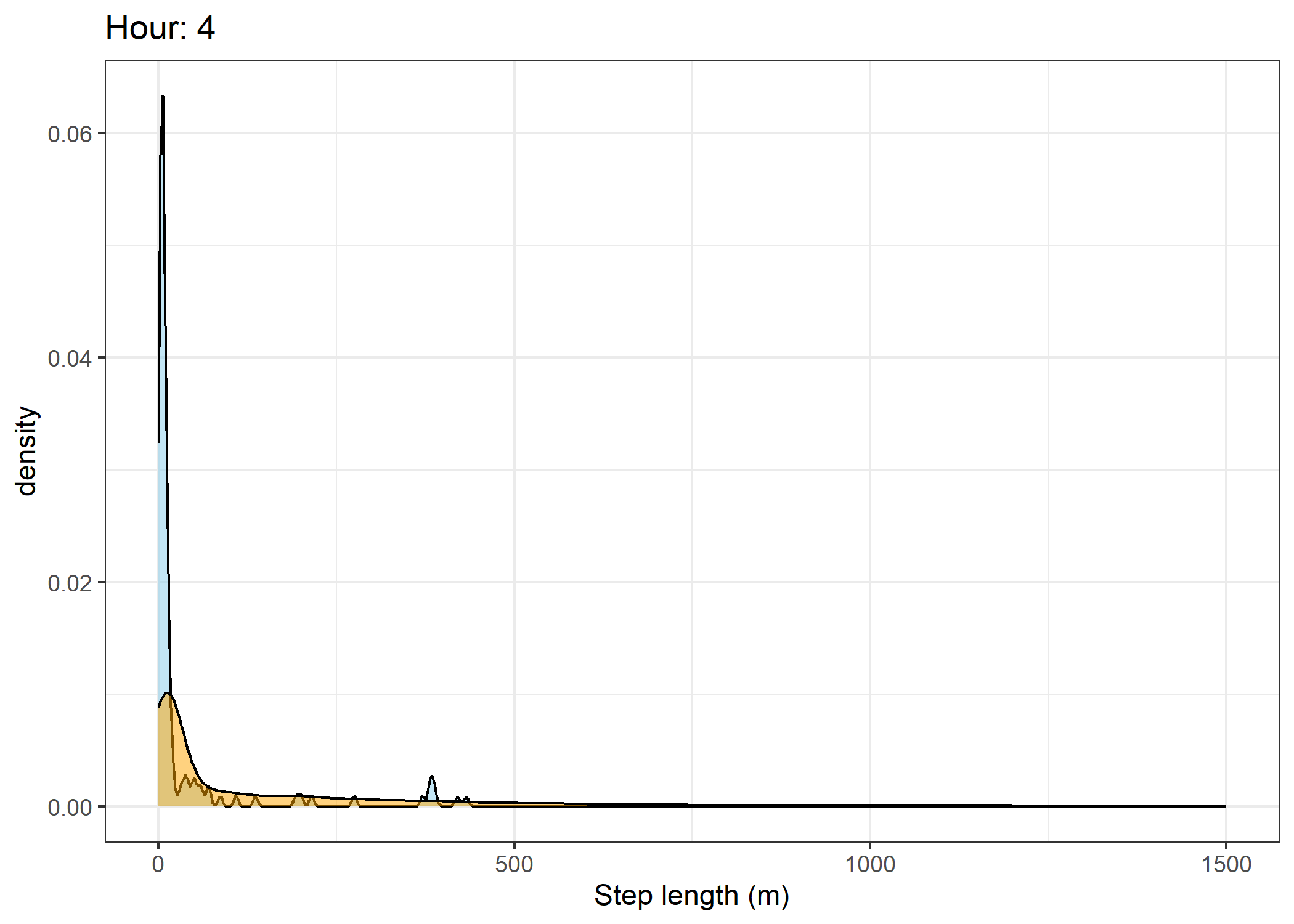

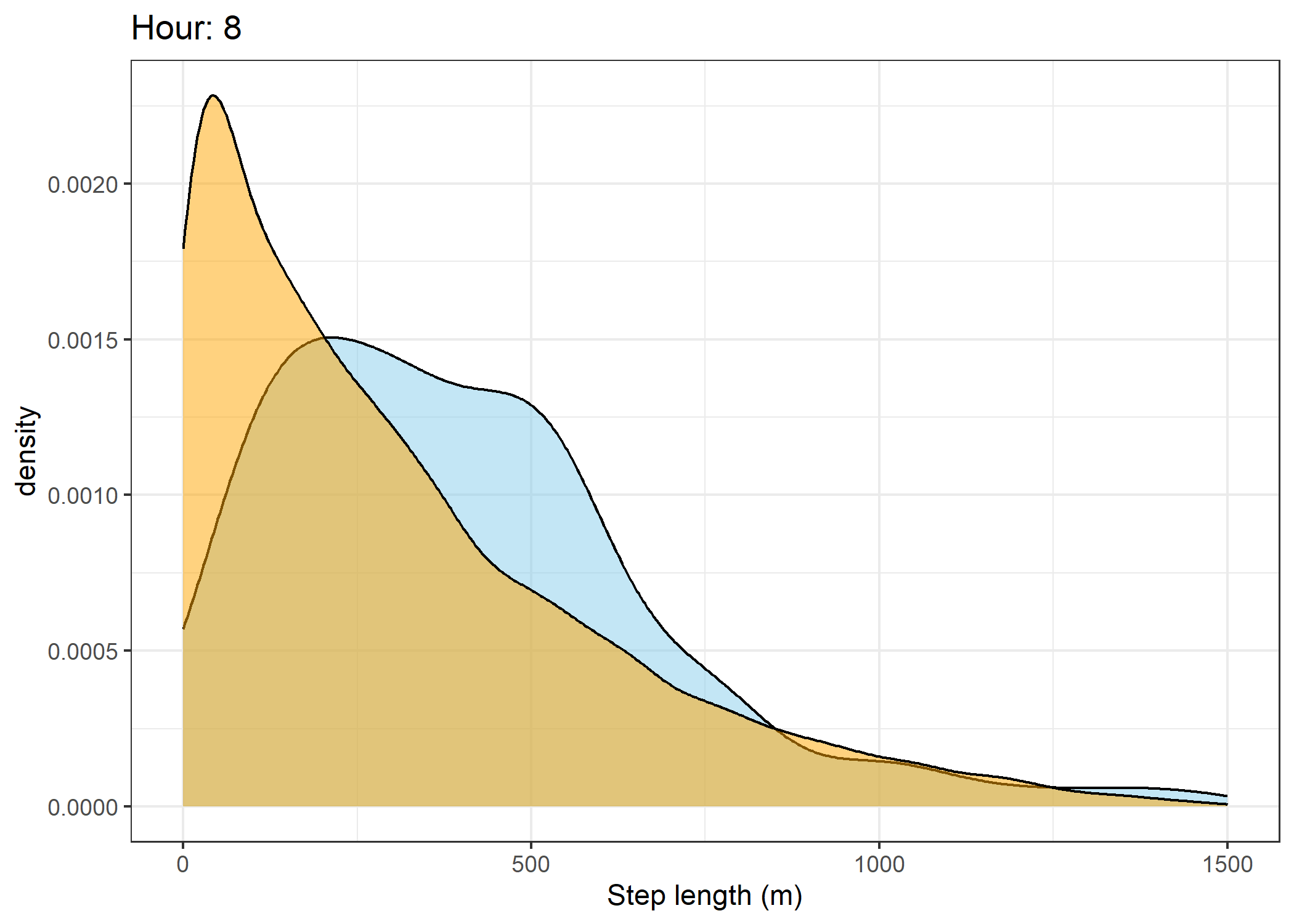

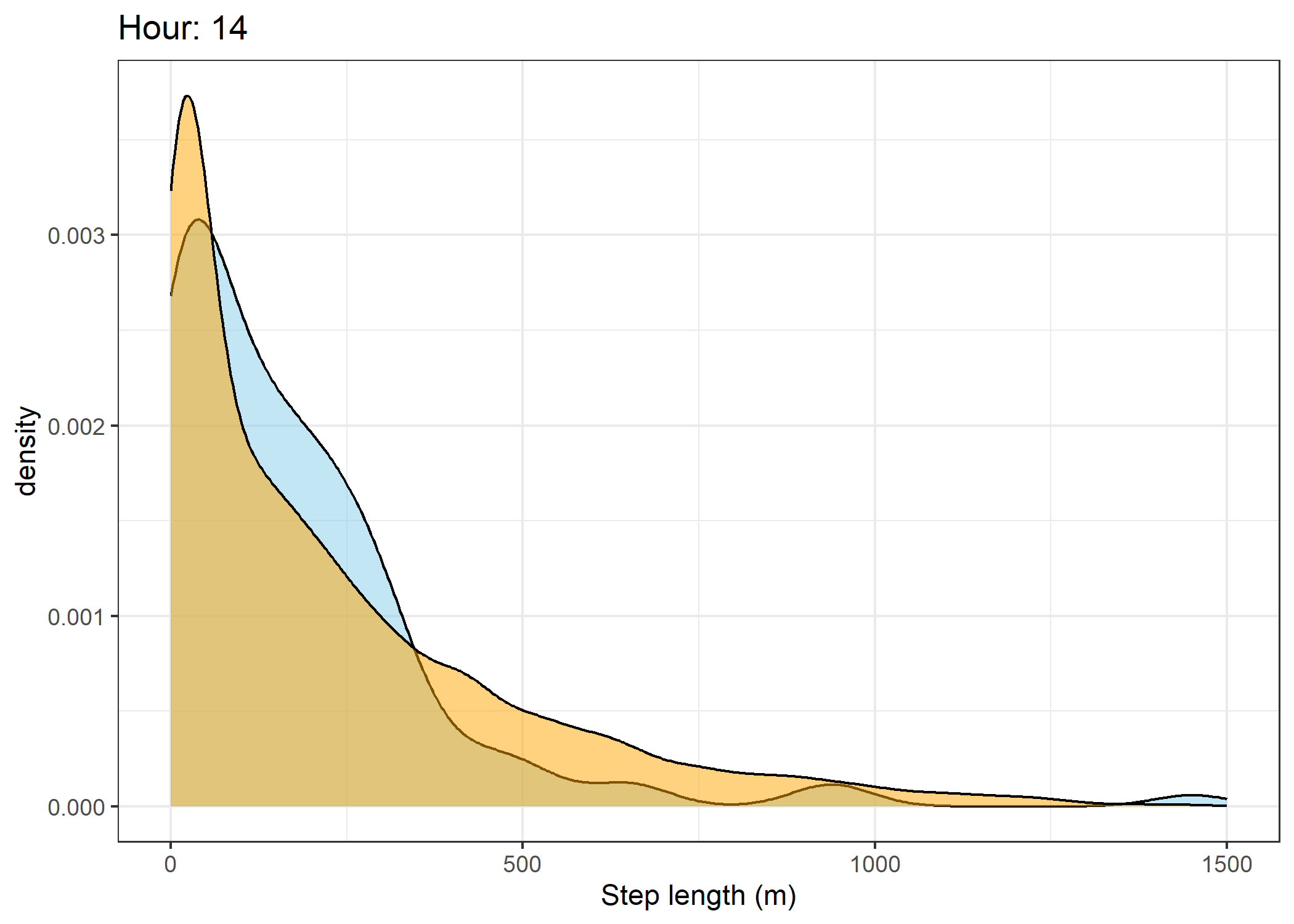

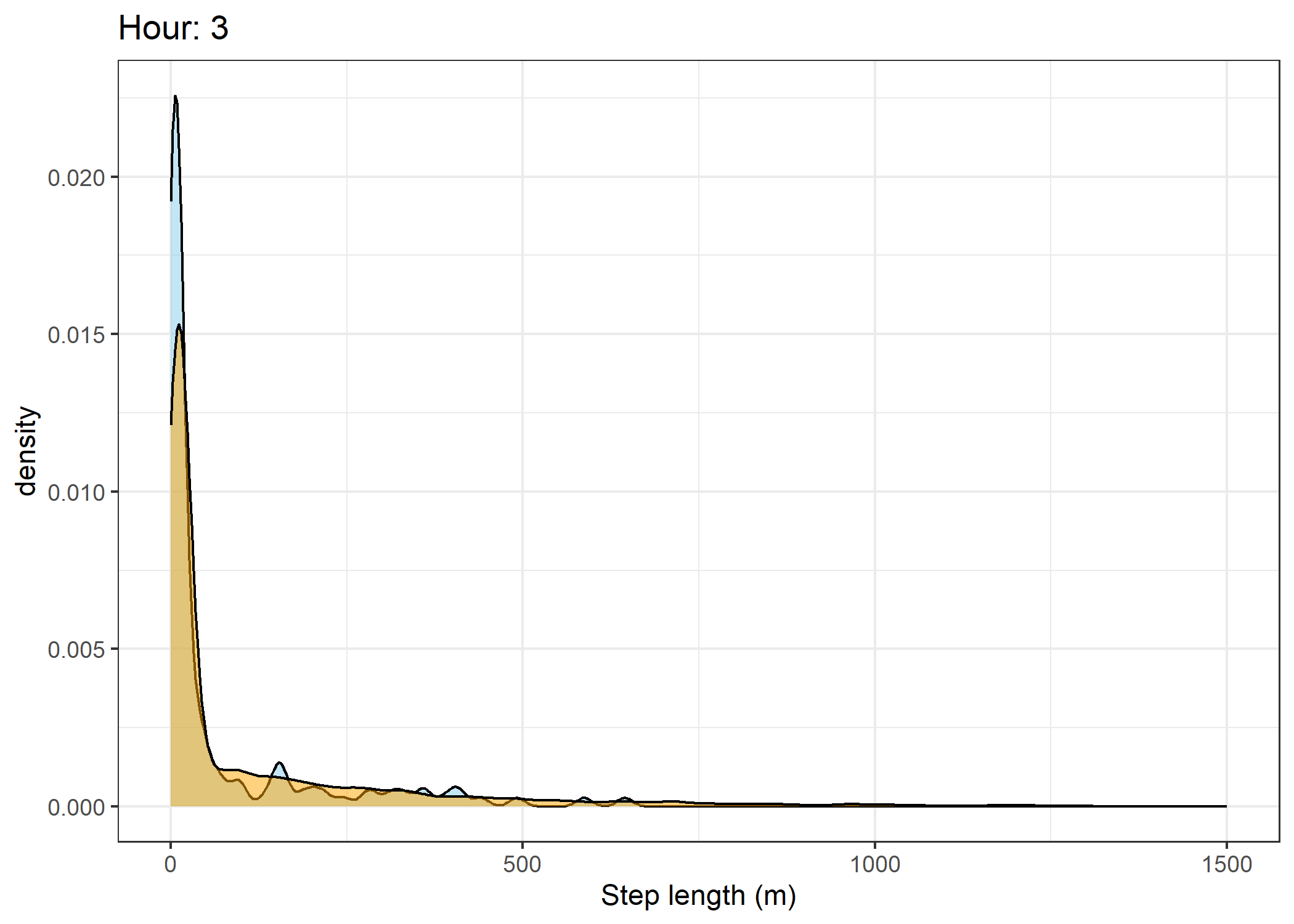

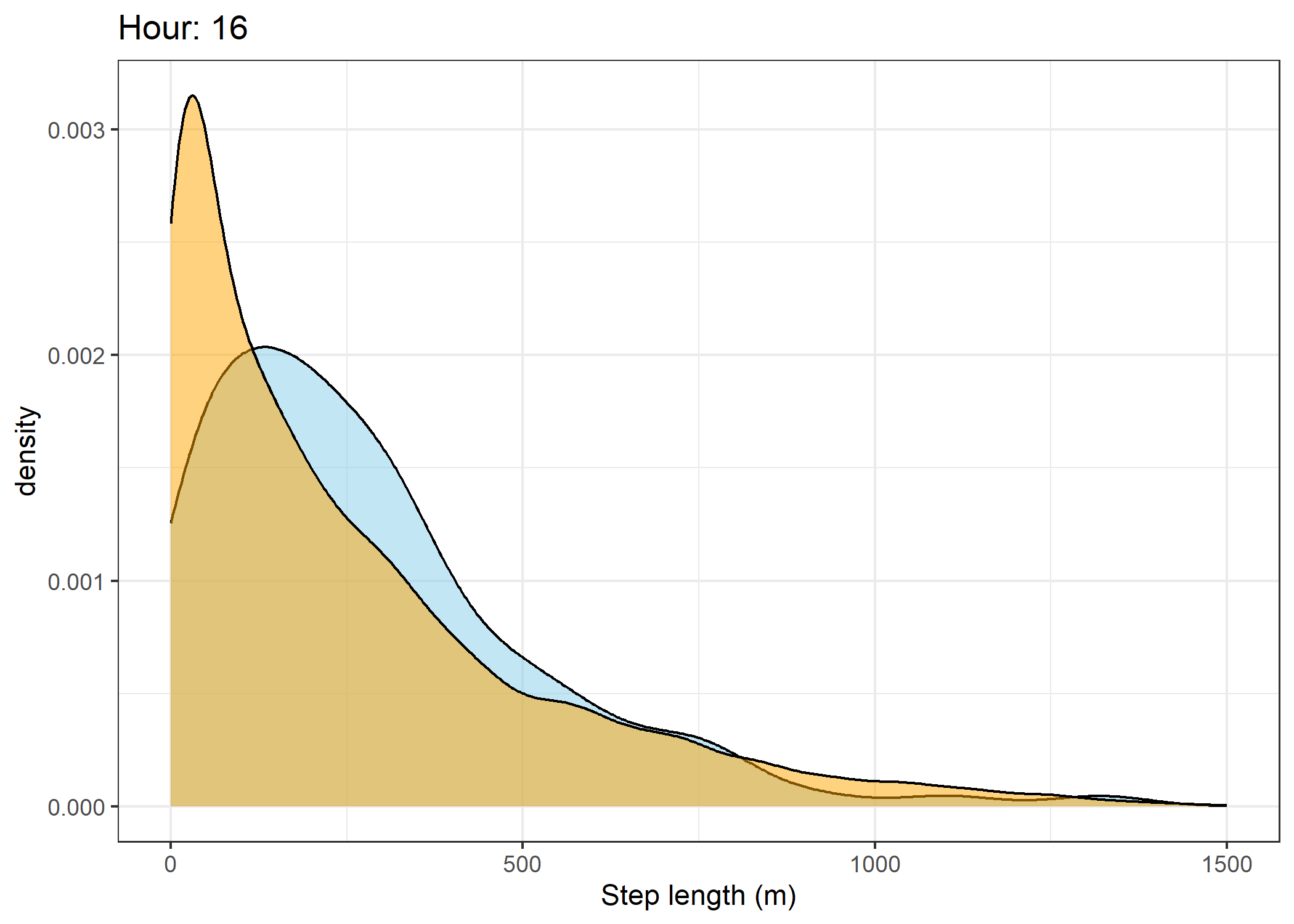

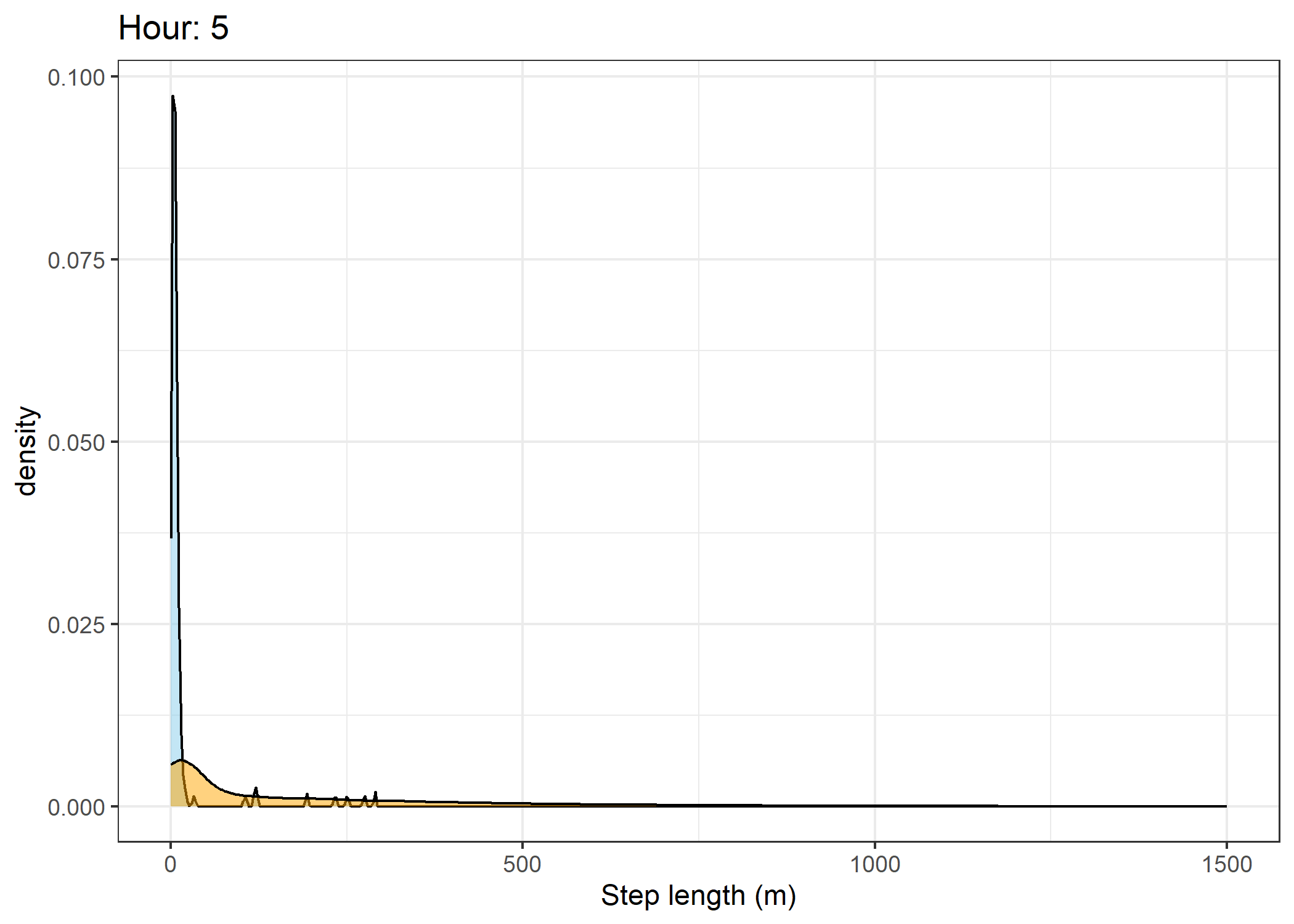

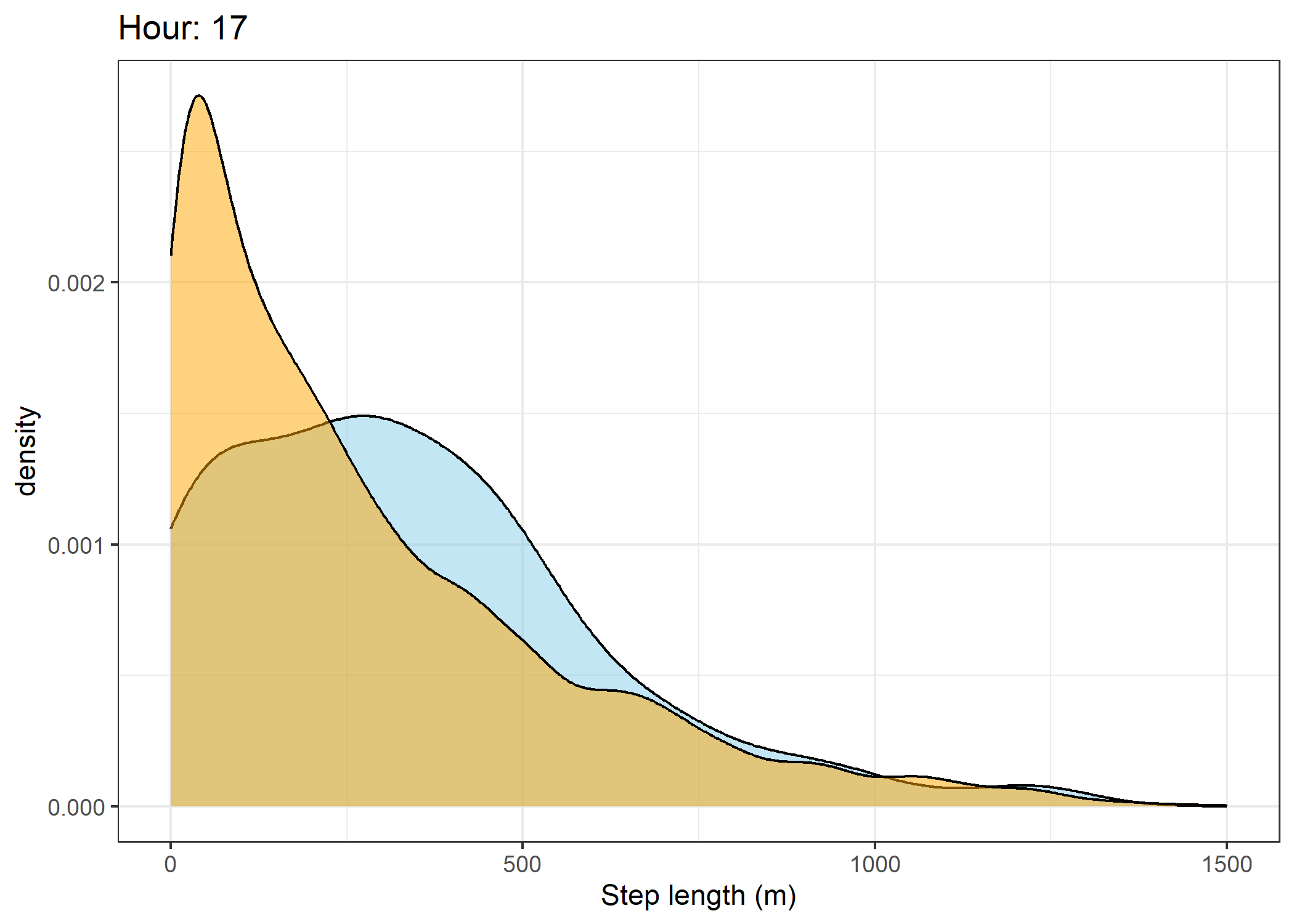

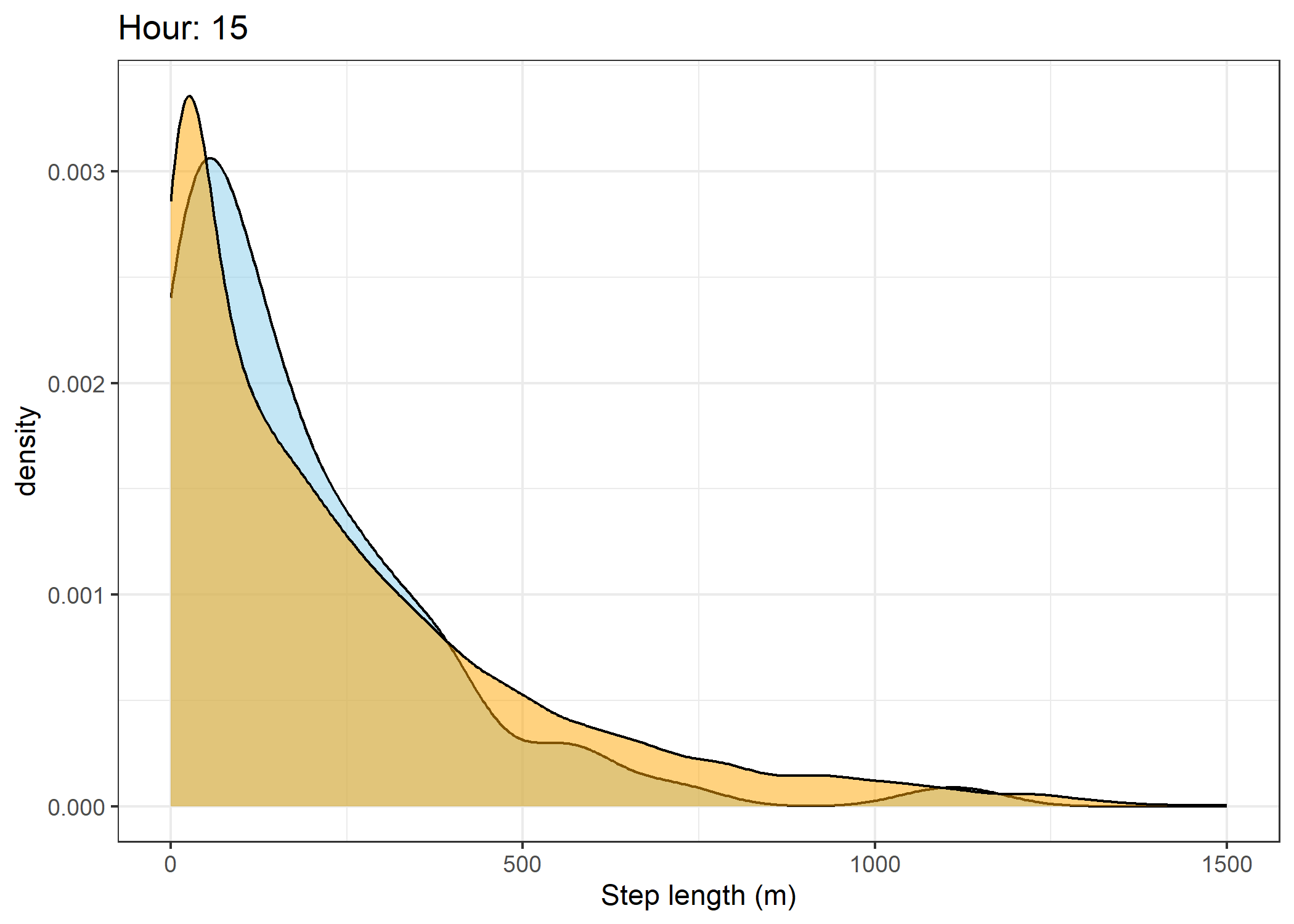

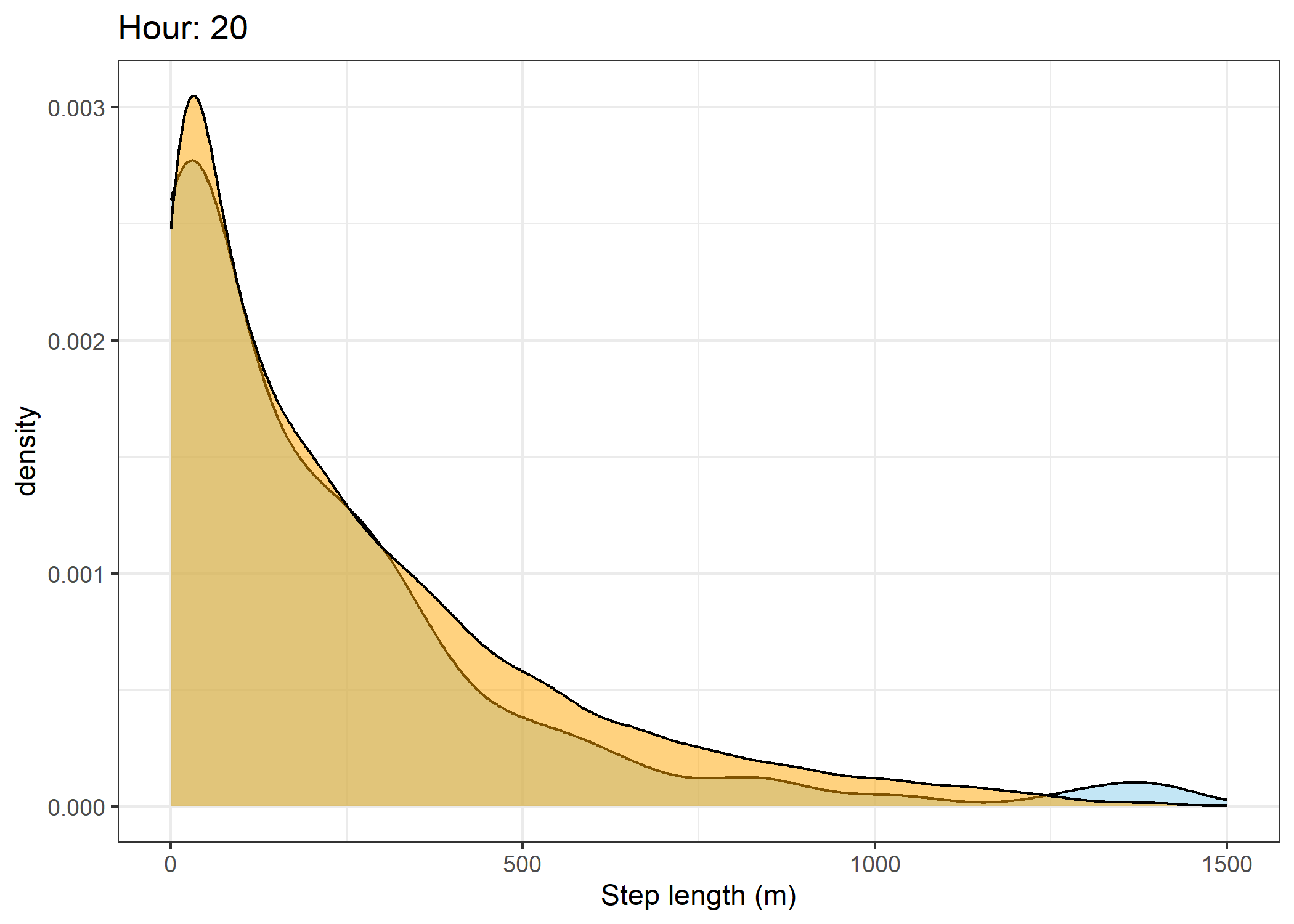

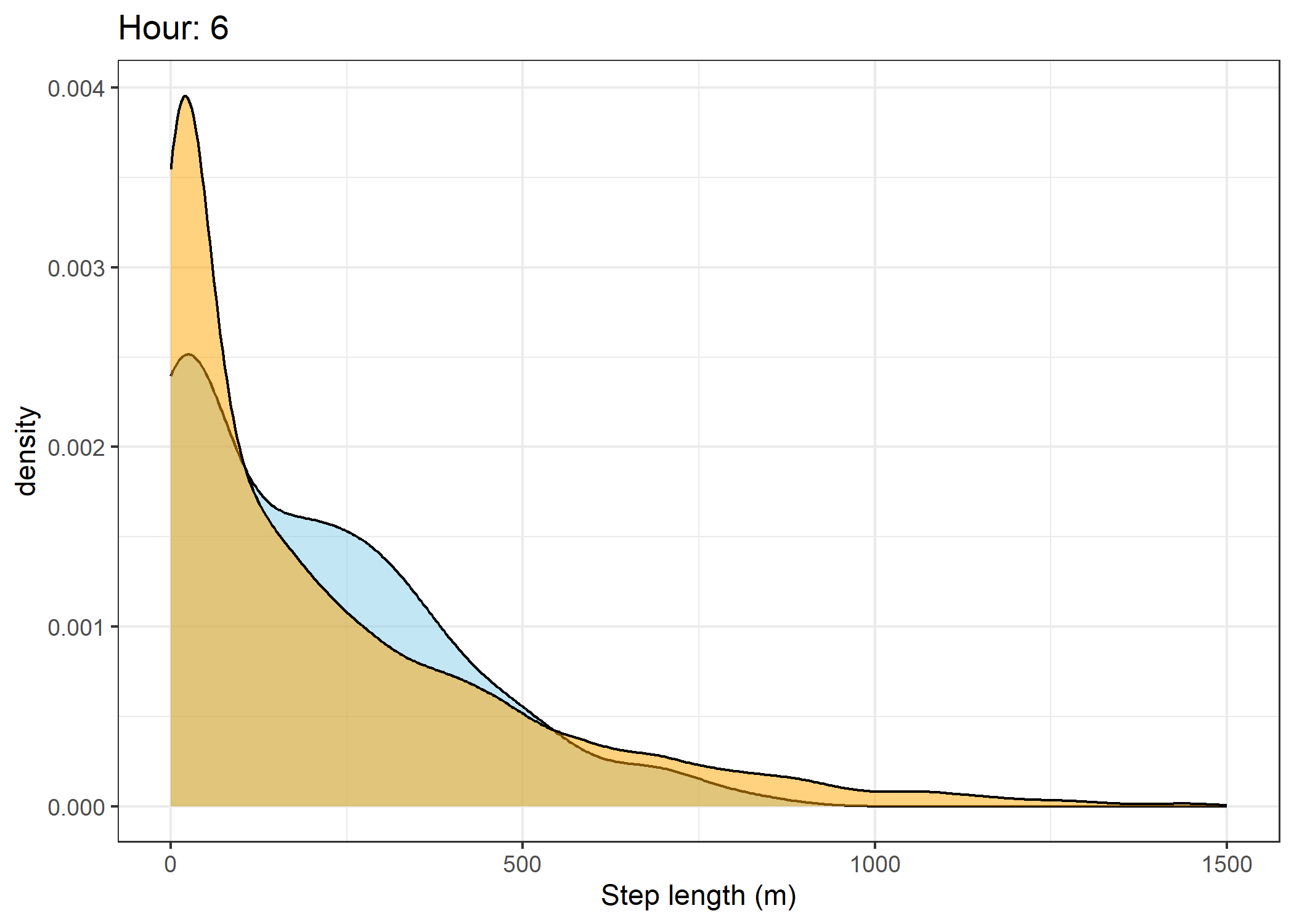

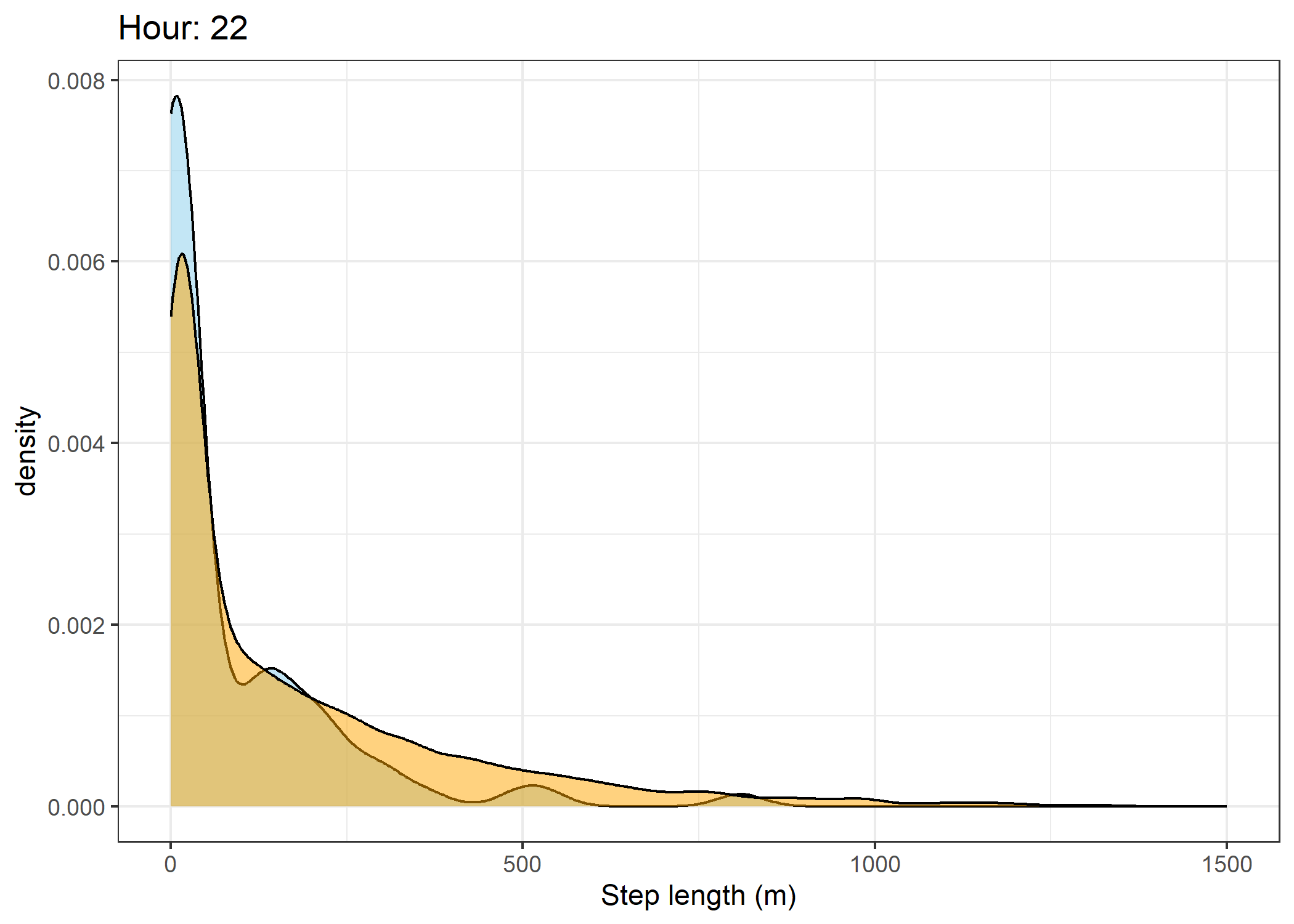

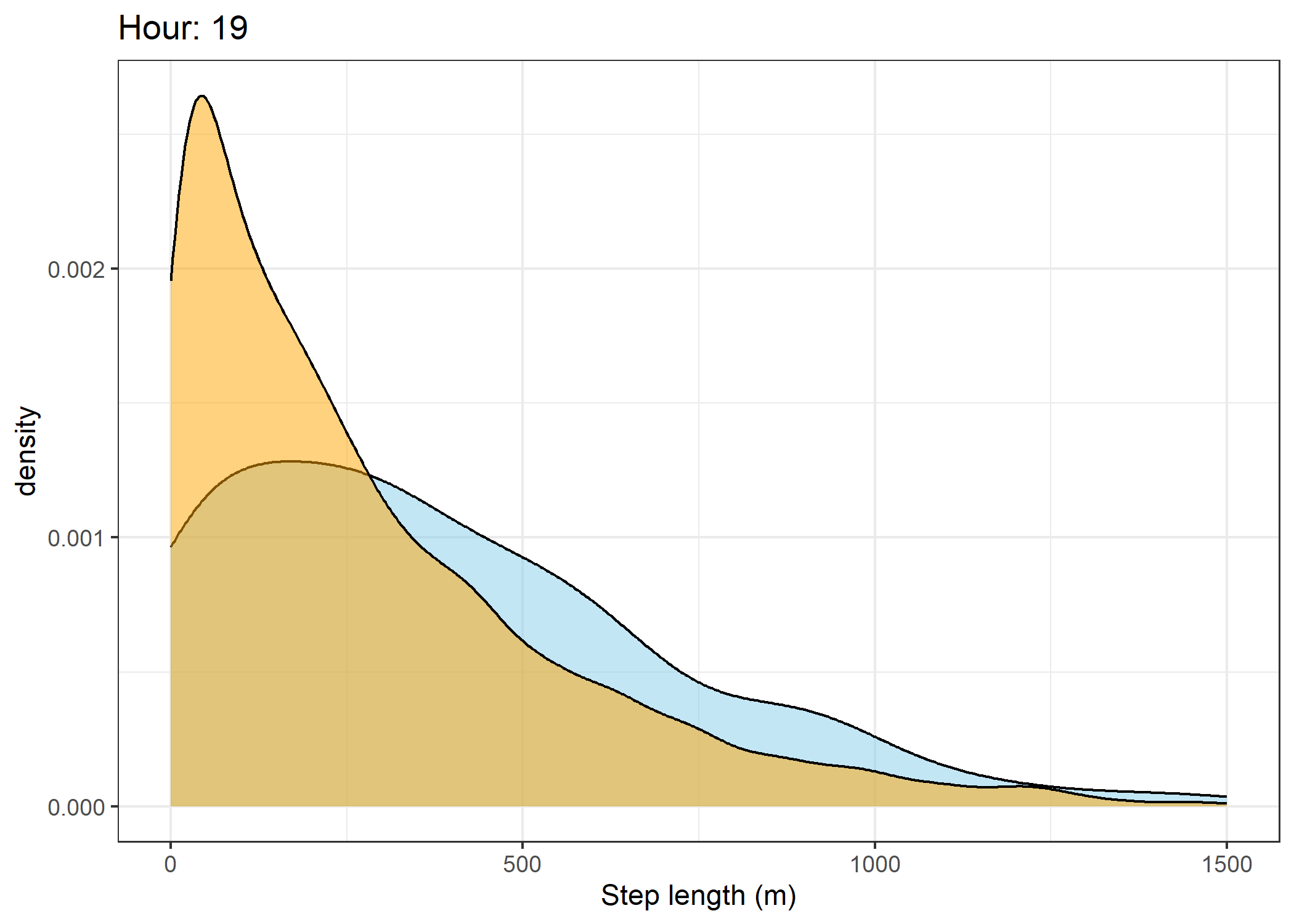

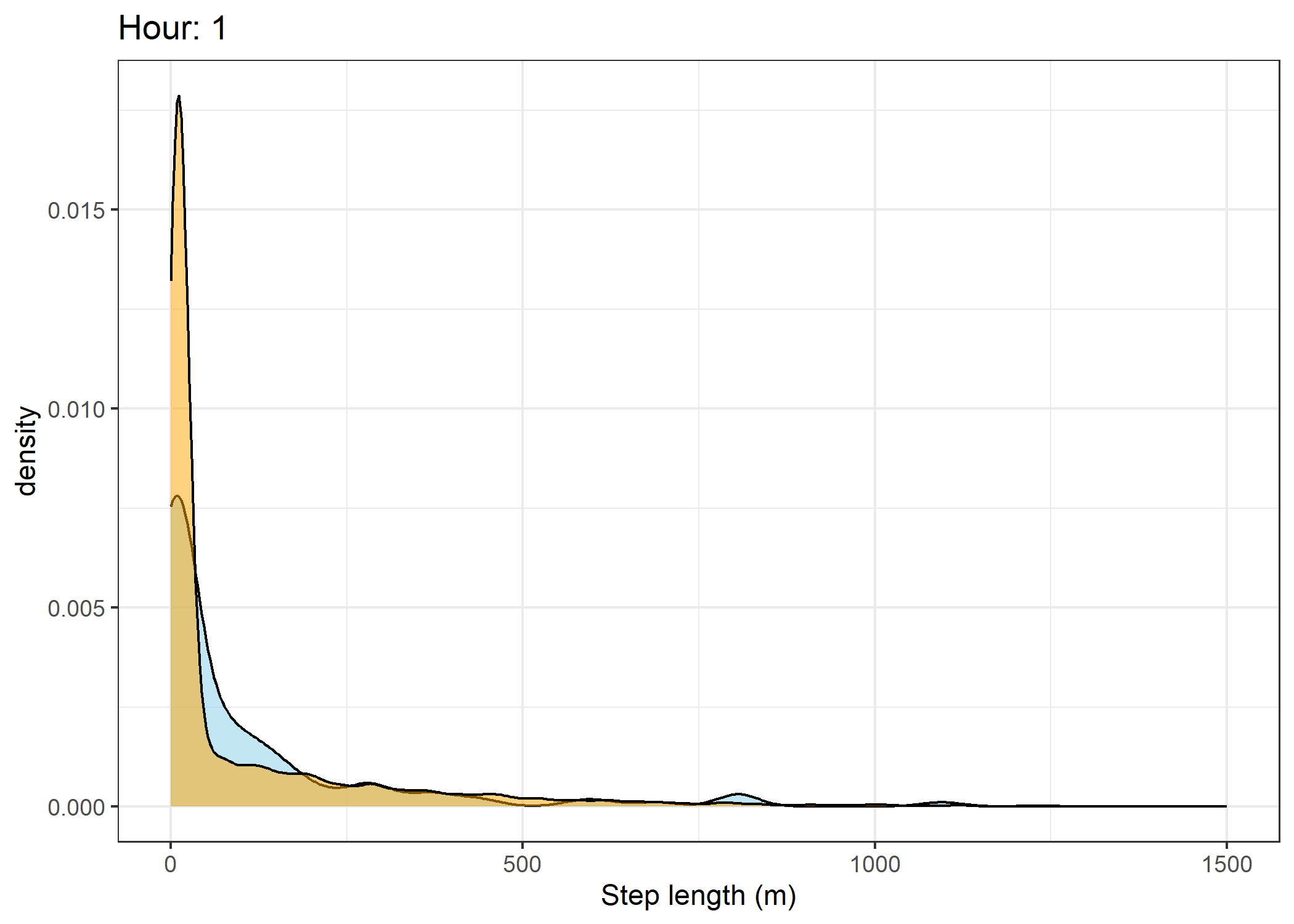

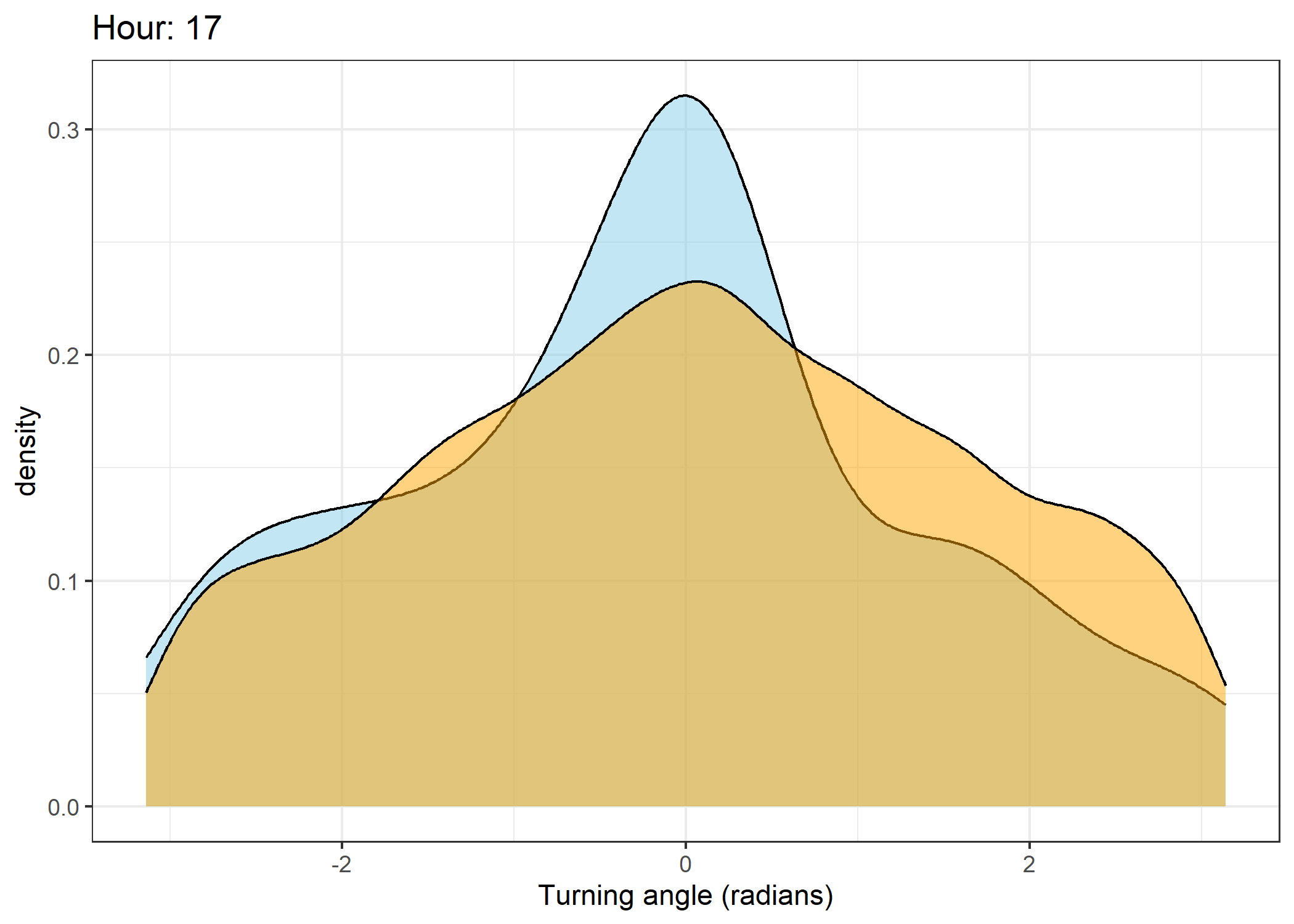

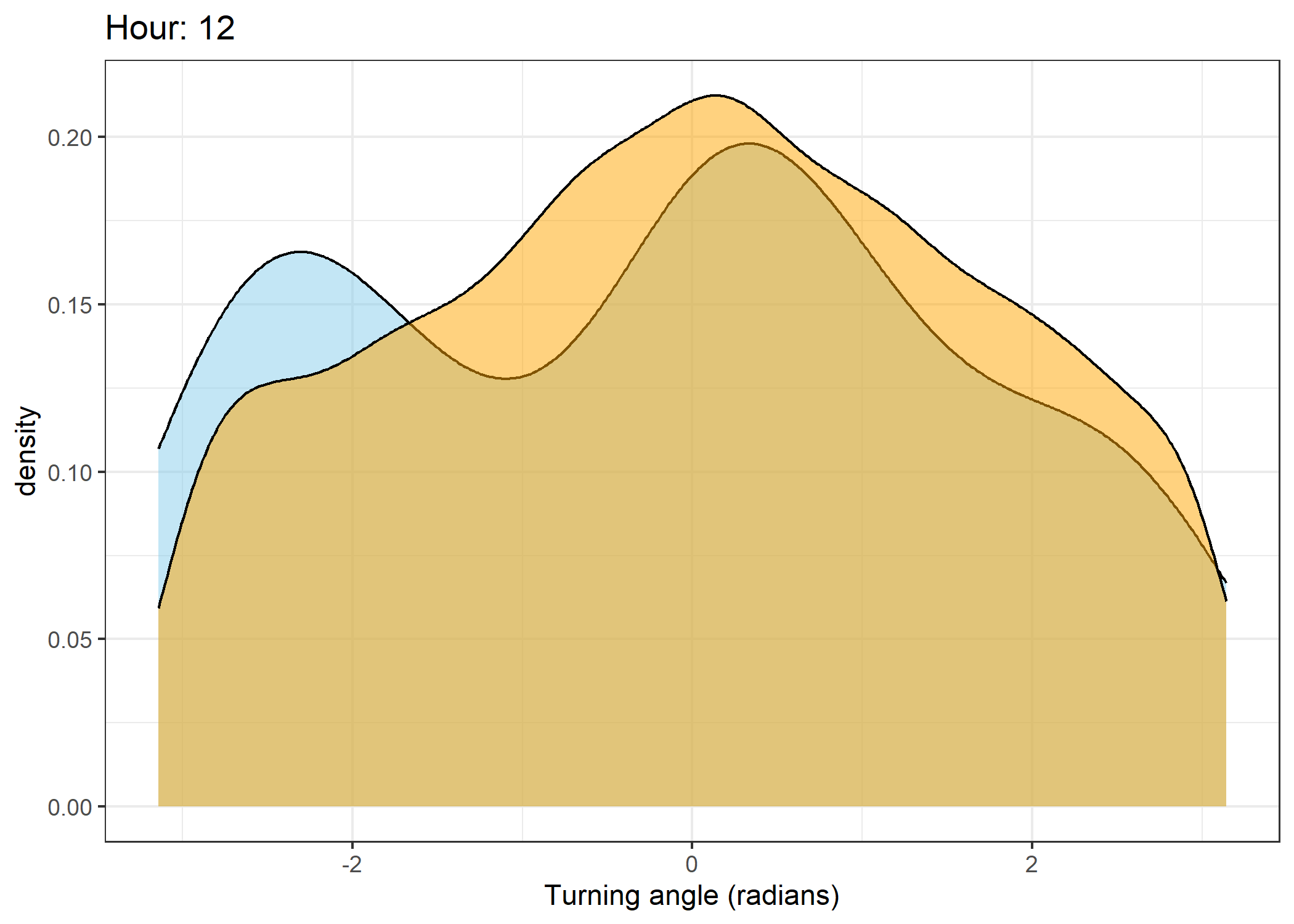

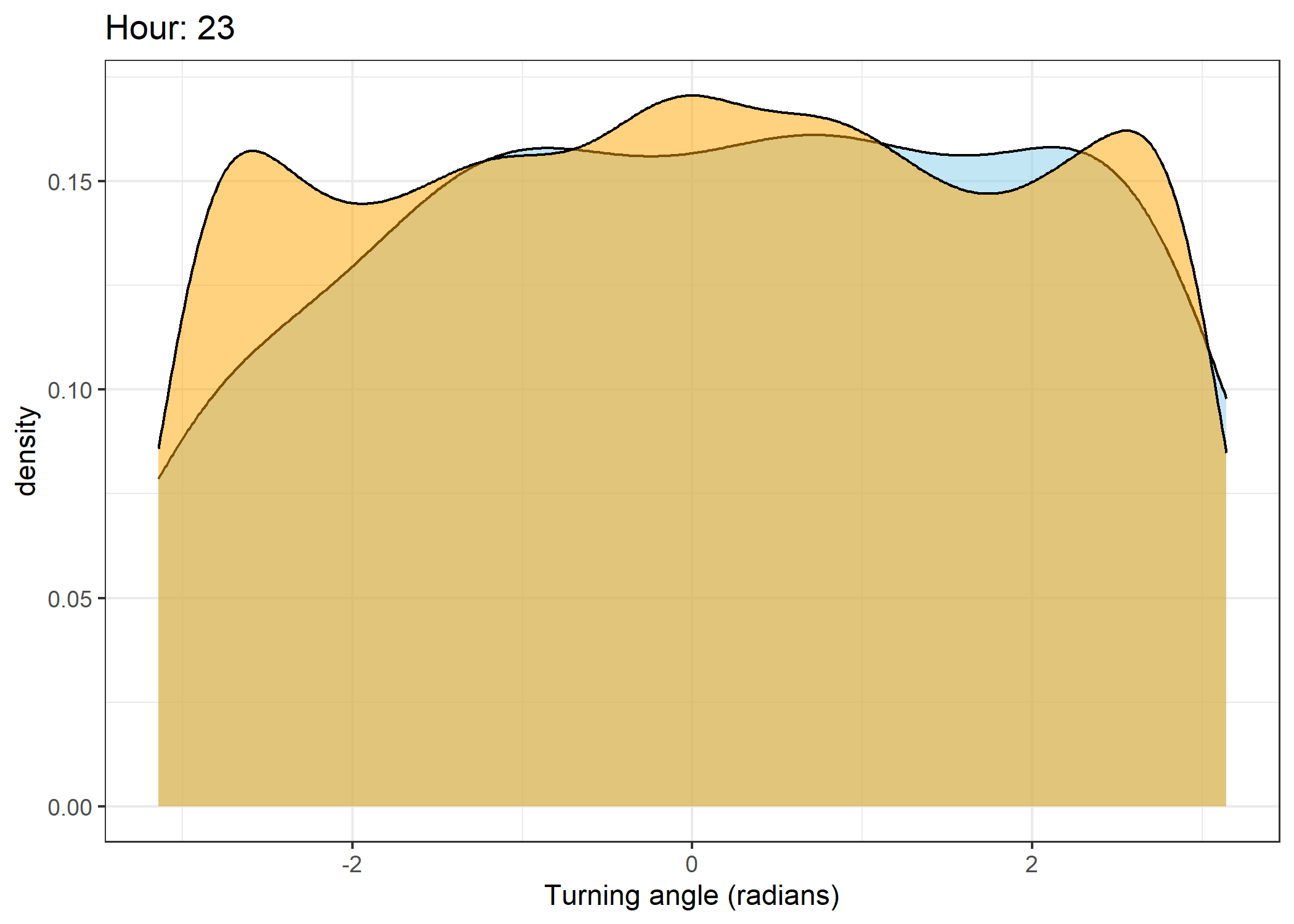

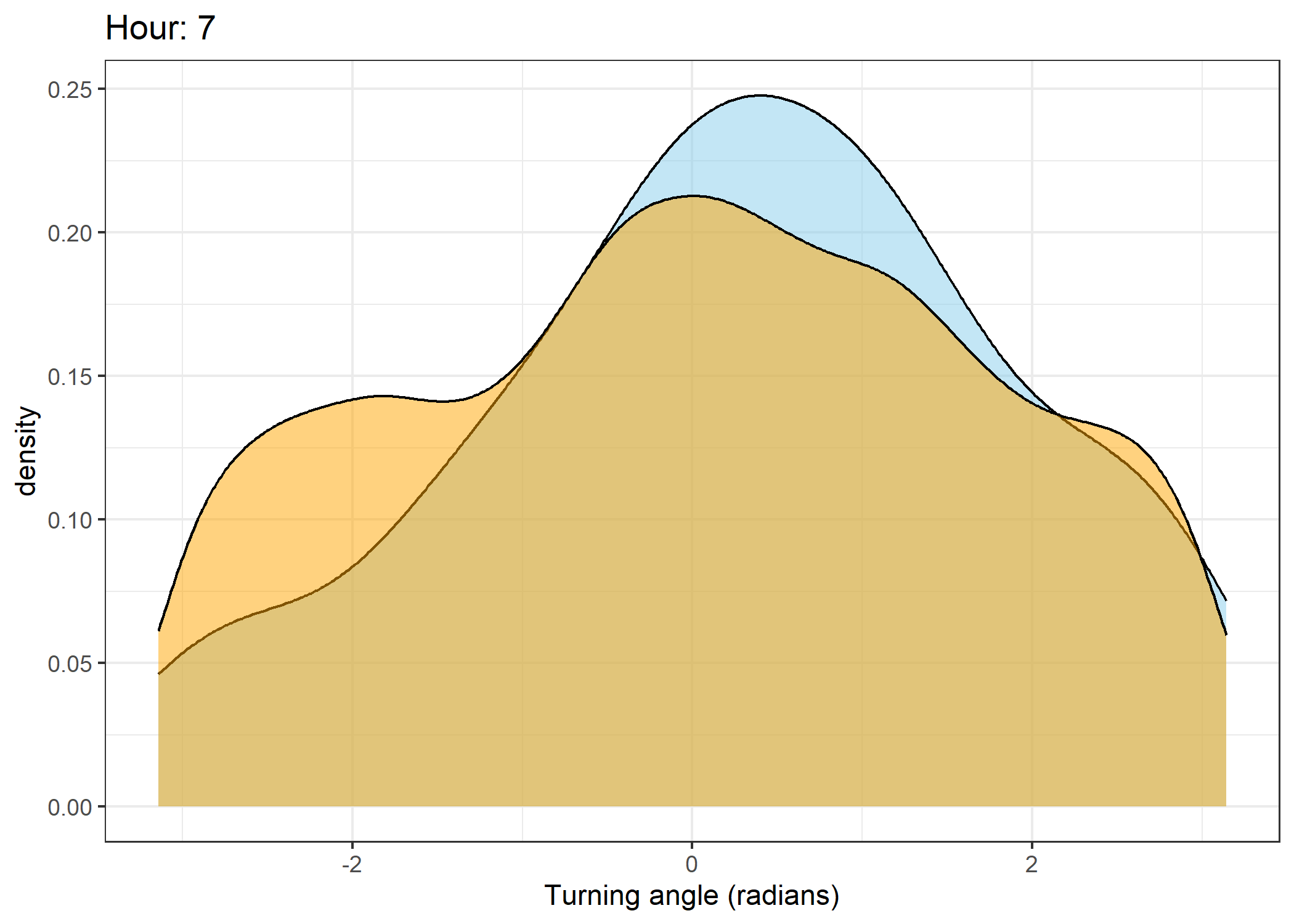

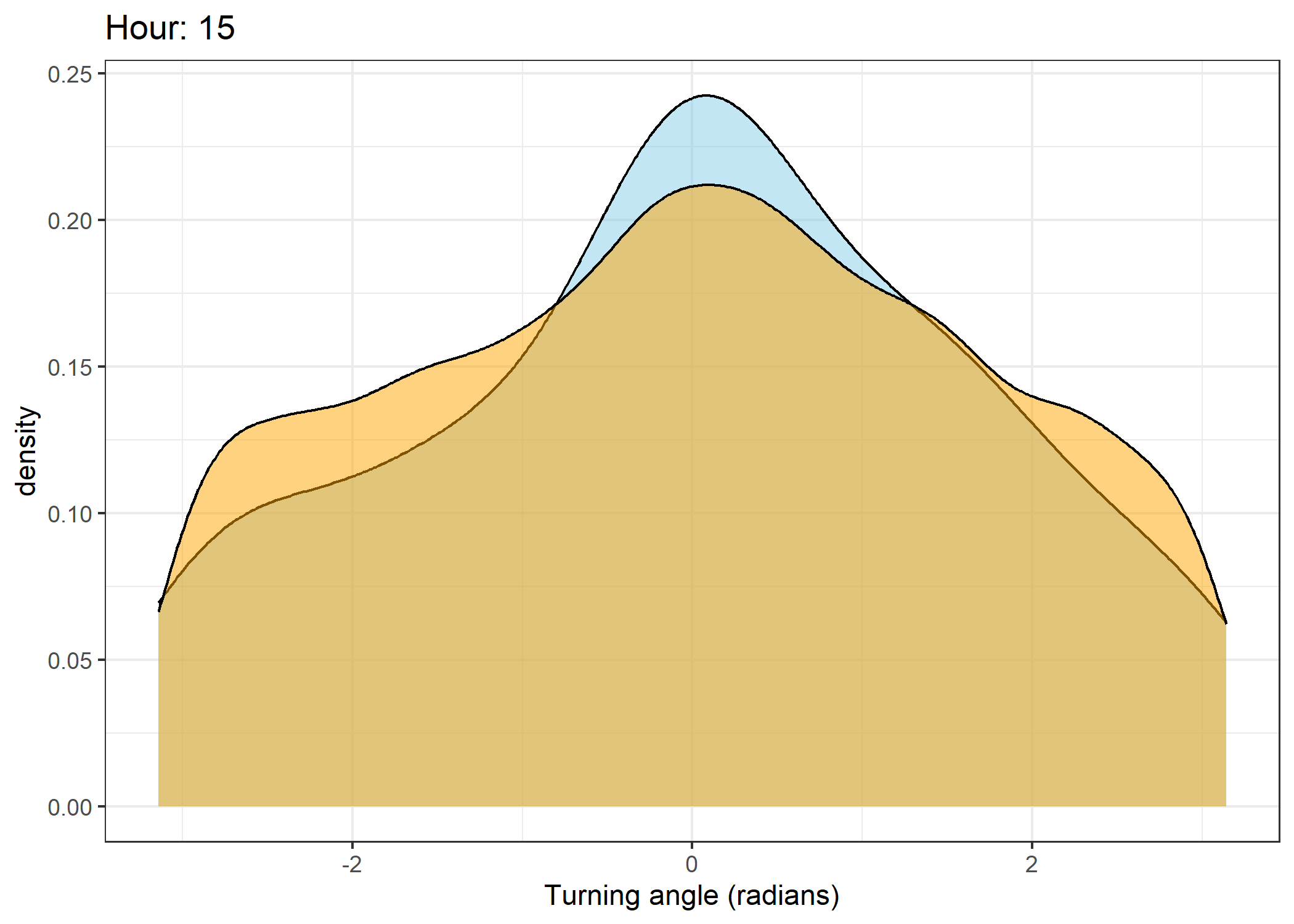

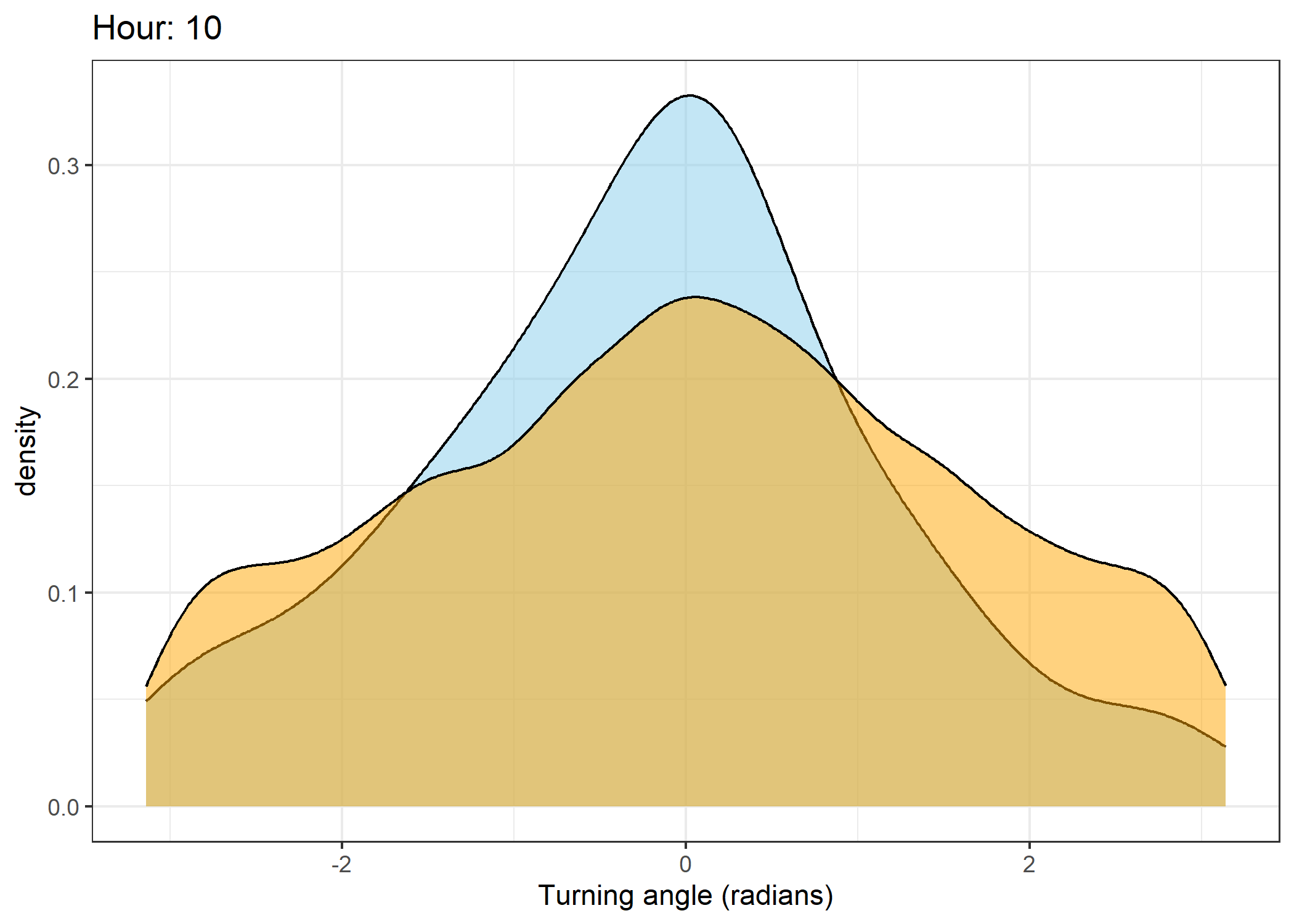

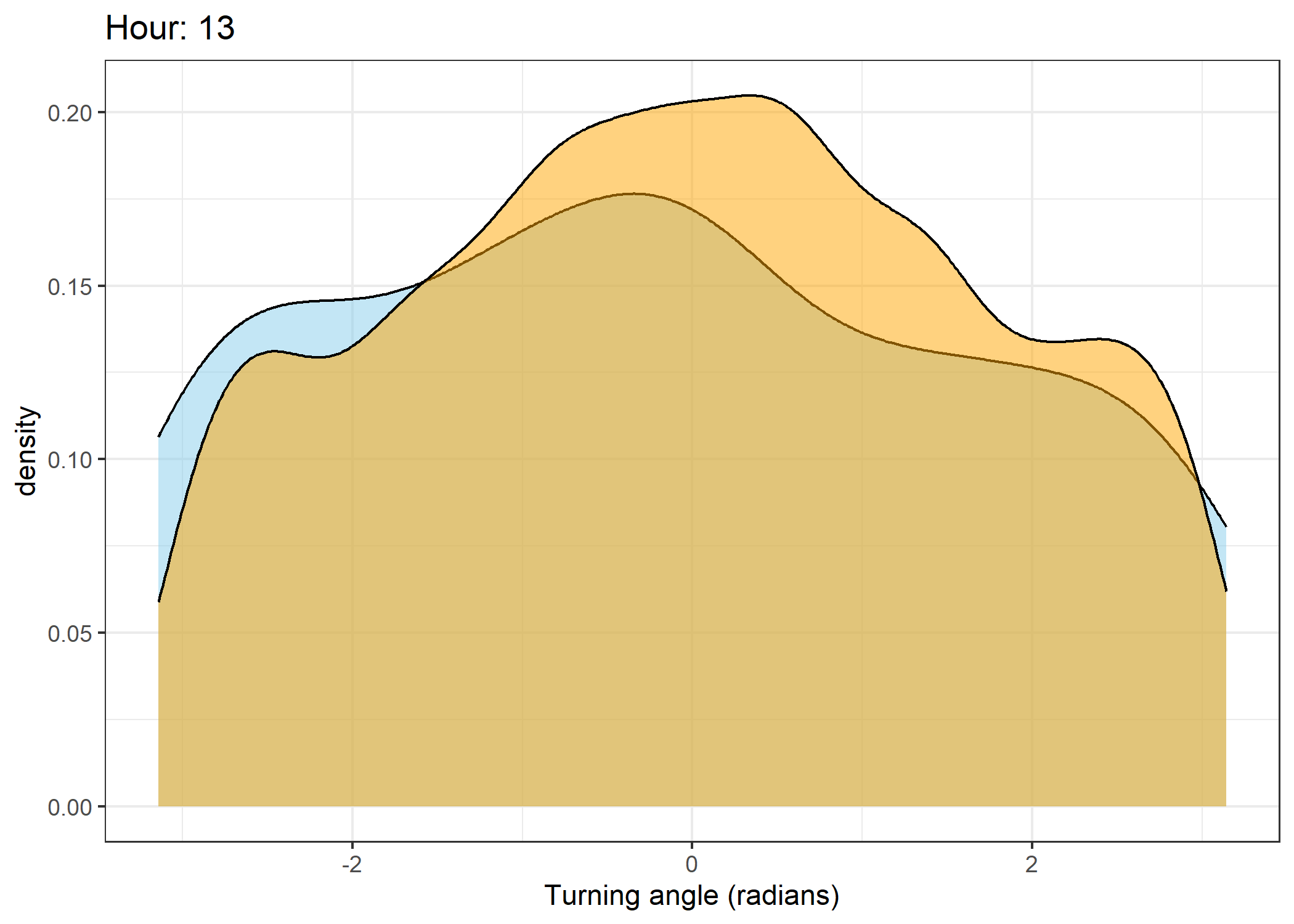

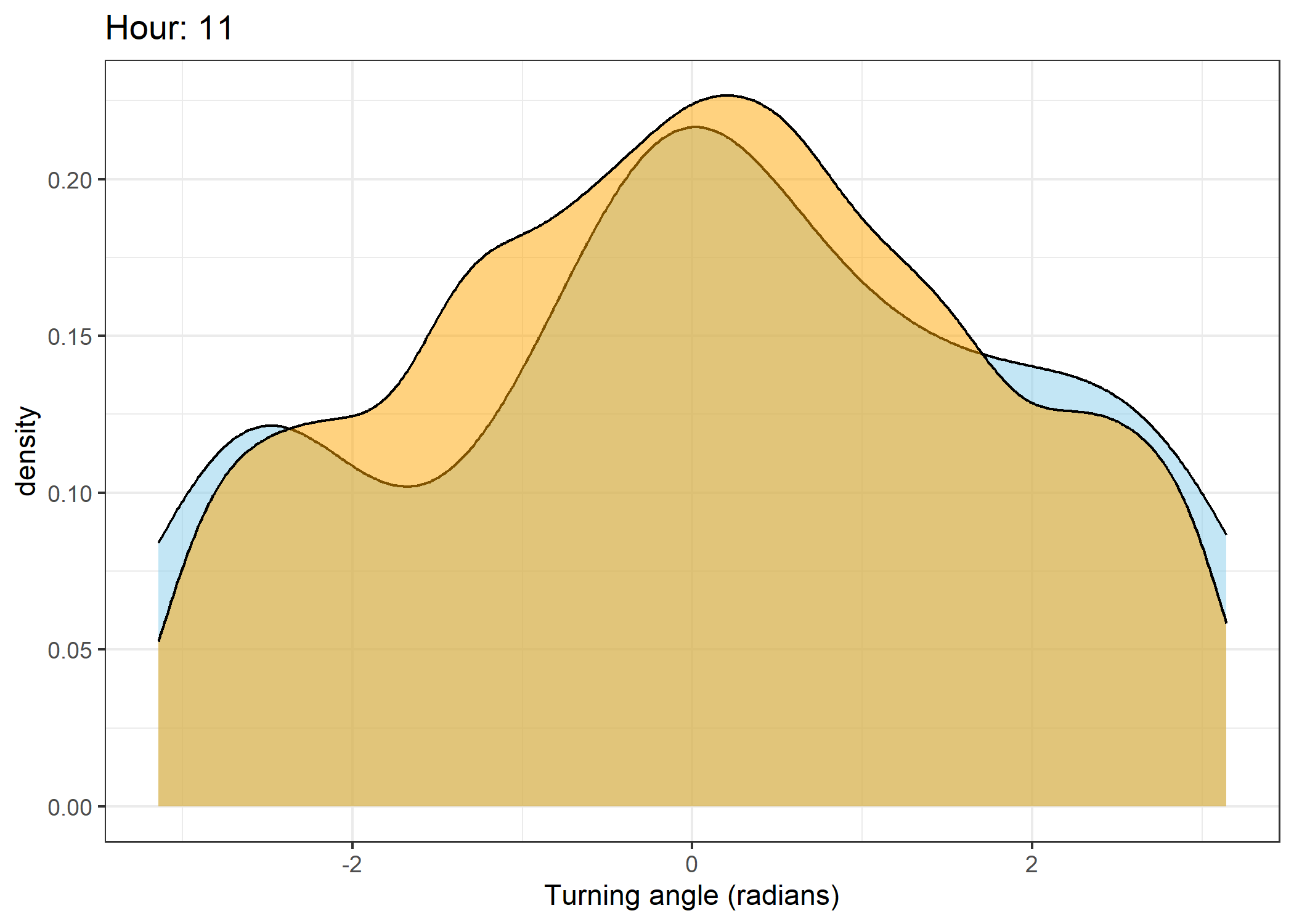

Density of step lengths for each hour

for(i in 0:23) {
  print(ggplot() +
    geom_density(data = all_data %>% filter(id == 2005 & hour_t1 == i),
                 aes(x = sl),
                 fill = "skyblue", colour = "black", alpha = 0.5) +
    geom_density(data = all_data %>% filter(!id == 2005 & hour_t1 == i),
                 aes(x = sl),
                 fill = "orange", colour = "black", alpha = 0.5) +
      scale_x_continuous("Step length (m)", limits = c(0, 1500)) +
      ggtitle(paste0("Hour: ", i)) +
    theme_bw())
}

Warning: Removed 3 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 52 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 5 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 35 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 5 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 36 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 6 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 39 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 2 rows containing non-finite outside the scale range
(`stat_density()`).
Removed 39 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 7 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 78 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 12 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 199 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 15 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 320 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 18 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 377 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 6 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 266 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 3 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 164 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 2 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 88 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 1 row containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 44 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 1 row containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 54 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 3 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 57 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 7 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 74 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 8 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 161 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 9 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 273 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 12 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 398 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 9 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 457 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 5 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 228 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 3 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 103 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 2 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 60 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 3 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 101 rows containing non-finite outside the scale range
(`stat_density()`).

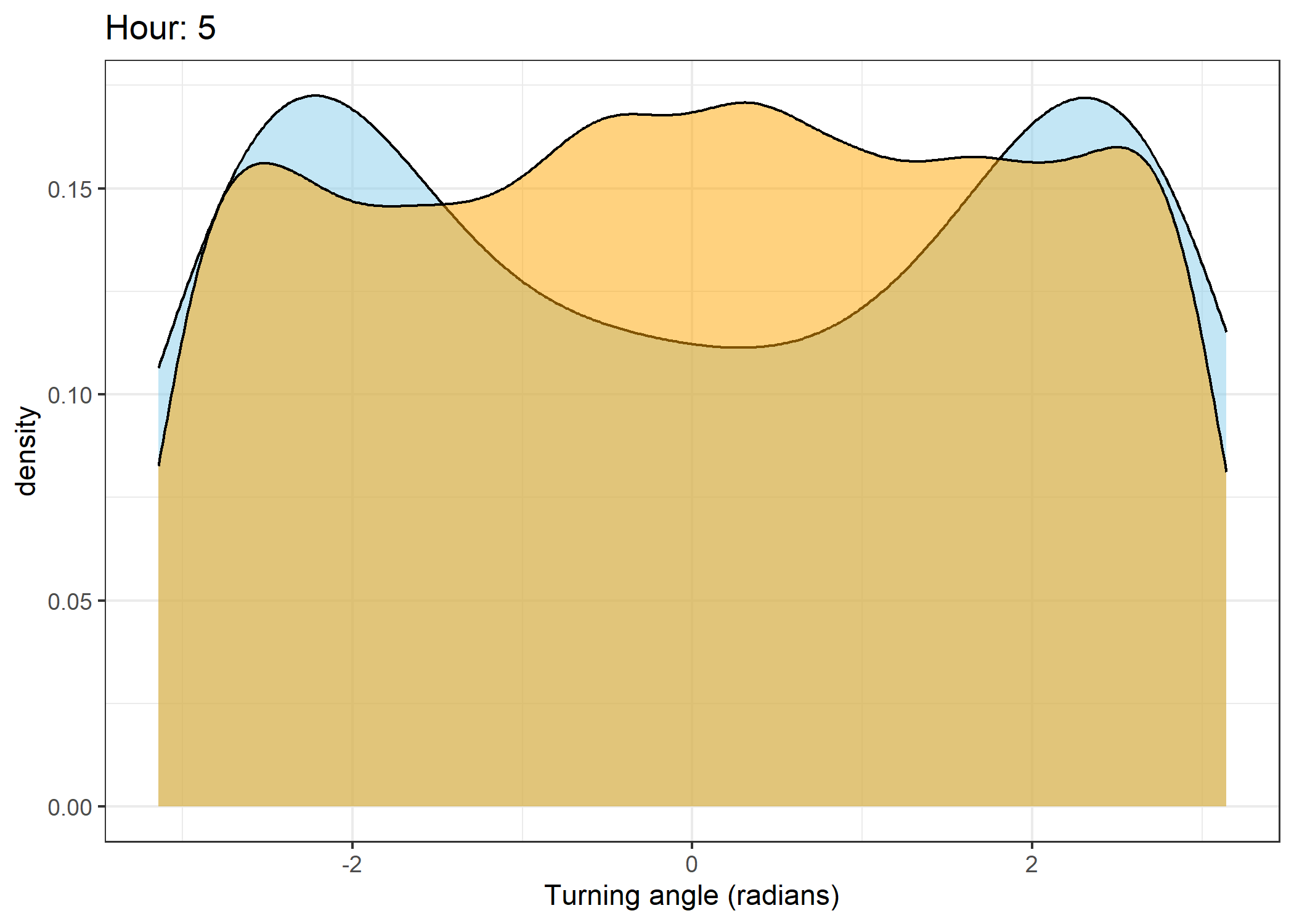

Density of turning angles for each hour

for(i in 0:23) {
  print(ggplot() +
    geom_density(data = all_data %>% filter(id == 2005 & hour_t1 == i),
           aes(x = ta),
           fill = "skyblue", colour = "black", alpha = 0.5) +
    geom_density(data = all_data %>% filter(!id == 2005 & hour_t1 == i),
                   aes(x = ta),
                 fill = "orange", colour = "black", alpha = 0.5) +
      scale_x_continuous("Turning angle (radians)", limits = c(-pi, pi)) +
      ggtitle(paste0("Hour: ", i)) +
    theme_bw())
}

Warning: Removed 50 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 1 row containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 1 row containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 50 rows containing non-finite outside the scale range
(`stat_density()`).

Extract covariate values

To check the distribution of environmental values, we can extract the values of the covariates at the locations of the observed and simulated data.

We also need to index the correct NDVI raster for each row of the data.

# for the simulated data
all_data_xy <- data.frame("x" = all_data$x1, "y" = all_data$y1)

# Calculate ndvi_index for all rows at once using vectorized operation
all_data <- all_data %>%
  mutate(
    ndvi_index = vapply(t1, function(t) which.min(abs(difftime(t, terra::time(ndvi)))), integer(1)),
    )

# Split row indices by the corresponding NDVI layer index
ndvi_groups <- split(seq_len(nrow(all_data_xy)), all_data$ndvi_index)

# Extract values per group in one call per layer
extracted_ndvi <- map2(ndvi_groups, names(ndvi_groups), function(rows, index_str) {
  # Convert the layer index from character to numeric if needed
  index <- as.numeric(index_str)
  terra::extract(ndvi[[index]], all_data_xy[rows, , drop = FALSE])[,2]
})

# Reassemble the extracted ndvi values into a single vector in original order
ndvi_values <- unsplit(extracted_ndvi, all_data$ndvi_index)

# Extract raster data based on calculated ndvi_index
all_data <- all_data %>%
  mutate(
    ndvi = ndvi_values,
    canopy_cover = terra::extract(canopy_cover, all_data_xy)[,2],
    veg_herby = terra::extract(veg_herby, all_data_xy)[,2],
    slope = terra::extract(slope, all_data_xy)[,2],
  )

Hourly movement behaviour and selection of covariates

Here we bin the trajectories into the hours of the day, and calculate the mean, median (where appropriate) and sd values for the step lengths and four habitat covariates.

We also save the results as a csv to compare between all of the models.

# there are some NA values in the hour_t1 column as well as the covariates
sum(is.na(all_data$hour_t1))

[1] 0

# drop NAs
all_data <- all_data %>% dplyr::select(-date, -time_diff) %>% drop_na()

hourly_habitat <-
  all_data %>%
  dplyr::group_by(hour_t1, id) %>%
    summarise(n = n(),
              step_length_mean = mean(sl, na.rm = TRUE),
              step_length_median = median(sl, na.rm = TRUE),
              step_length_sd = sd(sl, na.rm = TRUE),
              ndvi_mean = mean(ndvi, na.rm = TRUE),
              ndvi_median = median(ndvi, na.rm = TRUE),
              ndvi_sd = sd(ndvi, na.rm = TRUE),
              ndvi_min = min(ndvi, na.rm = TRUE),
              ndvi_max = max(ndvi, na.rm = TRUE),
              ndvi_mean = mean(ndvi, na.rm = TRUE),
              ndvi_median = median(ndvi, na.rm = TRUE),
              ndvi_sd = sd(ndvi, na.rm = TRUE),
              herby_mean = mean(veg_herby, na.rm = TRUE),
              herby_sd = sd(veg_herby, na.rm = TRUE),
              canopy_mean = mean(canopy_cover/100, na.rm = TRUE),
              canopy_sd = sd(canopy_cover/100, na.rm = TRUE),
              canopy_min = min(canopy_cover/100, na.rm = TRUE),
              canopy_max = max(canopy_cover/100, na.rm = TRUE),
              slope_mean = mean(slope, na.rm = TRUE),
              slope_median = median(slope, na.rm = TRUE),
              slope_sd = sd(slope, na.rm = TRUE),
              slope_min = min(slope, na.rm = TRUE),
              slope_max = max(slope, na.rm = TRUE)
              ) %>% ungroup() %>%
  mutate(Data = ifelse(id == 2005, "Observed", "deepSSF"))

`summarise()` has grouped output by 'hour_t1'. You can override using the
`.groups` argument.

Plotting the hourly habitat selection

hourly_habitat_long <- hourly_habitat %>%
  pivot_longer(cols = !c(Data, hour_t1, id), names_to = "variable", values_to = "value")

To show the stochasticity of the simulations, here we show the 25th to 50th quantiles and the 2.5th to 97.5th quantiles of the data. Remember that the `data’ are the means for each hour for each trajectory, so the quantiles are calculated across the means for each hour. We use a dashed-line ribbon for the 95% interval and a solid-line ribbon for the 50% interval. We show the mean as a solid line.

This is the plotting approach that we used in the paper.

Calculate the quantiles

# for all observed and simulated data
hourly_summary_quantiles <- hourly_habitat_long %>%
  dplyr::group_by(Data, hour_t1, variable) %>%
  summarise(n = n(),
            mean = mean(value, na.rm = TRUE),
            sd = sd(value, na.rm = TRUE),
            q025 = quantile(value, probs = 0.025, na.rm = TRUE),
            q25 = quantile(value, probs = 0.25, na.rm = TRUE),
            q50 = quantile(value, probs = 0.5, na.rm = TRUE),
            q75 = quantile(value, probs = 0.75, na.rm = TRUE),
            q975 = quantile(value, probs = 0.975, na.rm = TRUE))

`summarise()` has grouped output by 'Data', 'hour_t1'. You can override using
the `.groups` argument.

Summarise the background environmental covariates

ndvi_df <- ndvi_df %>% select(x,y,ndvi)

data_extent <- ext(plot_extent[[1]], plot_extent[[3]], plot_extent[[2]], plot_extent[[4]])

covariates_data_subset <- c(ndvi[[8]],
                            canopy_cover/100,
                            veg_herby,
                            slope) %>% terra::crop(data_extent)

covariates_data_subset_df <- as.data.frame(covariates_data_subset, xy = TRUE)

covariate_quantiles <- covariates_data_subset_df %>%
  summarise(
    ndvi_q025 = quantile(ndvi, probs = 0.025, na.rm = TRUE),
    ndvi_q25 = quantile(ndvi, probs = 0.25, na.rm = TRUE),
    ndvi_q50 = quantile(ndvi, probs = 0.5, na.rm = TRUE),
    ndvi_mean = mean(ndvi, na.rm = TRUE),
    ndvi_q75 = quantile(ndvi, probs = 0.75, na.rm = TRUE),
    ndvi_q975 = quantile(ndvi, probs = 0.975, na.rm = TRUE),
    canopy_q025 = quantile(canopy_cover, probs = 0.025, na.rm = TRUE),
    canopy_q25 = quantile(canopy_cover, probs = 0.25, na.rm = TRUE),
    canopy_q50 = quantile(canopy_cover, probs = 0.5, na.rm = TRUE),
    canopy_mean = mean(canopy_cover, na.rm = TRUE),
    canopy_q75 = quantile(canopy_cover, probs = 0.75, na.rm = TRUE),
    canopy_q975 = quantile(canopy_cover, probs = 0.975, na.rm = TRUE),
    veg_herby_q025 = quantile(veg_herby, probs = 0.025, na.rm = TRUE),
    veg_herby_q25 = quantile(veg_herby, probs = 0.25, na.rm = TRUE),
    veg_herby_q50 = quantile(veg_herby, probs = 0.5, na.rm = TRUE),
    veg_herby_mean = mean(veg_herby, na.rm = TRUE),
    veg_herby_q75 = quantile(veg_herby, probs = 0.75, na.rm = TRUE),
    veg_herby_q975 = quantile(veg_herby, probs = 0.975, na.rm = TRUE),
    slope_q025 = quantile(slope, probs = 0.025, na.rm = TRUE),
    slope_q25 = quantile(slope, probs = 0.25, na.rm = TRUE),
    slope_q50 = quantile(slope, probs = 0.5, na.rm = TRUE),
    slope_mean = mean(slope, na.rm = TRUE),
    slope_q75 = quantile(slope, probs = 0.75, na.rm = TRUE),
    slope_q975 = quantile(slope, probs = 0.975, na.rm = TRUE)
  )

covariate_summaries_hourly <- data.frame("hour_t1" = 23.5:24.5, covariate_quantiles[rep(1, 24), ])

Set up the plotting parameters

# set plotting parameters here that will change in each plot
buff_path_alpha <- 0.1
ribbon_95_alpha <- 0.5
ribbon_50_alpha <- 0.25
path_95_alpha <- 1

# set path alpha
buff_path_alpha <- 0.25

# linewidth
buff_path_linewidth <- 0.5

# Create color mapping
unique_groups <- unique(hourly_habitat_long$Data)
colors <- viridis(length(unique_groups))
names(colors) <- unique_groups
colors["Observed"] <- "skyblue"
colors["deepSSF"] <- "orange"

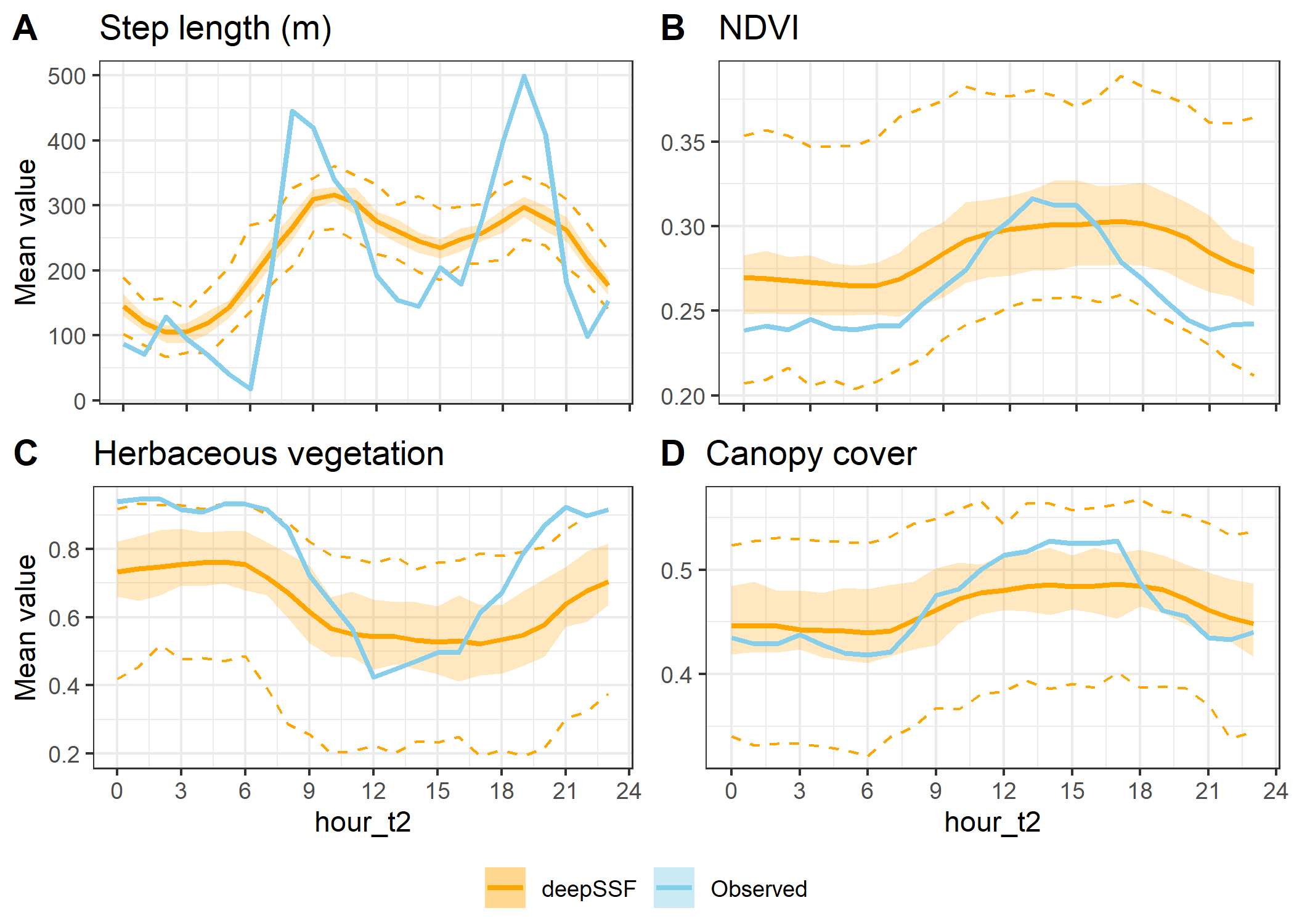

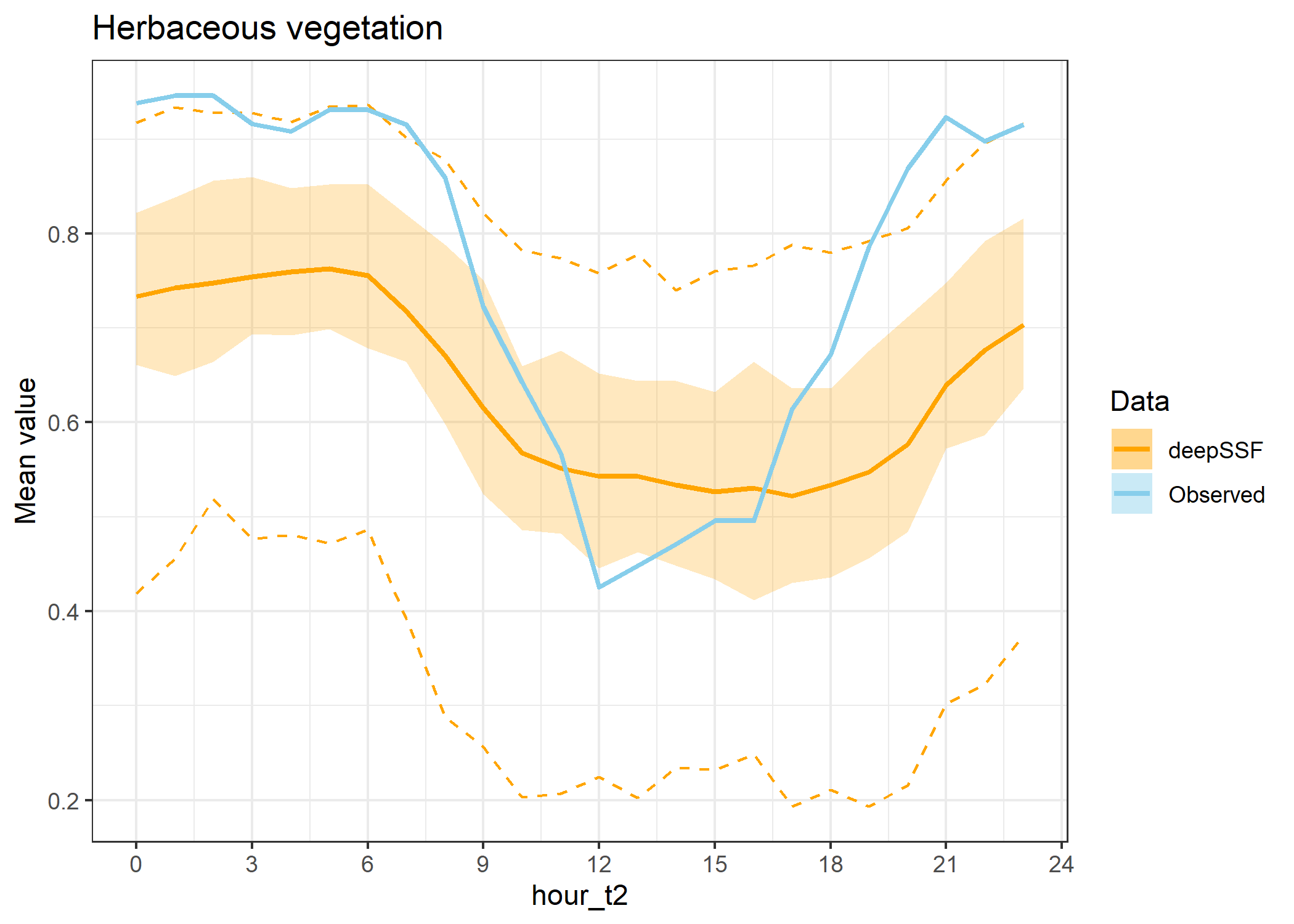

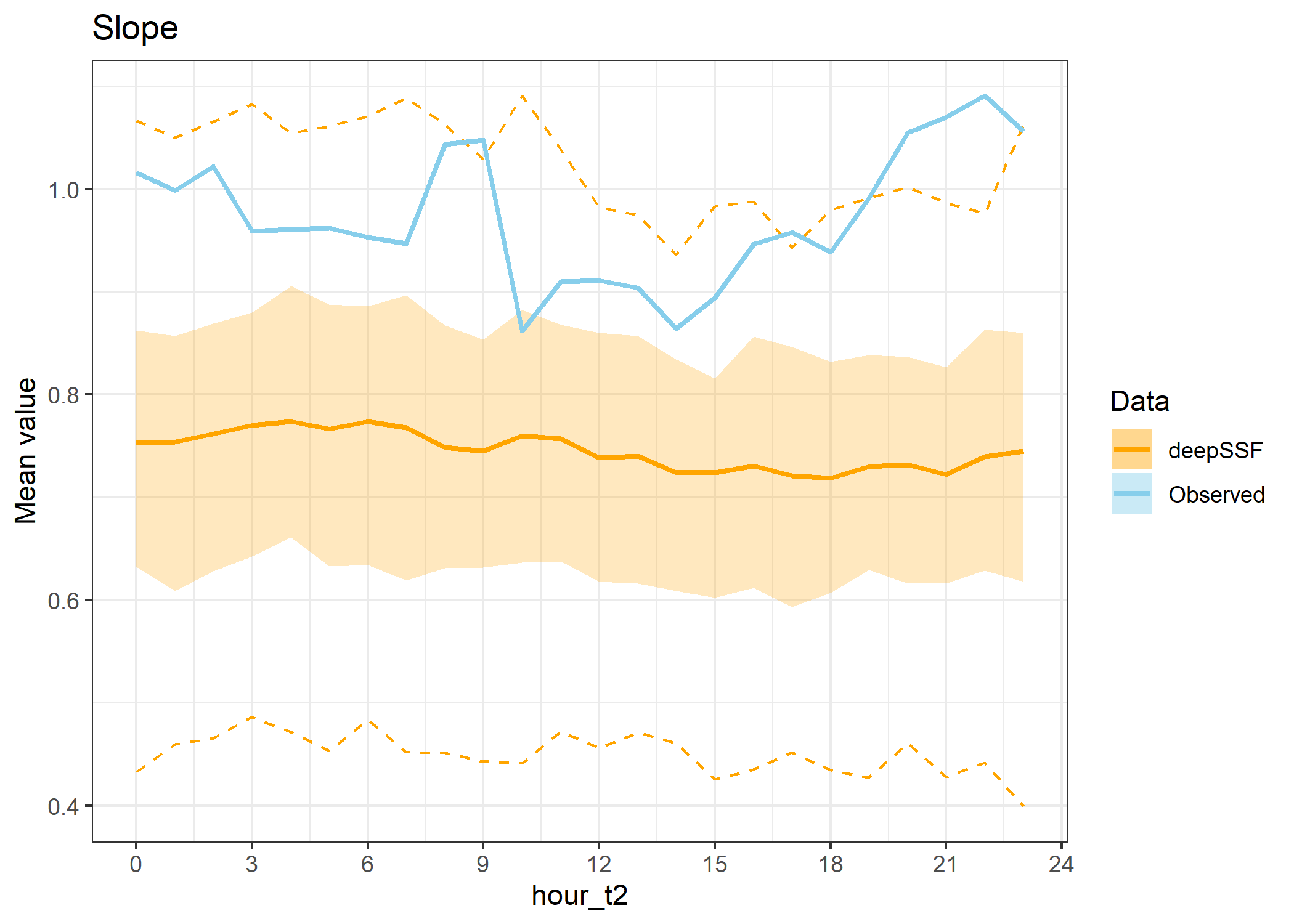

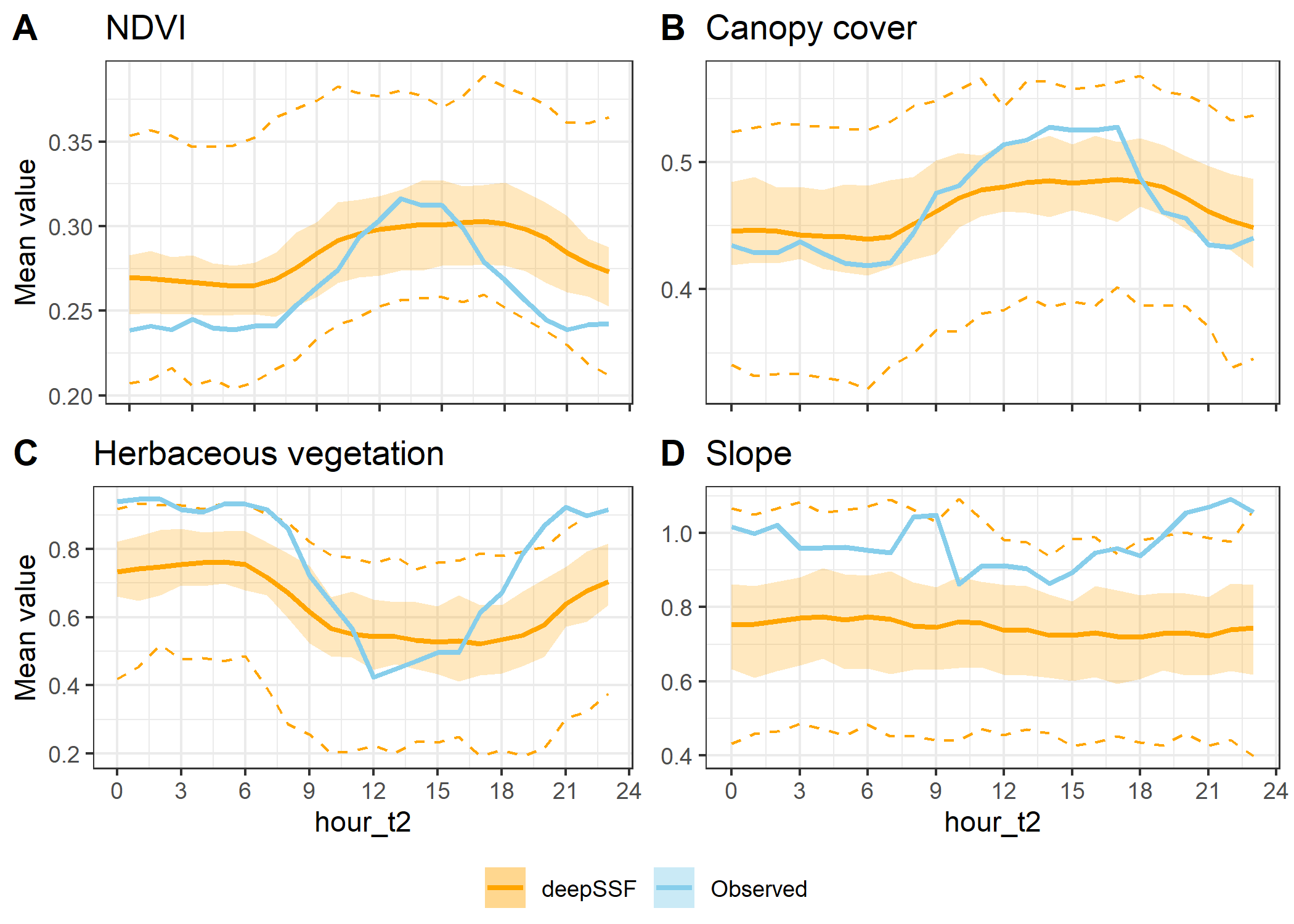

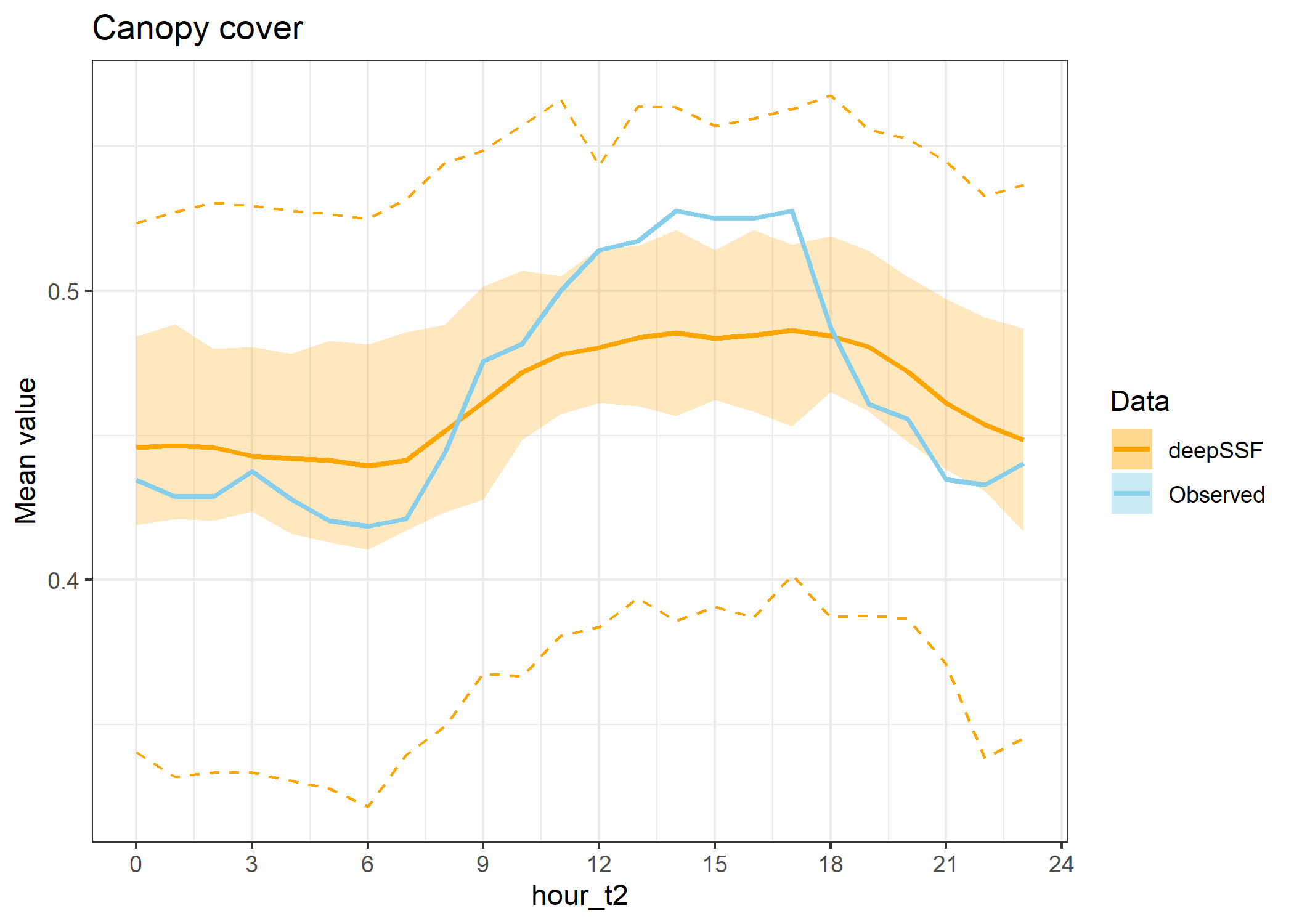

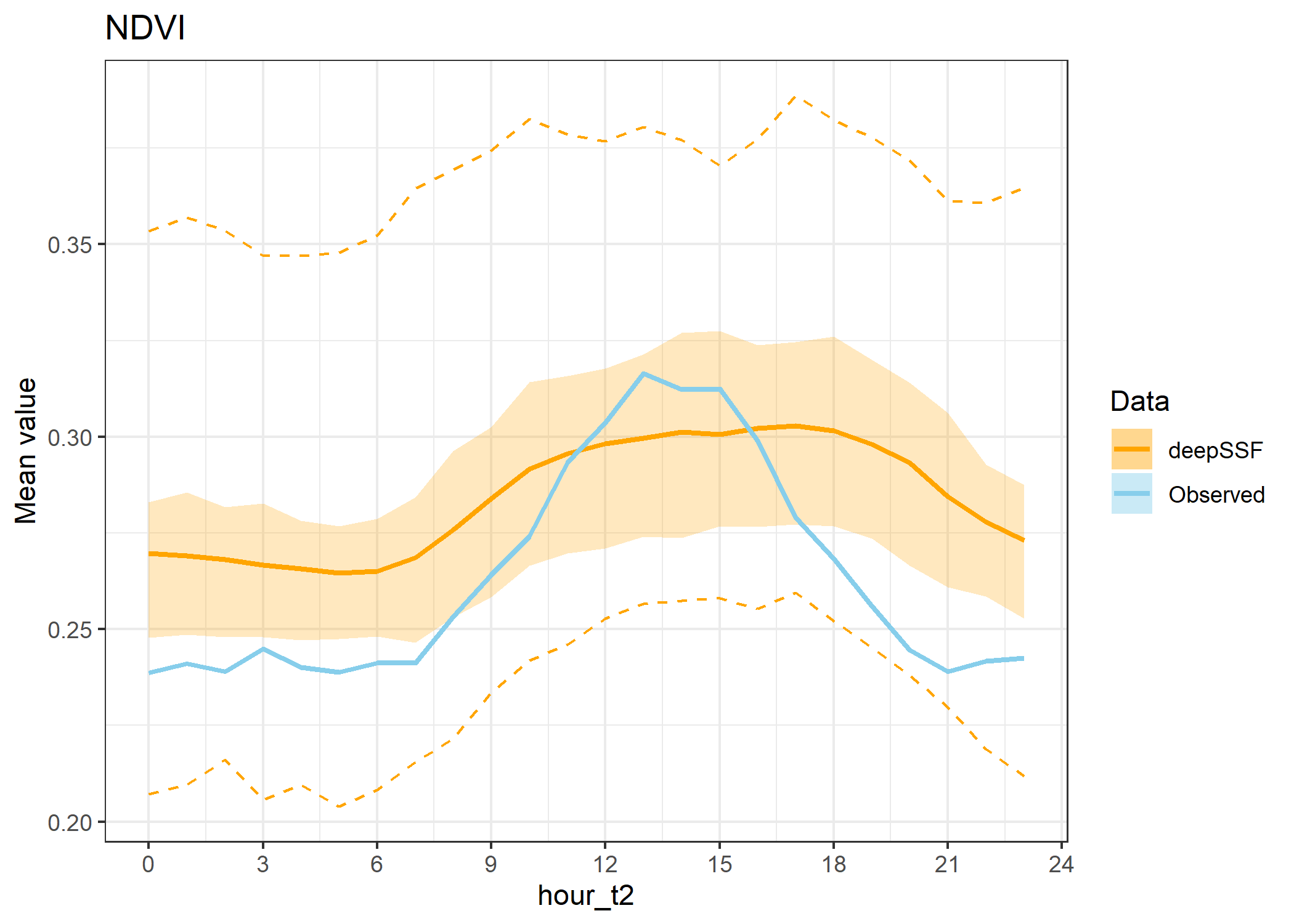

Hourly covariate selection

Note the tabs for the step lengths and each of the covariates

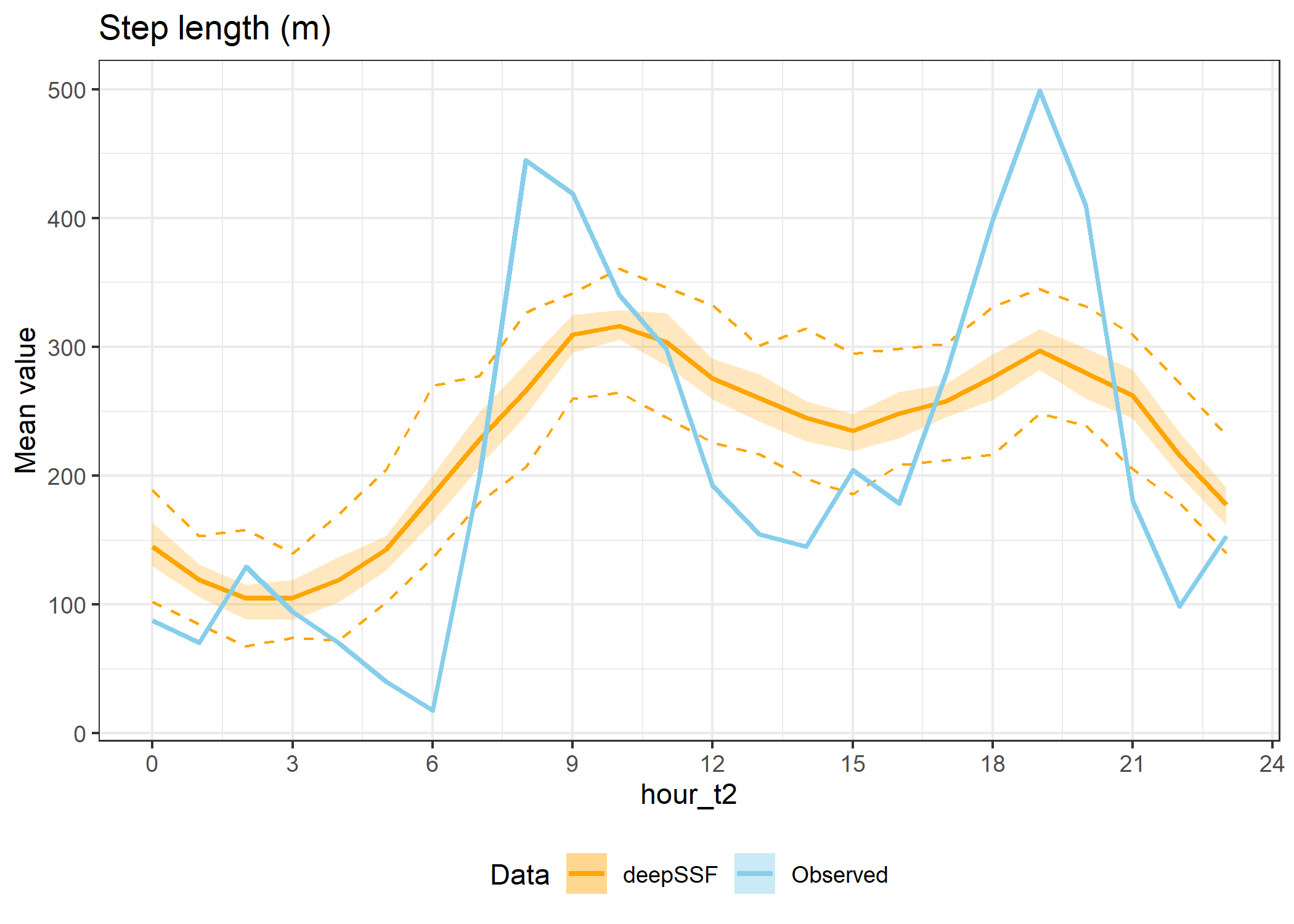

Mean step lengths

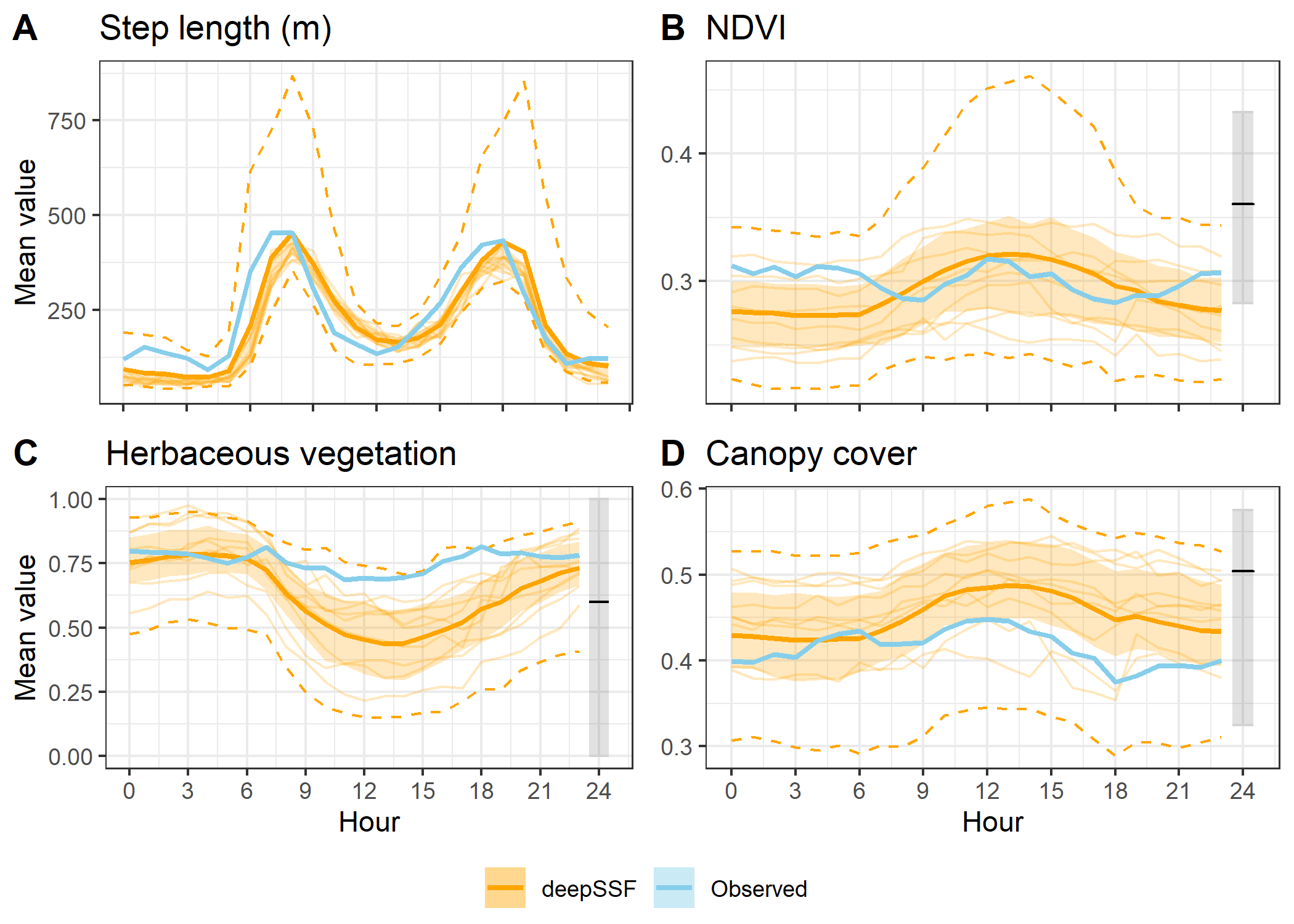

hourly_path_sl_plot <- ggplot() +

  geom_ribbon(data = hourly_summary_quantiles %>%
                filter(Data == "Buffalo" & variable == "step_length_mean"),
              aes(x = hour_t1, ymin = q25, ymax = q75, fill = Data),
              alpha = ribbon_50_alpha) +

  geom_ribbon(data = hourly_summary_quantiles %>%
                filter(!Data == "Buffalo" & variable == "step_length_mean"),
              aes(x = hour_t1, ymin = q25, ymax = q75, fill = Data),
              alpha = ribbon_50_alpha) +

  geom_path(data = hourly_habitat_long %>% filter(id < 10) %>%
              filter(!Data == "Buffalo" & variable == "step_length_mean"),
                 aes(x = hour_t1, y = value, colour = Data, group = interaction(id, Data)),
                 alpha = buff_path_alpha,
              linewidth = buff_path_linewidth) +

  geom_path(data = hourly_habitat_long %>%
              filter(Data == "Buffalo" & variable == "step_length_mean"),
                 aes(x = hour_t1, y = value, colour = Data, group = interaction(id, Data)),
                 alpha = buff_path_alpha,
              linewidth = buff_path_linewidth) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "step_length_mean"),
              aes(x = hour_t1, y = q025, colour = Data),
            linetype = "dashed",
              alpha = path_95_alpha) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "step_length_mean"),
              aes(x = hour_t1, y = q975, colour = Data),
            linetype = "dashed",
              alpha = path_95_alpha) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(Data == "Buffalo" & variable == "step_length_mean"),
              aes(x = hour_t1, y = mean, colour = Data),
              linewidth = 1) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "step_length_mean"),
              aes(x = hour_t1, y = mean, colour = Data),
              linewidth = 1) +

  scale_fill_manual(values = colors) +
  scale_colour_manual(values = colors) +
  scale_y_continuous("Mean value") +
  scale_x_continuous("Hour", breaks = seq(0,24,3)) +
  ggtitle("Step length (m)") +
  theme_bw() +
  theme(legend.position = "bottom")

hourly_path_sl_plot

NDVI

hourly_path_ndvi_plot <- ggplot() +

  geom_ribbon(data = covariate_summaries_hourly,
              aes(x = hour_t1, ymin = ndvi_q25, ymax = ndvi_q75),
              colour = "lightgrey", alpha = 0.15) +

  # geom_path(data = covariate_summaries_hourly,
  #           aes(x = hour_t1, y = ndvi_q025),
  #           colour = "black", linetype = "dashed") +
  #
  # geom_path(data = covariate_summaries_hourly,
  #           aes(x = hour_t1, y = ndvi_q975),
  #           colour = "black", linetype = "dashed") +

  geom_path(data = covariate_summaries_hourly,
            aes(x = hour_t1, y = ndvi_mean),
            colour = "black", linetype = "dashed") +

  geom_ribbon(data = hourly_summary_quantiles %>%
                filter(Data == "Buffalo" & variable == "ndvi_mean"),
              aes(x = hour_t1, ymin = q25, ymax = q75, fill = Data),
              alpha = ribbon_50_alpha) +

  geom_ribbon(data = hourly_summary_quantiles %>%
                filter(!Data == "Buffalo" & variable == "ndvi_mean"),
              aes(x = hour_t1, ymin = q25, ymax = q75, fill = Data),
              alpha = ribbon_50_alpha) +


  geom_path(data = hourly_habitat_long %>% filter(id < 10) %>%
              filter(!Data == "Buffalo" & variable == "ndvi_mean"),
                 aes(x = hour_t1, y = value, colour = Data, group = interaction(id, Data)),
                 alpha = buff_path_alpha,
              linewidth = buff_path_linewidth) +


  geom_path(data = hourly_habitat_long %>%
              filter(Data == "Buffalo" & variable == "ndvi_mean"),
                 aes(x = hour_t1, y = value, colour = Data, group = interaction(id, Data)),
                 alpha = buff_path_alpha,
              linewidth = buff_path_linewidth) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "ndvi_mean"),
              aes(x = hour_t1, y = q025, colour = Data),
            linetype = "dashed",
              alpha = path_95_alpha) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "ndvi_mean"),
              aes(x = hour_t1, y = q975, colour = Data),
            linetype = "dashed",
              alpha = path_95_alpha) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(Data == "Buffalo" & variable == "ndvi_mean"),
              aes(x = hour_t1, y = mean, colour = Data),
              linewidth = 1) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "ndvi_mean"),
              aes(x = hour_t1, y = mean, colour = Data),
              linewidth = 1) +

  scale_fill_manual(values = colors) +
  scale_colour_manual(values = colors) +
  scale_y_continuous("Mean value") +
  scale_x_continuous("Hour", breaks = seq(0,24,3)) +
  ggtitle("NDVI") +
  theme_bw()

hourly_path_ndvi_plot

Canopy cover

hourly_path_canopy_plot <- ggplot() +

  geom_ribbon(data = covariate_summaries_hourly,
              aes(x = hour_t1, ymin = canopy_q25, ymax = canopy_q75),
              colour = "lightgrey", alpha = 0.15) +

  # geom_path(data = covariate_summaries_hourly,
  #           aes(x = hour_t1, y = canopy_q025),
  #           colour = "grey", linetype = "dashed") +
  #
  # geom_path(data = covariate_summaries_hourly,
  #           aes(x = hour_t1, y = canopy_q975),
  #           colour = "grey", linetype = "dashed") +

  geom_path(data = covariate_summaries_hourly,
            aes(x = hour_t1, y = canopy_mean),
            colour = "black", linetype = "dashed") +

  geom_ribbon(data = hourly_summary_quantiles %>%
                filter(Data == "Buffalo" & variable == "canopy_mean"),
              aes(x = hour_t1, ymin = q25, ymax = q75, fill = Data),
              alpha = ribbon_50_alpha) +

  geom_ribbon(data = hourly_summary_quantiles %>%
                filter(!Data == "Buffalo" & variable == "canopy_mean"),
              aes(x = hour_t1, ymin = q25, ymax = q75, fill = Data),
              alpha = ribbon_50_alpha) +

  geom_path(data = hourly_habitat_long %>% filter(id < 10) %>%
              filter(!Data == "Buffalo" & variable == "canopy_mean"),
                 aes(x = hour_t1, y = value, colour = Data, group = interaction(id, Data)),
                 alpha = buff_path_alpha,
              linewidth = buff_path_linewidth) +

  geom_path(data = hourly_habitat_long %>%
              filter(Data == "Buffalo" & variable == "canopy_mean"),
                 aes(x = hour_t1, y = value, colour = Data, group = interaction(id, Data)),
                 alpha = buff_path_alpha,
              linewidth = buff_path_linewidth) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "canopy_mean"),
              aes(x = hour_t1, y = q025, colour = Data),
            linetype = "dashed",
              alpha = path_95_alpha) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "canopy_mean"),
              aes(x = hour_t1, y = q975, colour = Data),
            linetype = "dashed",
              alpha = path_95_alpha) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(Data == "Buffalo" & variable == "canopy_mean"),
              aes(x = hour_t1, y = mean, colour = Data),
              linewidth = 1) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "canopy_mean"),
              aes(x = hour_t1, y = mean, colour = Data),
              linewidth = 1) +

  scale_fill_manual(values = colors) +
  scale_colour_manual(values = colors) +
  scale_y_continuous("Mean value") +
  scale_x_continuous("Hour", breaks = seq(0,24,3)) +
  ggtitle("Canopy cover") +
  theme_bw()

hourly_path_canopy_plot

Herbaceous vegetation

hourly_path_herby_plot <- ggplot() +

  geom_ribbon(data = covariate_summaries_hourly,
              aes(x = hour_t1, ymin = veg_herby_q25, ymax = veg_herby_q75),
              colour = "lightgrey", alpha = 0.15) +

  # geom_path(data = covariate_summaries_hourly,
  #           aes(x = hour_t1, y = veg_herby_q025),
  #           colour = "grey", linetype = "dashed") +
  #
  # geom_path(data = covariate_summaries_hourly,
  #           aes(x = hour_t1, y = veg_herby_q975),
  #           colour = "grey", linetype = "dashed") +

  geom_path(data = covariate_summaries_hourly,
            aes(x = hour_t1, y = veg_herby_mean),
            colour = "black", linetype = "dashed") +

  geom_ribbon(data = hourly_summary_quantiles %>%
                filter(Data == "Buffalo" & variable == "herby_mean"),
              aes(x = hour_t1, ymin = q25, ymax = q75, fill = Data),
              alpha = ribbon_50_alpha) +

  geom_ribbon(data = hourly_summary_quantiles %>%
                filter(!Data == "Buffalo" & variable == "herby_mean"),
              aes(x = hour_t1, ymin = q25, ymax = q75, fill = Data),
              alpha = ribbon_50_alpha) +

  geom_path(data = hourly_habitat_long %>% filter(id < 10) %>%
              filter(!Data == "Buffalo" & variable == "herby_mean"),
                 aes(x = hour_t1, y = value, colour = Data, group = interaction(id, Data)),
                 alpha = buff_path_alpha,
              linewidth = buff_path_linewidth) +

  geom_path(data = hourly_habitat_long %>%
              filter(Data == "Buffalo" & variable == "herby_mean"),
                 aes(x = hour_t1, y = value, colour = Data, group = interaction(id, Data)),
                 alpha = buff_path_alpha,
              linewidth = buff_path_linewidth) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "herby_mean"),
              aes(x = hour_t1, y = q025, colour = Data),
            linetype = "dashed",
              alpha = path_95_alpha) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "herby_mean"),
              aes(x = hour_t1, y = q975, colour = Data),
            linetype = "dashed",
              alpha = path_95_alpha) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(Data == "Buffalo" & variable == "herby_mean"),
              aes(x = hour_t1, y = mean, colour = Data),
              linewidth = 1) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "herby_mean"),
              aes(x = hour_t1, y = mean, colour = Data),
              linewidth = 1) +

  scale_fill_manual(values = colors) +
  scale_colour_manual(values = colors) +
  scale_y_continuous("Mean value") +
  scale_x_continuous("Hour", breaks = seq(0,24,3)) +
  ggtitle("Herbaceous vegetation") +
  theme_bw()

hourly_path_herby_plot

Slope

hourly_path_slope_plot <- ggplot() +

  geom_ribbon(data = covariate_summaries_hourly,
              aes(x = hour_t1, ymin = slope_q25, ymax = slope_q75),
              colour = "lightgrey", alpha = 0.15) +

  # geom_path(data = covariate_summaries_hourly,
  #           aes(x = hour_t1, y = slope_q025),
  #           colour = "grey", linetype = "dashed") +
  #
  # geom_path(data = covariate_summaries_hourly,
  #           aes(x = hour_t1, y = slope_q975),
  #           colour = "grey", linetype = "dashed") +

  geom_path(data = covariate_summaries_hourly,
            aes(x = hour_t1, y = slope_mean),
            colour = "black", linetype = "dashed") +

  geom_ribbon(data = hourly_summary_quantiles %>%
                filter(Data == "Buffalo" & variable == "slope_mean"),
              aes(x = hour_t1, ymin = q25, ymax = q75, fill = Data),
              alpha = ribbon_50_alpha) +

  geom_ribbon(data = hourly_summary_quantiles %>%
                filter(!Data == "Buffalo" & variable == "slope_mean"),
              aes(x = hour_t1, ymin = q25, ymax = q75, fill = Data),
              alpha = ribbon_50_alpha) +

  geom_path(data = hourly_habitat_long %>% filter(id < 10) %>%
              filter(!Data == "Buffalo" & variable == "slope_mean"),
                 aes(x = hour_t1, y = value, colour = Data, group = interaction(id, Data)),
                 alpha = buff_path_alpha,
              linewidth = buff_path_linewidth) +

  geom_path(data = hourly_habitat_long %>%
              filter(Data == "Buffalo" & variable == "slope_mean"),
                 aes(x = hour_t1, y = value, colour = Data, group = interaction(id, Data)),
                 alpha = buff_path_alpha,
              linewidth = buff_path_linewidth) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "slope_mean"),
              aes(x = hour_t1, y = q025, colour = Data),
            linetype = "dashed",
              alpha = path_95_alpha) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "slope_mean"),
              aes(x = hour_t1, y = q975, colour = Data),
            linetype = "dashed",
              alpha = path_95_alpha) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(Data == "Buffalo" & variable == "slope_mean"),
              aes(x = hour_t1, y = mean, colour = Data),
              linewidth = 1) +

  geom_path(data = hourly_summary_quantiles %>%
              filter(!Data == "Buffalo" & variable == "slope_mean"),
              aes(x = hour_t1, y = mean, colour = Data),
              linewidth = 1) +

  scale_fill_manual(values = colors) +
  scale_colour_manual(values = colors) +
  scale_y_continuous("Mean value") +
  scale_x_continuous("Hour", breaks = seq(0,24,3)) +
  ggtitle("Slope") +
  theme_bw()

hourly_path_slope_plot

Combining the hourly plots

ggarrange(step_lengths_stationary,

          step_lengths_log,

          # hourly_path_herby_plot,
          #
          # hourly_path_canopy_plot +
          #   theme(axis.title.y = element_blank()),

          labels = c("A", "B"),
          ncol = 1, nrow = 2,
          legend = "bottom",
          common.legend = TRUE)

Warning: Removed 147 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 3703 rows containing non-finite outside the scale range
(`stat_density()`).

Warning in scale_x_log10("log Step length (m)"): log-10 transformation
introduced infinite values.

Warning: Removed 51 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 147 rows containing non-finite outside the scale range
(`stat_density()`).

Warning: Removed 3703 rows containing non-finite outside the scale range
(`stat_density()`).

Warning in scale_x_log10("log Step length (m)"): log-10 transformation
introduced infinite values.

Warning: Removed 51 rows containing non-finite outside the scale range
(`stat_density()`).

ggsave(paste0("Python/outputs/model_training/",deepSSF_dir,"/step_lengths_stat_log.png"), width=170, height=150, units="mm", dpi = 600)

Step lengths instead of slope

ggarrange(hourly_path_sl_plot +
            theme(axis.title.x = element_blank(),
                  axis.text.x = element_blank(),
                  legend.title = element_blank()),

          hourly_path_ndvi_plot +
            theme(axis.title.x = element_blank(),
                  axis.text.x = element_blank(),
                  axis.title.y = element_blank()),

          hourly_path_herby_plot,

          hourly_path_canopy_plot +
            theme(axis.title.y = element_blank()),

          labels = c("A", "B", "C", "D"),
          ncol = 2, nrow = 2,
          legend = "bottom",
          common.legend = TRUE)

ggsave(paste0("Python/outputs/model_training/",deepSSF_dir,"/hourly_summaries_step.png"), width=180, height=150, units="mm", dpi = 600)

Slope instead of step lengths

ggarrange(hourly_path_ndvi_plot +
            theme(axis.title.x = element_blank(),
                  axis.text.x = element_blank(),
                  legend.title = element_blank()),

          hourly_path_canopy_plot +
            theme(axis.title.x = element_blank(),
                  axis.text.x = element_blank(),
                  axis.title.y = element_blank()),

          hourly_path_herby_plot,

          hourly_path_slope_plot +
            theme(axis.title.y = element_blank()),

          labels = c("A", "B", "C", "D"),
          ncol = 2, nrow = 2,
          legend = "bottom",
          common.legend = TRUE)

ggsave(paste0("Python/outputs/model_training/",deepSSF_dir,"/hourly_summaries.png"), width=180, height=150, units="mm", dpi = 600)
